Bigtreetech PI V1.2 for RaspberryPi 3D Printer

RM159.99

1 in stock

Compare
SKU: BTT-PI-V1.2 Categories: , ,

🔥 All are ready stock in Sungai besi office & ship within 24 hours* (Except for non working day, but do call us to check)

🔥 Select Others (West Malaysia) as shipment if you’d like to opt for self-pickup/by delivery services (Lalamove, Grab, etc ). Contact us after placed order.etc ).

🔥 For KL same day delivery, Please contact us if you’d like to opt for self-pickup/by delivery services (Lalamove, Grab, etc ). Buyers will have to bear the delivery cost and set our Sungai Besi office as pick up point. Do check with us before you purchase as we may not be available.

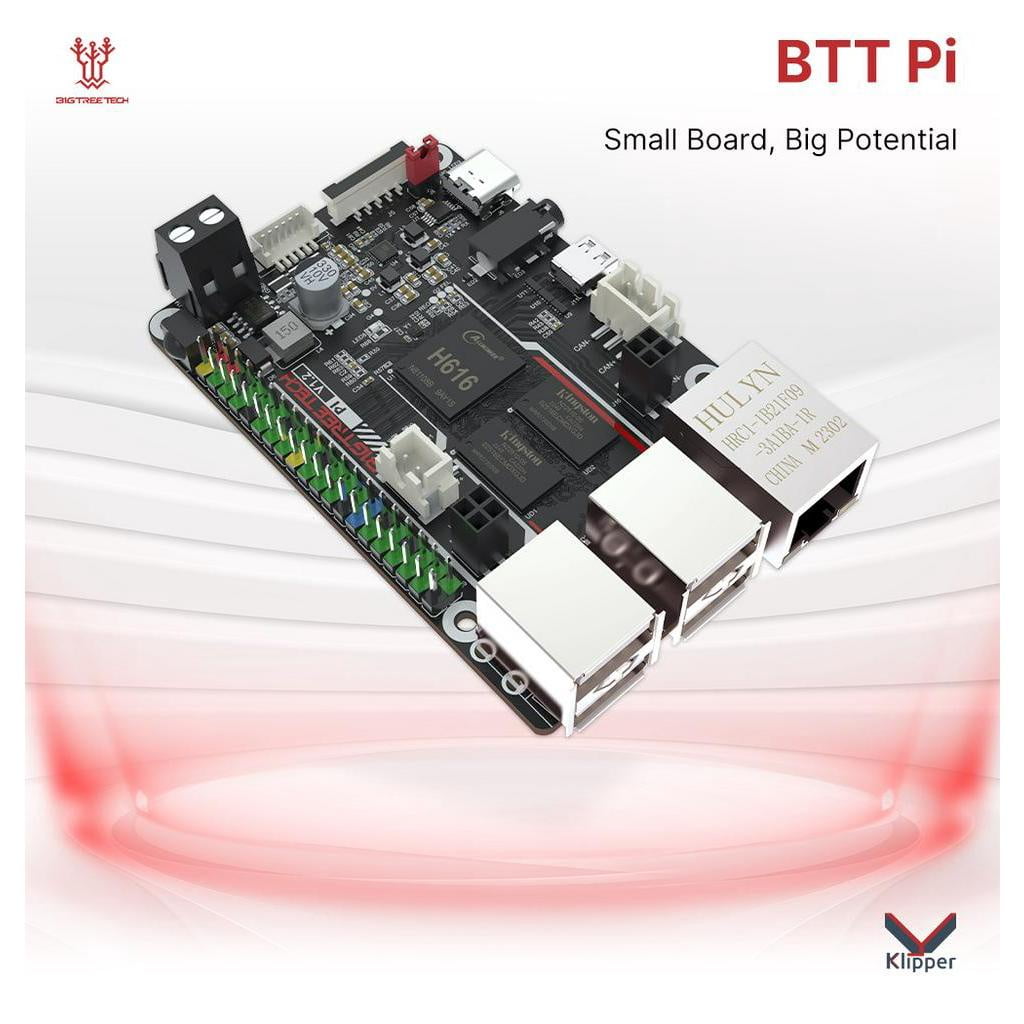

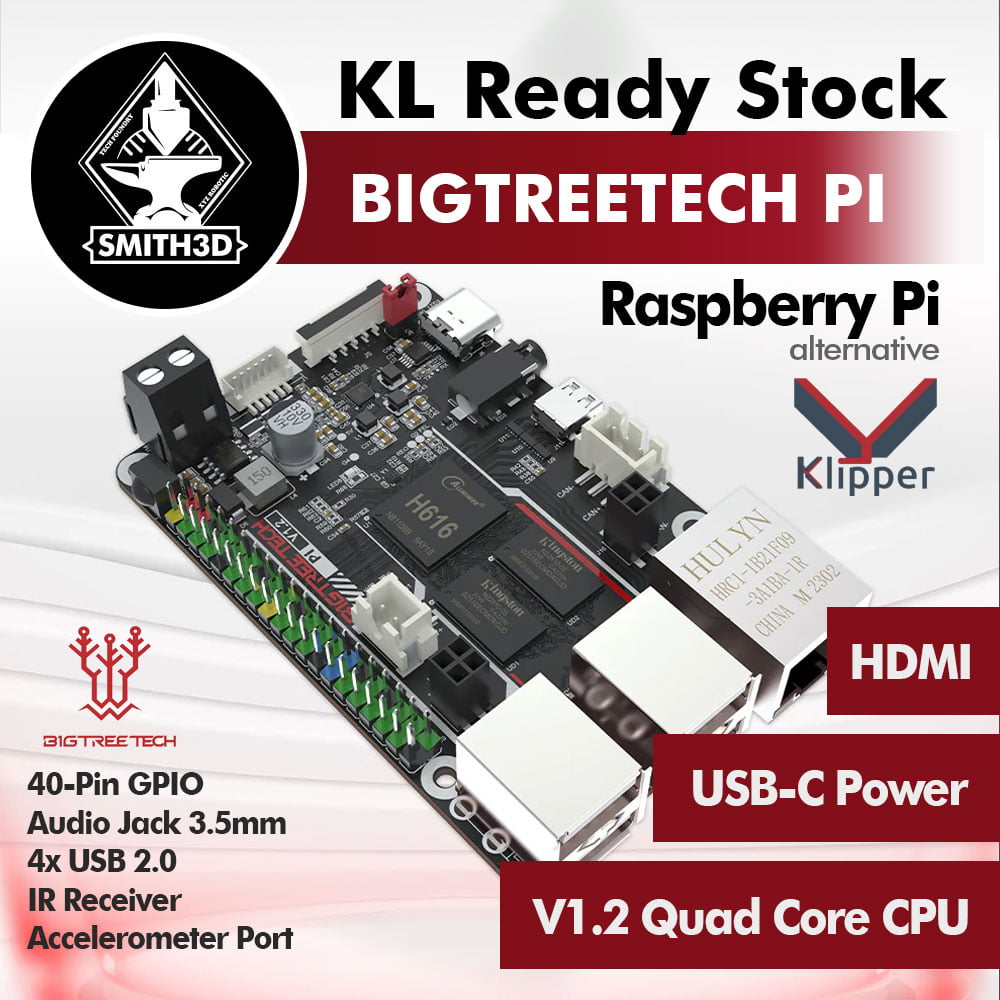

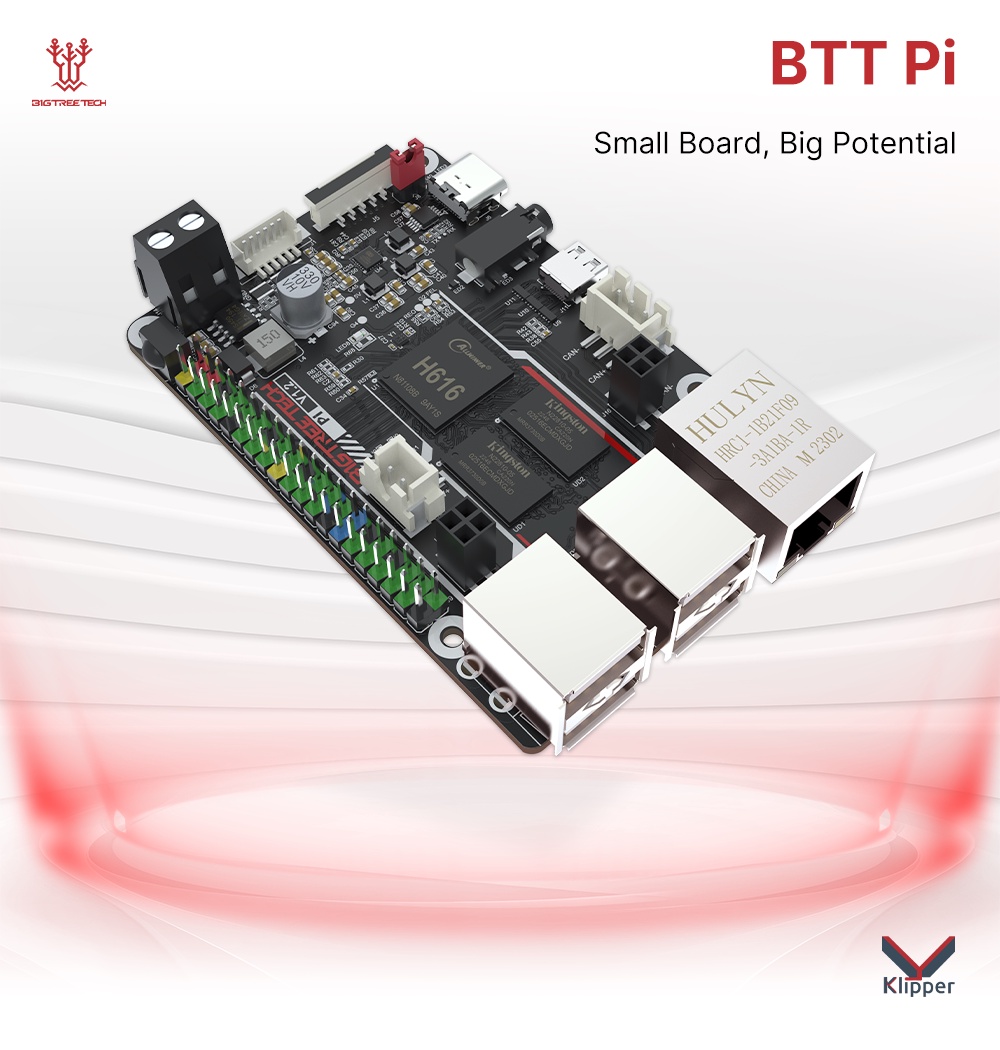

The BIGTREETECH Pi v1.2 board is a collaboration between Bigtreetech and Klipper. It has the same size and location of mounting holes as Raspberry Pi.

Strengths of the BTT Pi V1.2 board:

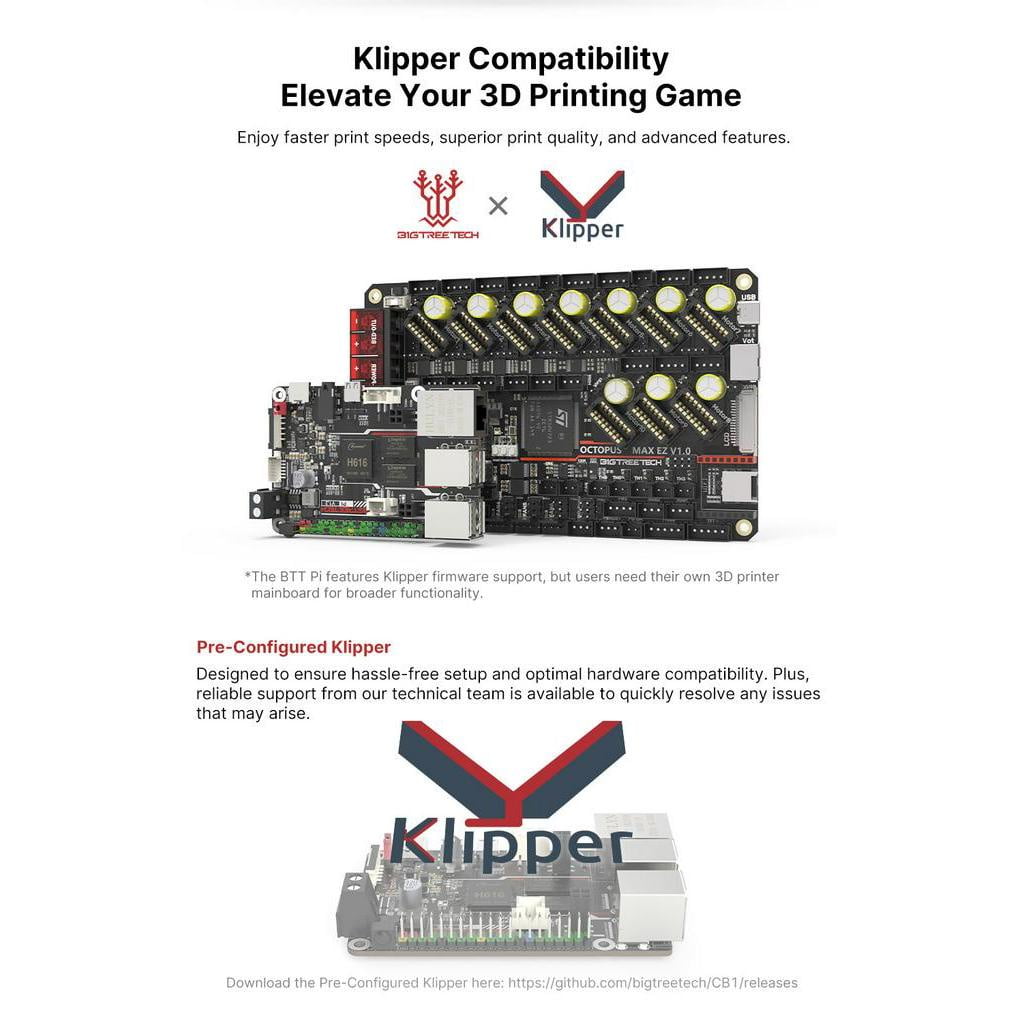

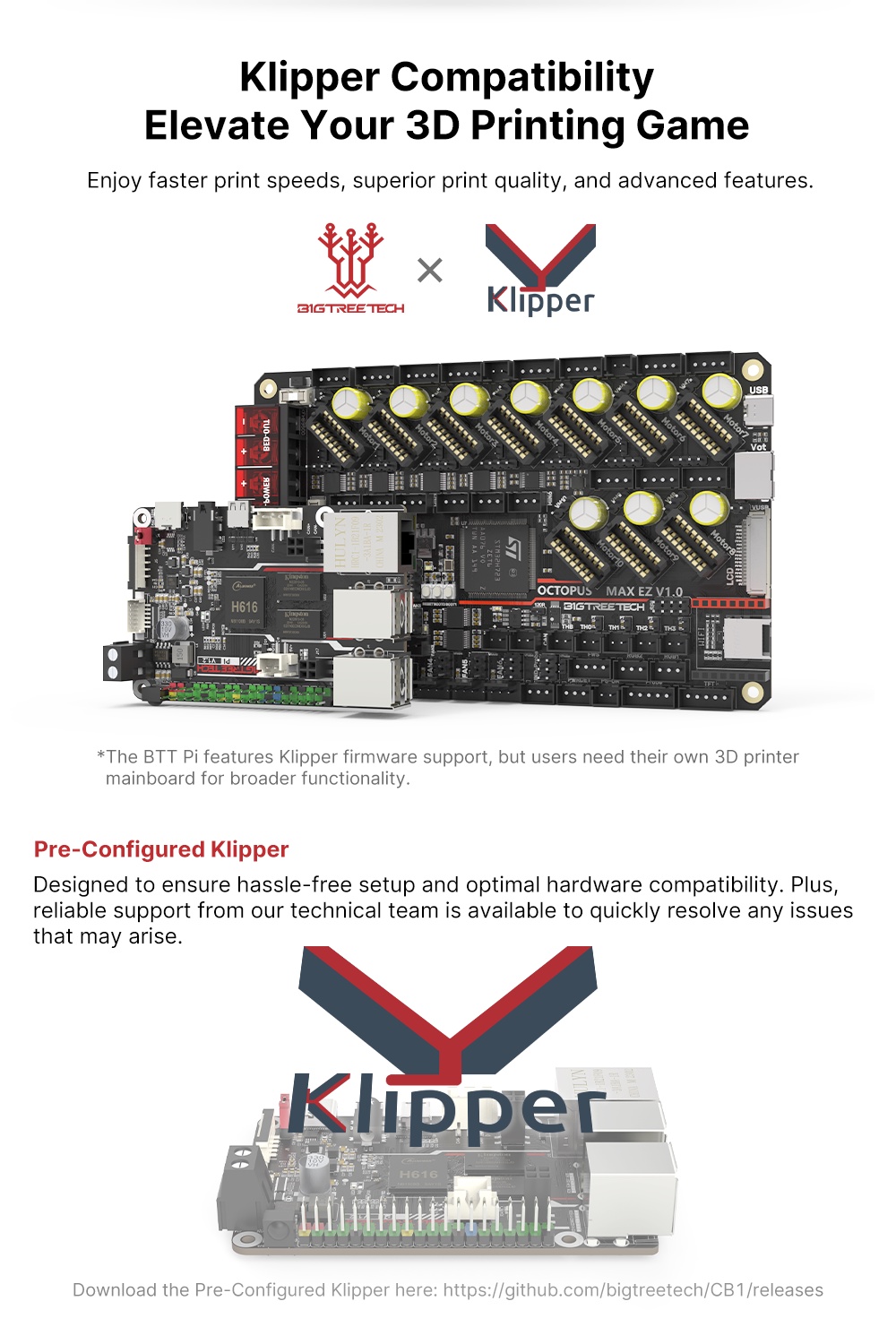

Klipper pre-configured to start printing right away
Ability to work with a 3D cloud printer app

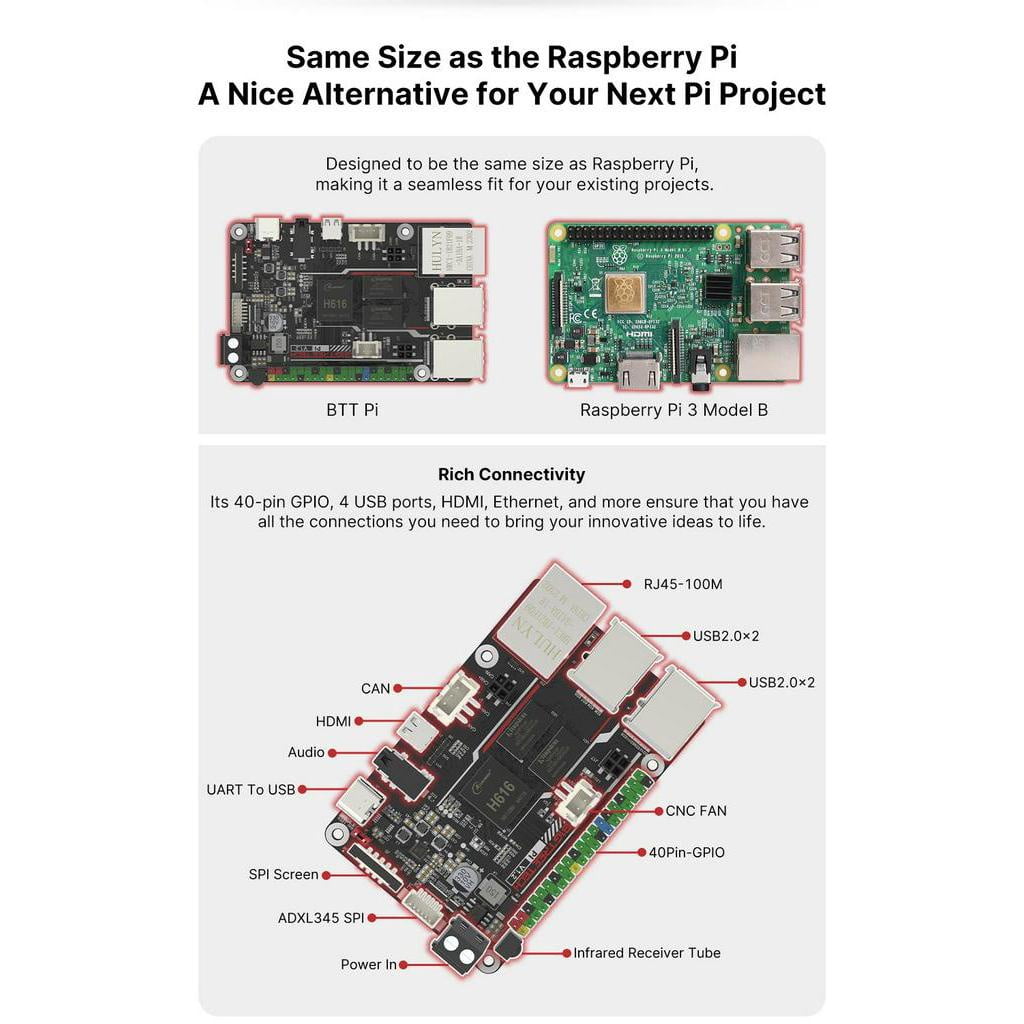

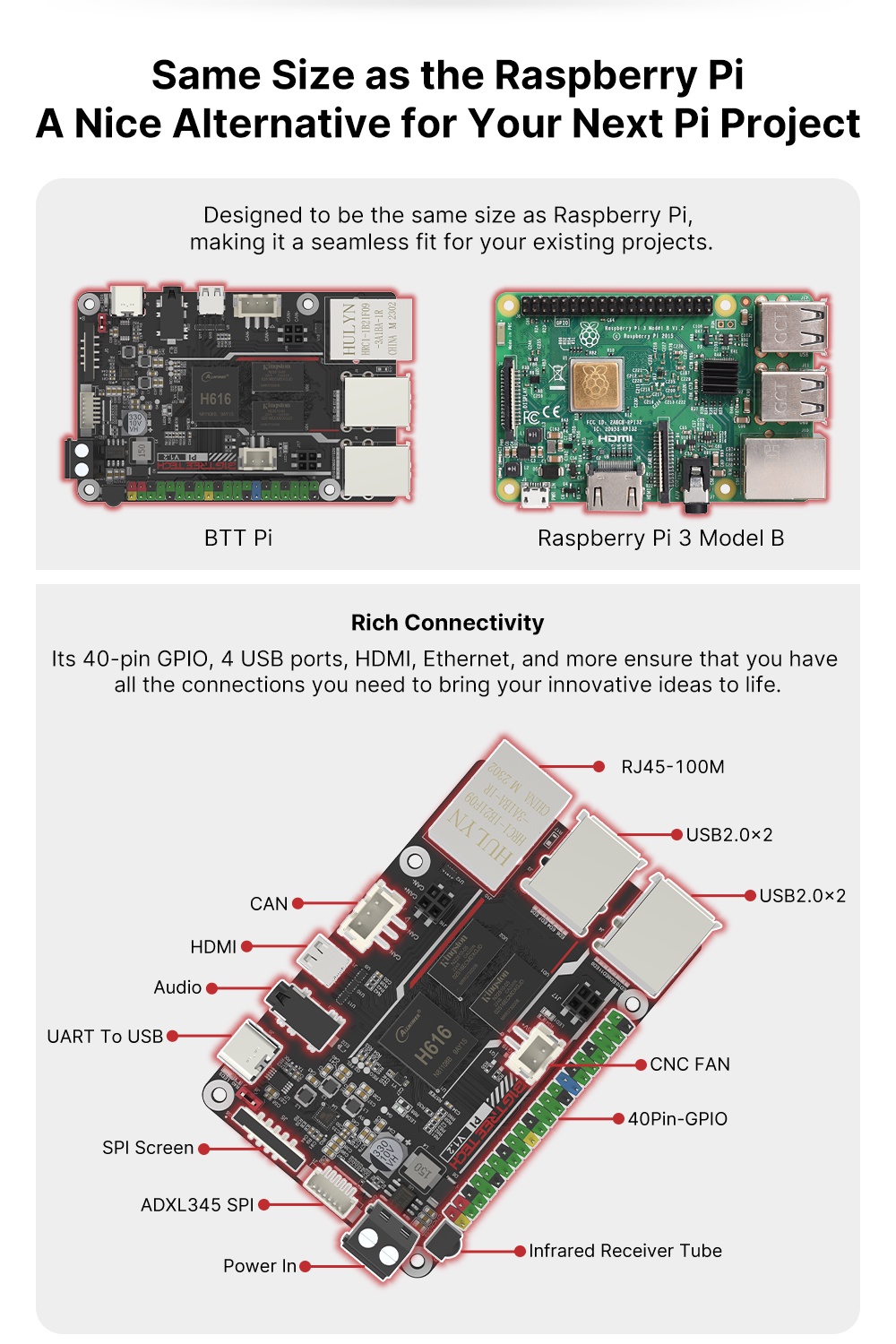

Same size as a Raspberry Pi 3 model B

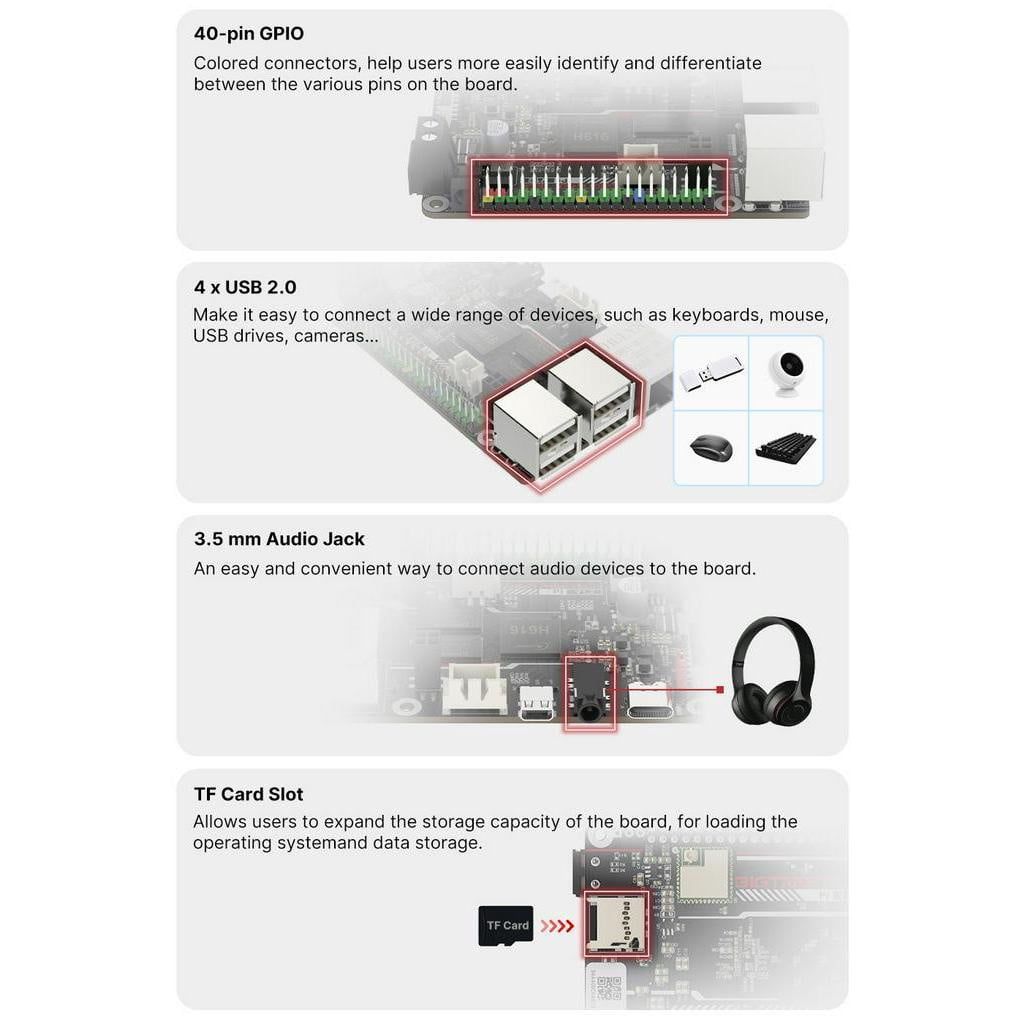

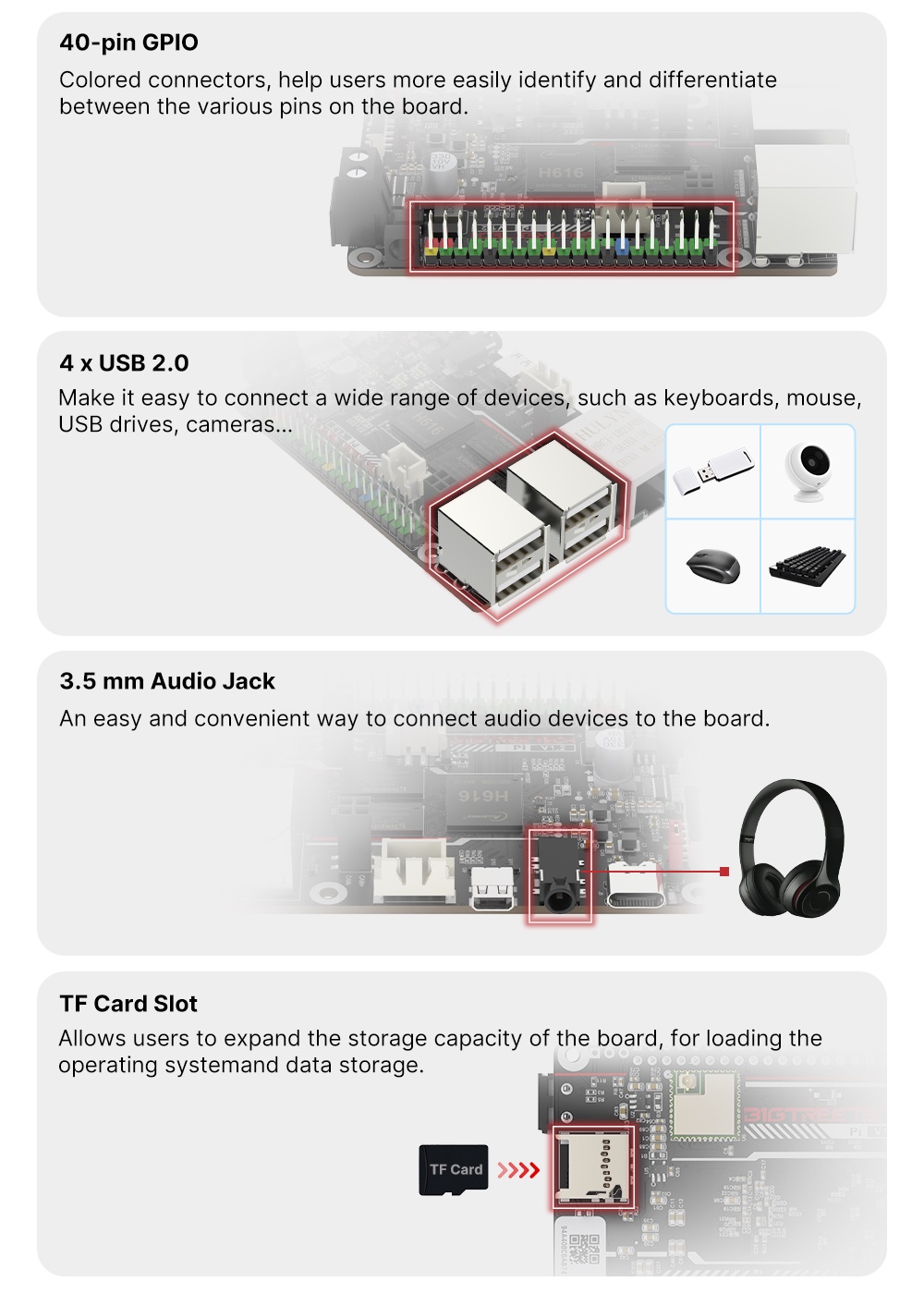

A wide range of connections with 40-pin GPIO, 4 USB ports, HDMI port and Ethernet port
Can be used for many applications, not only for 3d printing, but also for gaming, smart homes, IoT products

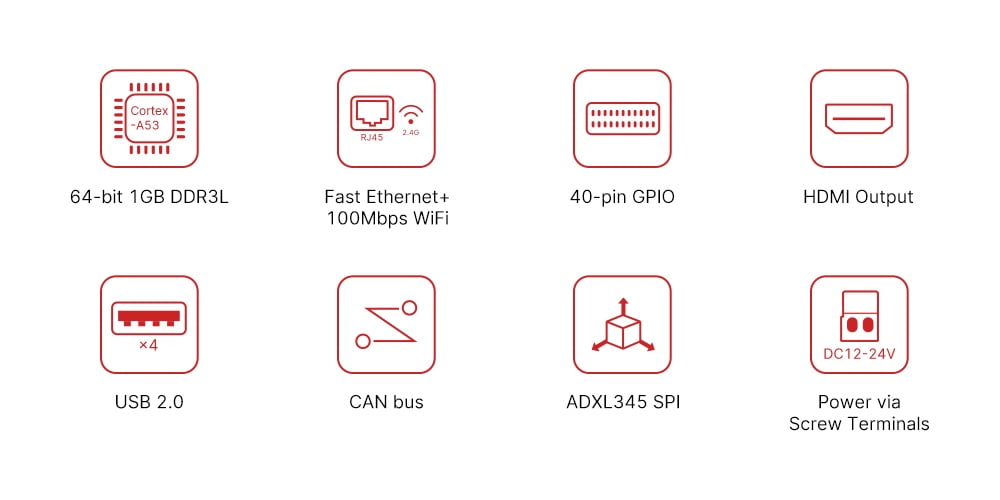

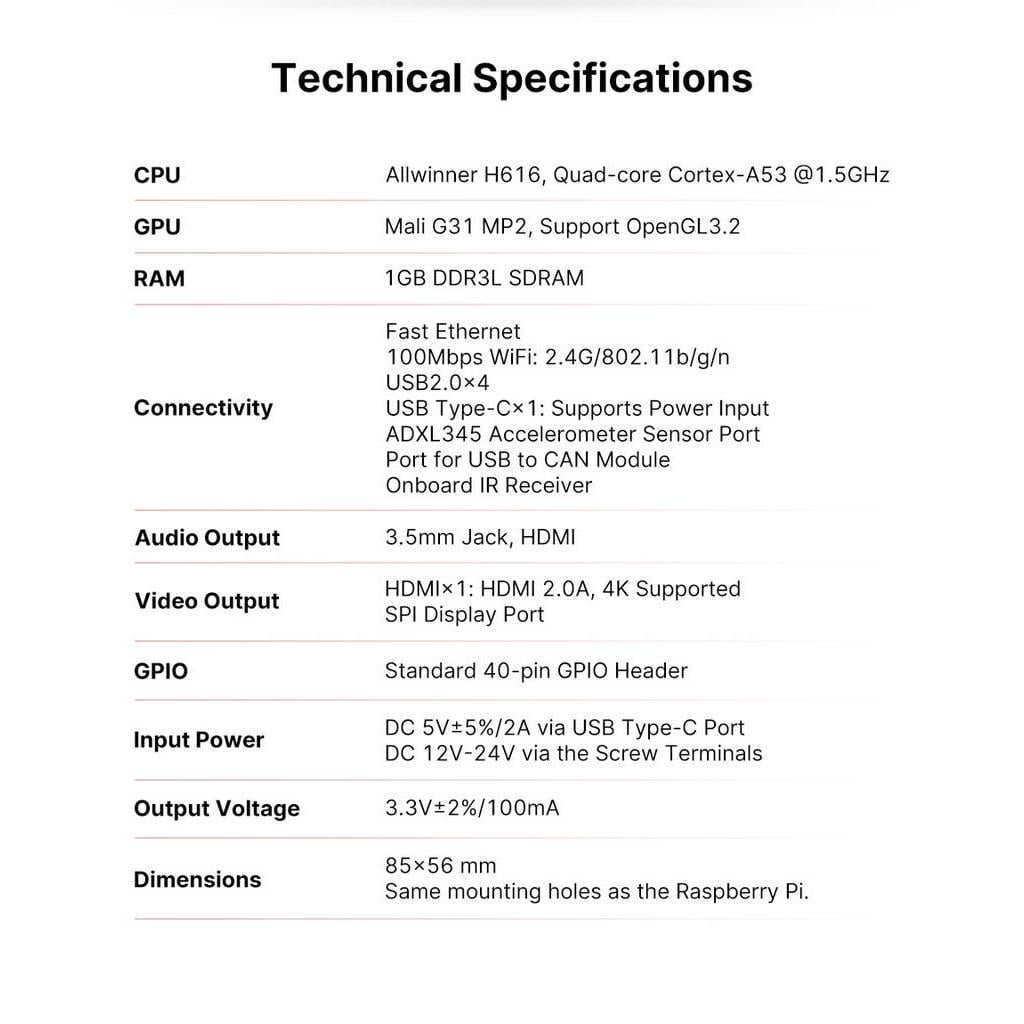

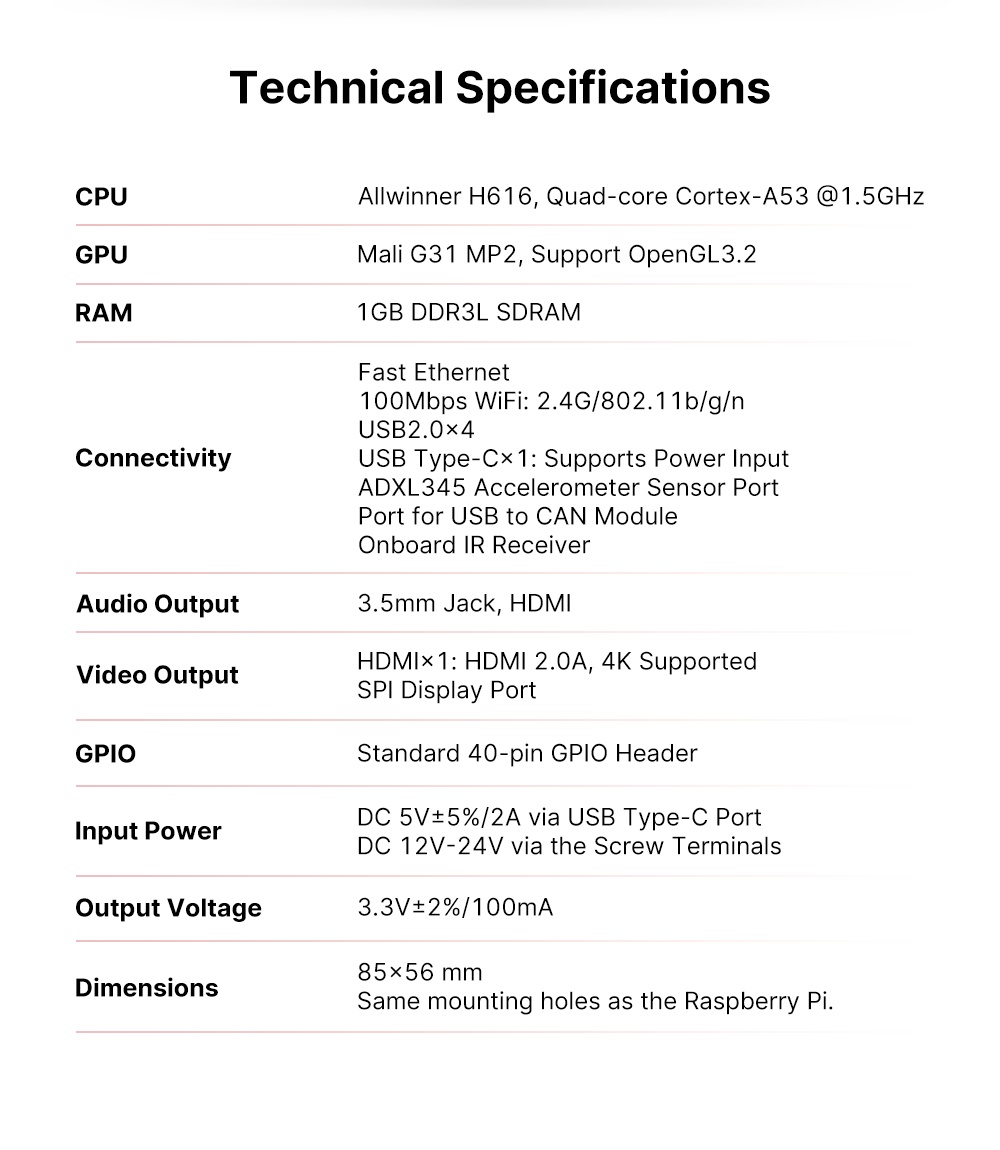

Here are the main features of BTT Pi V1.2:
CPU: ALLWINNER H616, quad-core Cortex-A53 @1.5GHz
GPU: Mali G31 MP2, OpenGL3.2 support
RAM: 1GB DDR3L SDRAM
Display: HDMI2.0A port, 4K support
4 USB 2.0 ports
Fast Ethernet + WiFi 100Mbps
Audio: 3.5 mm jack
40-pin GPIO
Display: SPI port
ADXL345 port
On-board connection port for USB-CAN module.
Built-in IR receiver
Mounting holes are in the same location as Raspberry Pi.

Bigtreetech pi v1.2 for raspberrypi 3d printer

Bigtreetech pi v1.2 for raspberrypi 3d printer

Bigtreetech pi v1.2 for raspberrypi 3d printer

Bigtreetech pi v1.2 for raspberrypi 3d printer

Bigtreetech pi v1.2 for raspberrypi 3d printer

Bigtreetech pi v1.2 for raspberrypi 3d printer

Bigtreetech pi v1.2 for raspberrypi 3d printer

Bigtreetech pi v1.2 for raspberrypi 3d printer

Bigtreetech pi v1.2 for raspberrypi 3d printer

Bigtreetech pi v1.2 for raspberrypi 3d printer

Bigtreetech pi v1.2 for raspberrypi 3d printer

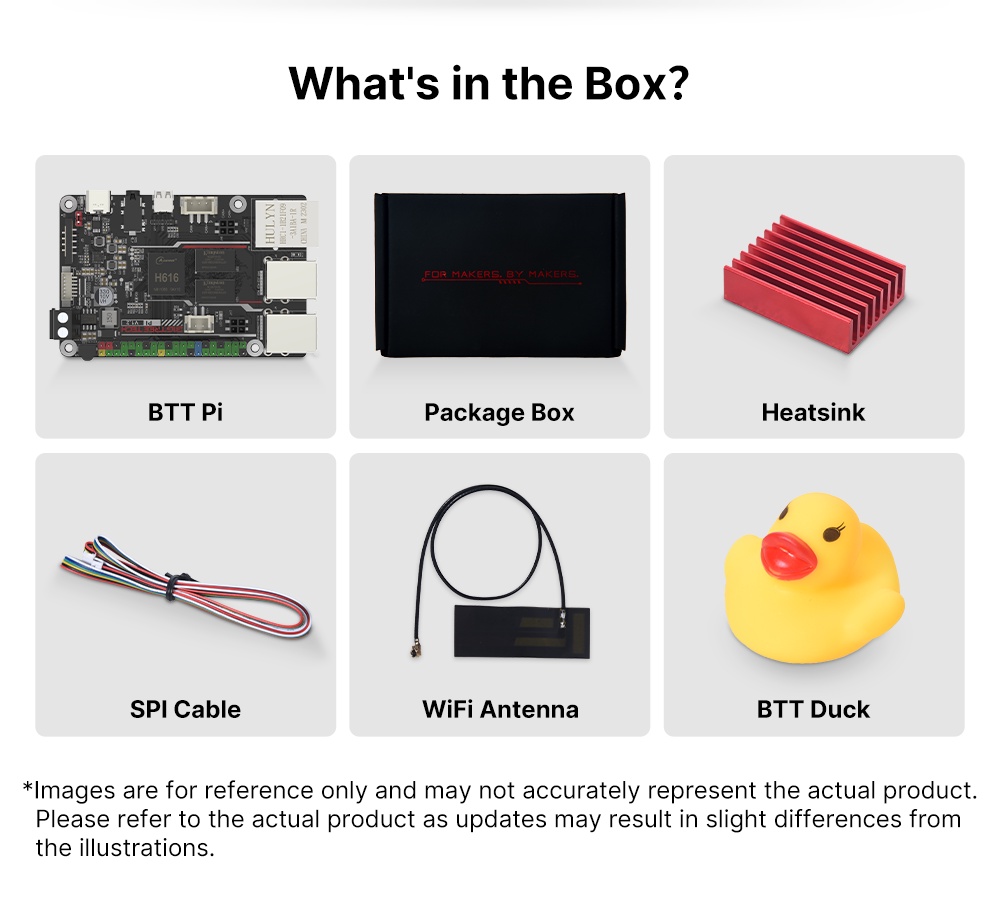

Package contains:

1x BIGTREETECH Pi v1.2

Specifically:
1x BTT Pi
1x Heatsink
1x SPI Cable
1x Wifi Antenna
1x BTT Duck

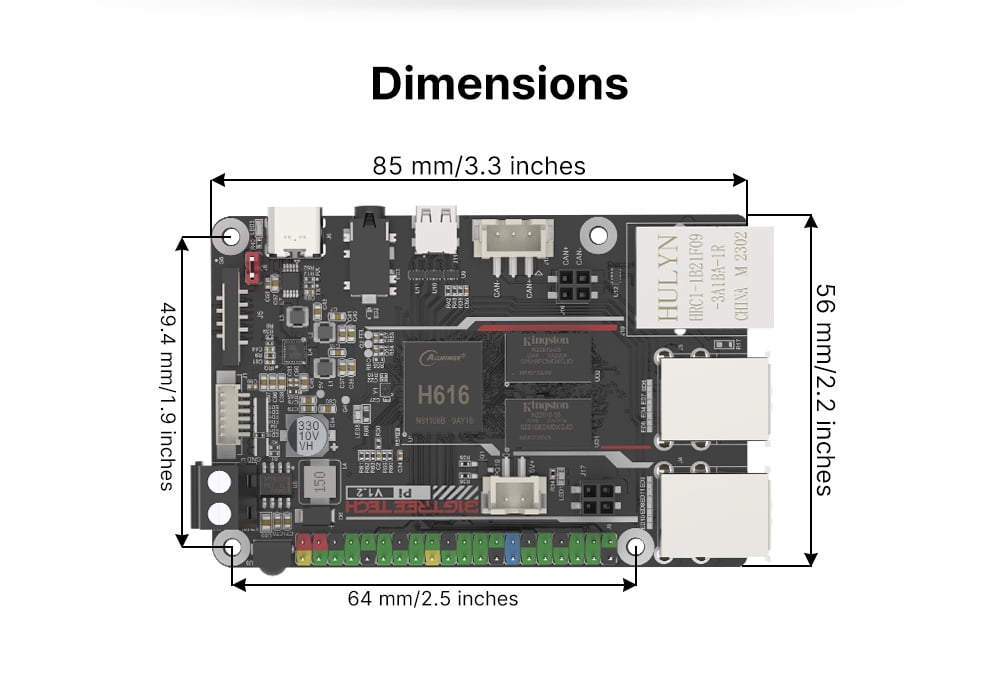

– Product dimensions: 85 x 56 mm
– Mounting dimensions: 64 x 49.4 mm

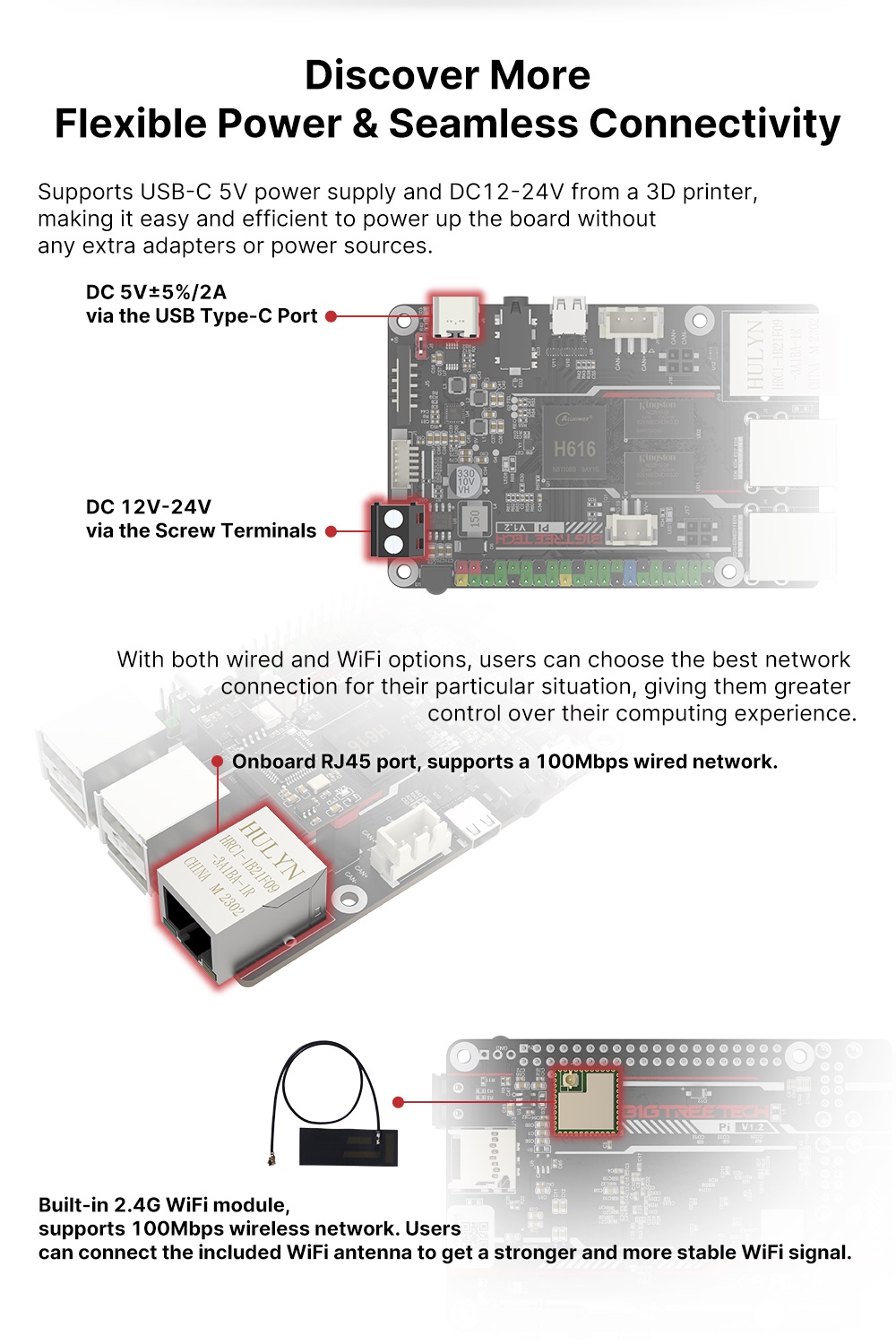

– Type-C input voltage: DC 5V±5%/2A
– IN power supply terminal input voltage: DC 12V-24V
– Pi v1.2 output voltage: 3.3V±2%/100mA
– Pi v1.2 WiFi: 2.4G/802.11 b/g/n wireless LAN

Weight0.50 kg
Dimensions7.00 × 7.00 × 4.00 cm
