Formlabs Form 4
Price range: RM16,999.00 through RM24,399.00
Key Features
- BLAZING FAST – Most prints in less than 2 hours
- VERSATILE – Leading resins for any problem
- INTUITIVE – Anyone can learn in 15 minutes
- RELIABLE – Unmatched print success rate
- ACCURATE – Rivals injection molded parts
Order Info
- Order will be shipped out from our KL warehouse in 1-3 business days once being processed.
- If you need Lalamove once purchased, WhatsApp to our phone for quick arrange delivery.
FormLabs Form 4 Overview

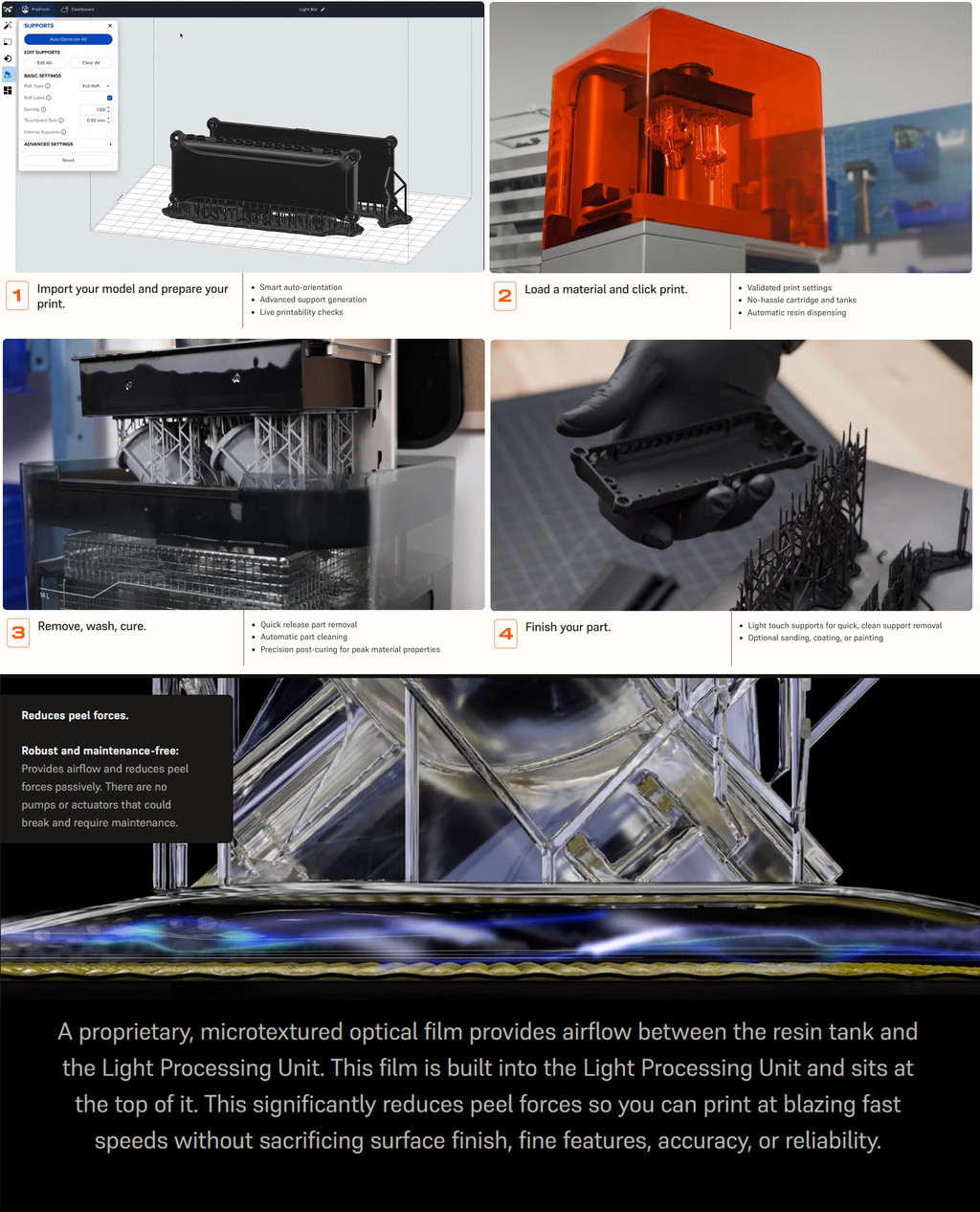

Fast by Design, Smooth by Innovation — Combining LFD Technology with Innovative Release Film Mechanism for Long-Term, High-Speed Production
Get more done with most production parts in under 2 hours.
Form 4 helps teams compress iteration cycles, fit checks, and production support work without waiting overnight for the next part.

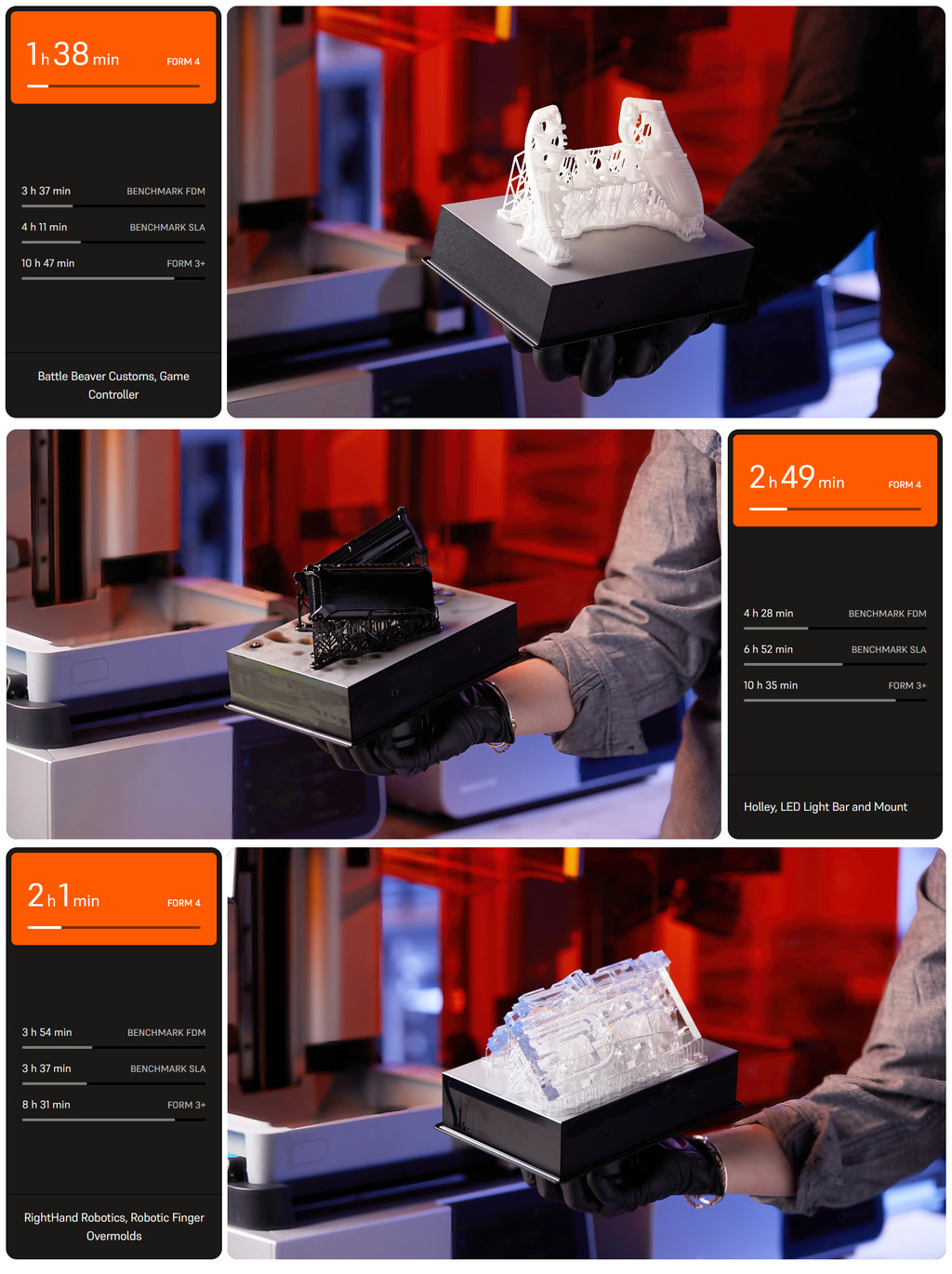

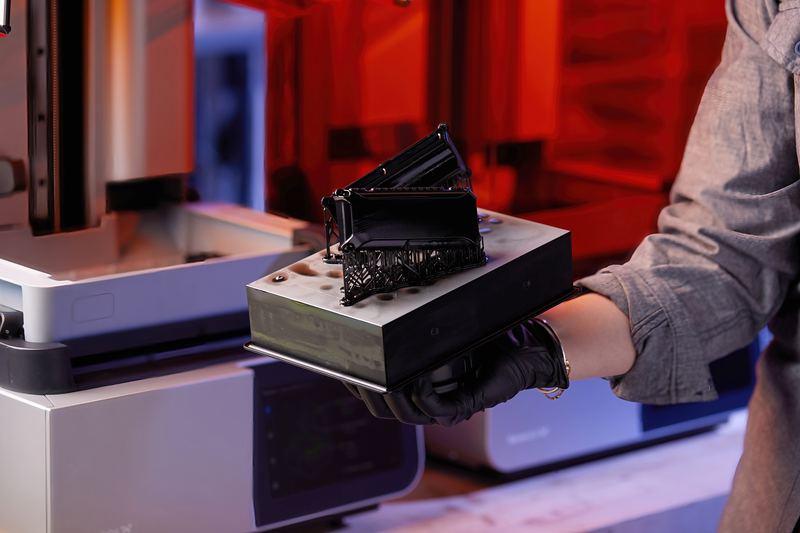

Typical production part with 53 mm print height at 100 um layers. Faster iterations mean design, verify, and rerun without waiting until tomorrow.

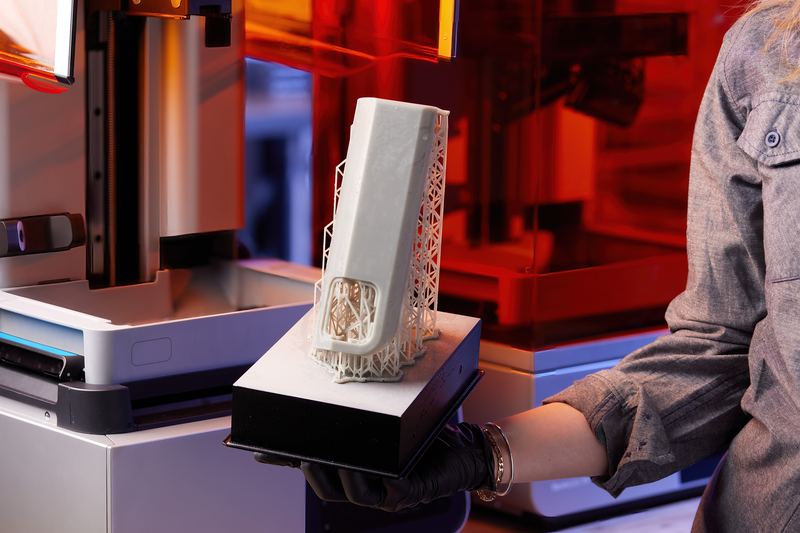

Ergonomic product shells and faceplates benefit from cleaner surfaces, tighter detail, and less sanding between rounds.

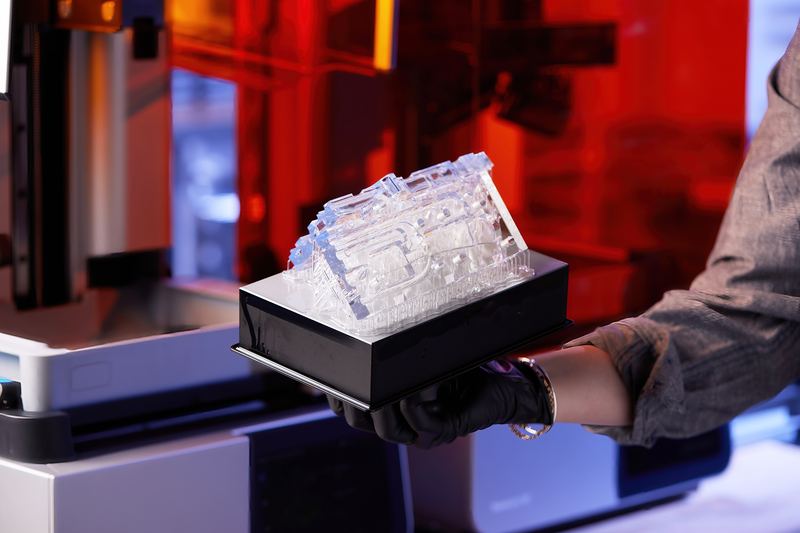

Small articulated parts need repeatable detail, dependable surface quality, and enough speed to test multiple revisions without losing momentum.
Engineering teams care about support removal, visible surfaces, and whether several validation parts can be completed before the next meeting.

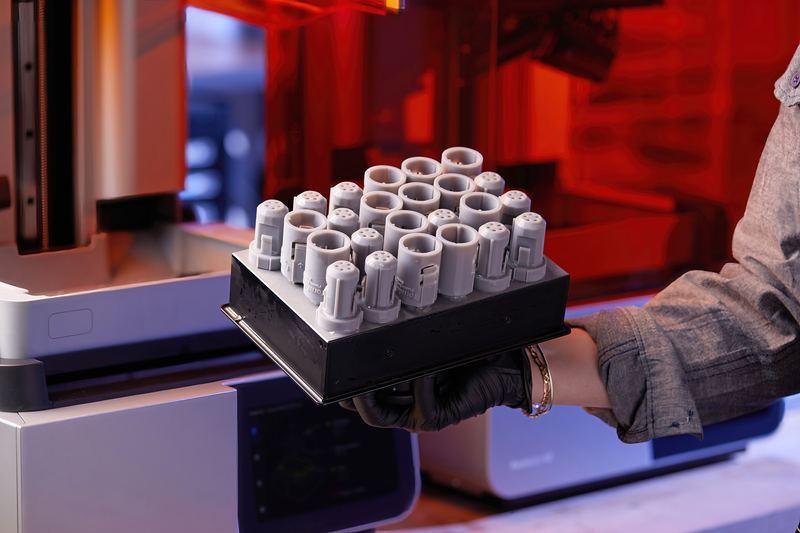

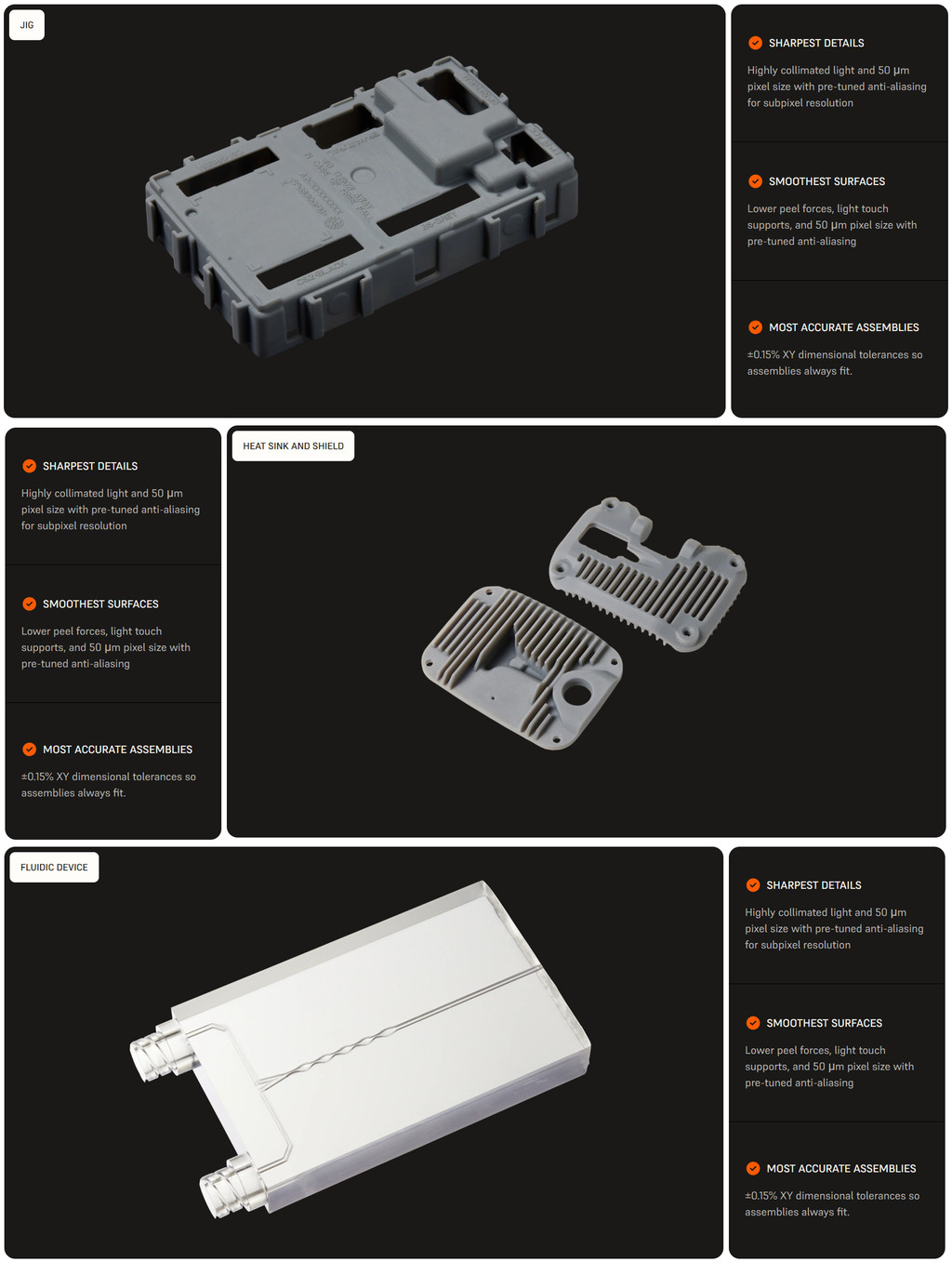

Small fixtures, alignment tools, and electronics housings benefit when resolution, dimensional consistency, and turnaround all improve together.
Sandro PiroddiSupervisor of the Rapid Technology Center, Ford
Cameron PeahlGlobal Industry 4.0 Additive Manufacturing Strategy Manager
Ewan MacleanEngineer
Mark HonschkeAdditive Prototyping Lead at Microsoft’s Advanced Prototyping Center
Matt TetzlProduct Design Lab Manager, Black Diamond
Jesse EmanuelTest Engineer
Dane JonesSenior Design Engineer, Peak Design
Matt MullinLaser Engineer, NASA
Robert MackowiakRapid Prototyping Engineer
Rapid Prototyping
Microsoft
“Form 4 is our go-to choice for projects needing tight tolerances and engineering-grade materials. It produces high-performance parts with amazingly fast print times and makes it possible for our model makers to produce multiple iterations in a 24-hour period.”
Mark Honschke
Additive Prototyping Lead at Microsoft’s Advanced Prototyping Center
Rapid Prototyping
Black Diamond

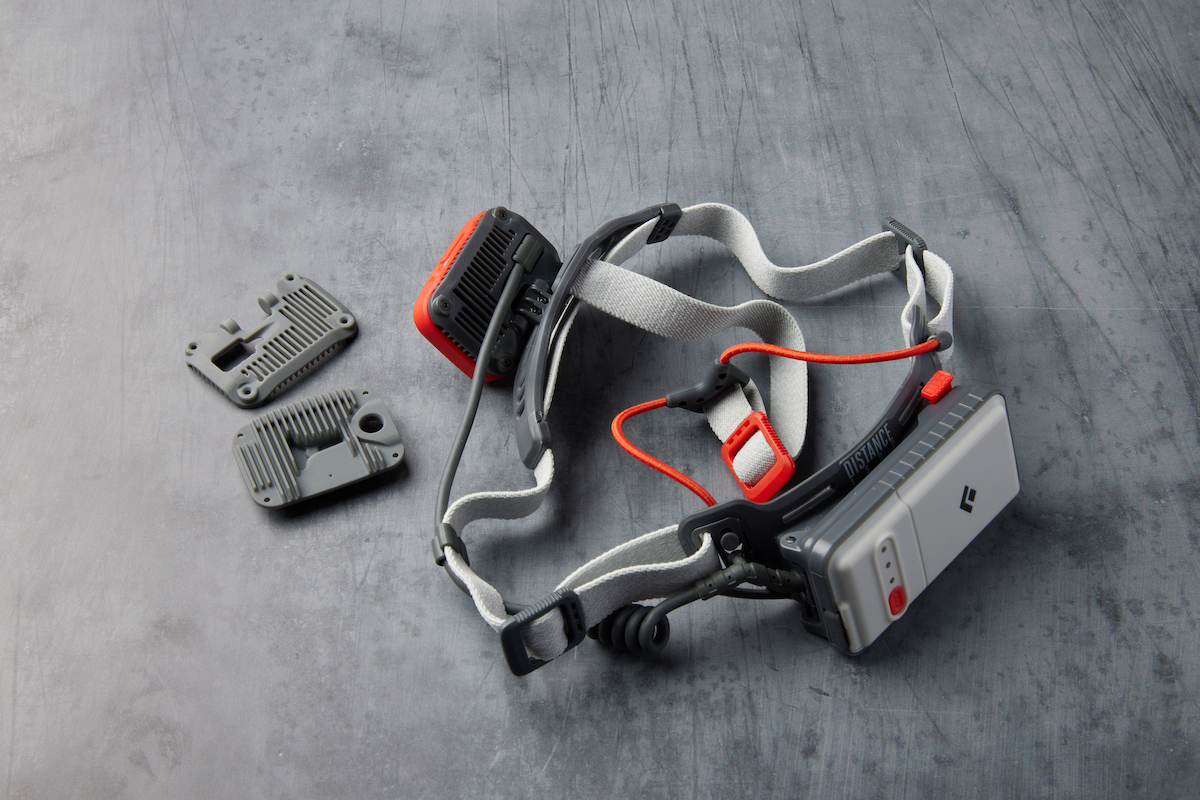

“On one lighting project, we did three iterations in a single day — designed and printed three different parts before we had a meeting in the afternoon.”
Matt Tetzl
Product Design Lab Manager, Black Diamond
Rapid Prototyping
OXO
“Form 4 has transformed our workflow. In the past, our queue has often been an issue based on time. With Form 4, it throws that out the window — we’re no longer constrained by time.”
Jesse Emanuel
Test Engineer
Rapid Prototyping
Peak Design
“Within an hour of having the Form 4s hooked up and online, they were all going constantly. The big thing that we noticed was the speed — prints done within an hour. Previously, you would get maybe one or two turns on a prototype in a day, now it’s three or four.”
Dane Jones
Senior Design Engineer, Peak Design
Rapid Prototyping
NASA
“The dramatic increase in print speed for Form 4 has significantly accelerated our fabrication cycle – to the point where I can iterate through many different designs every day and go from design to usable, functional part within the hour.”
Matt Mullin
Laser Engineer, NASA
Rapid Prototyping
Hasbro
“I really appreciate the reliability paired with the speed. It's not one or the other, like many other tools. Now I can commit to internal deadlines and feel confident that I can deliver every time.”
Robert Mackowiak,
Rapid Prototyping Engineer
Durability
Variety
Power Intensity
XY Resolution
Build Volume
Print Speed
Unboxing Video Highlights
This short video guides you through a quick unboxing experience.
What's in the Box
FormLabs Form 4 |
Form 4 Mixer |
Form 4 Resin Tank |
Form 4 Build Platform |
Form 4 Finish Kit |

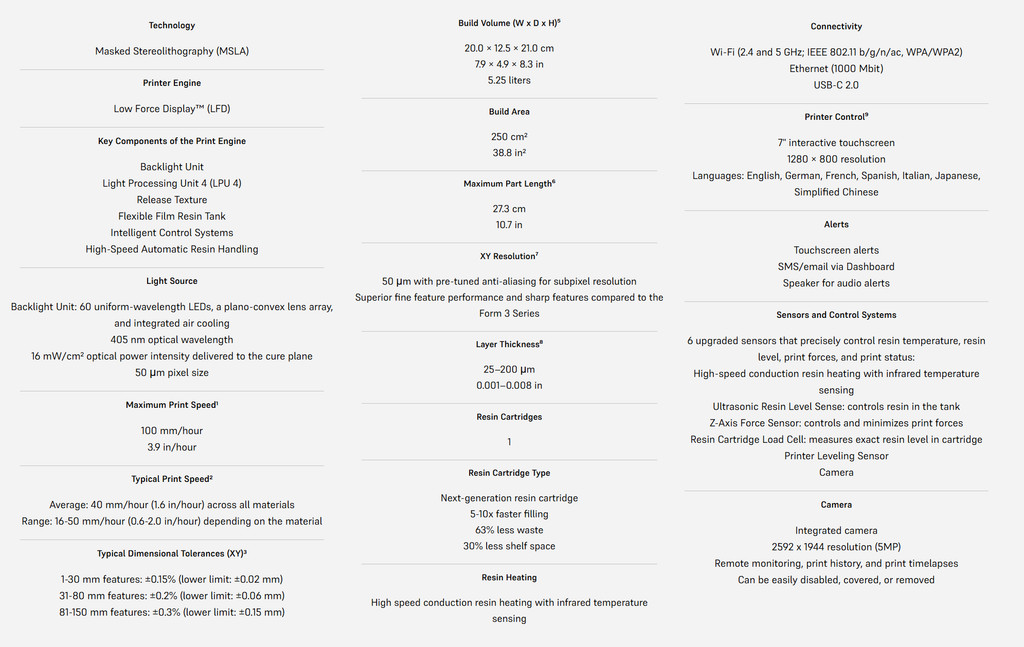

| Item | Form 4 Specification | |
|---|---|---|
| Technology | Printing Method | Masked Stereolithography (MSLA) |
| Print Engine | Engine Type | Low Force Display™ (LFD) |

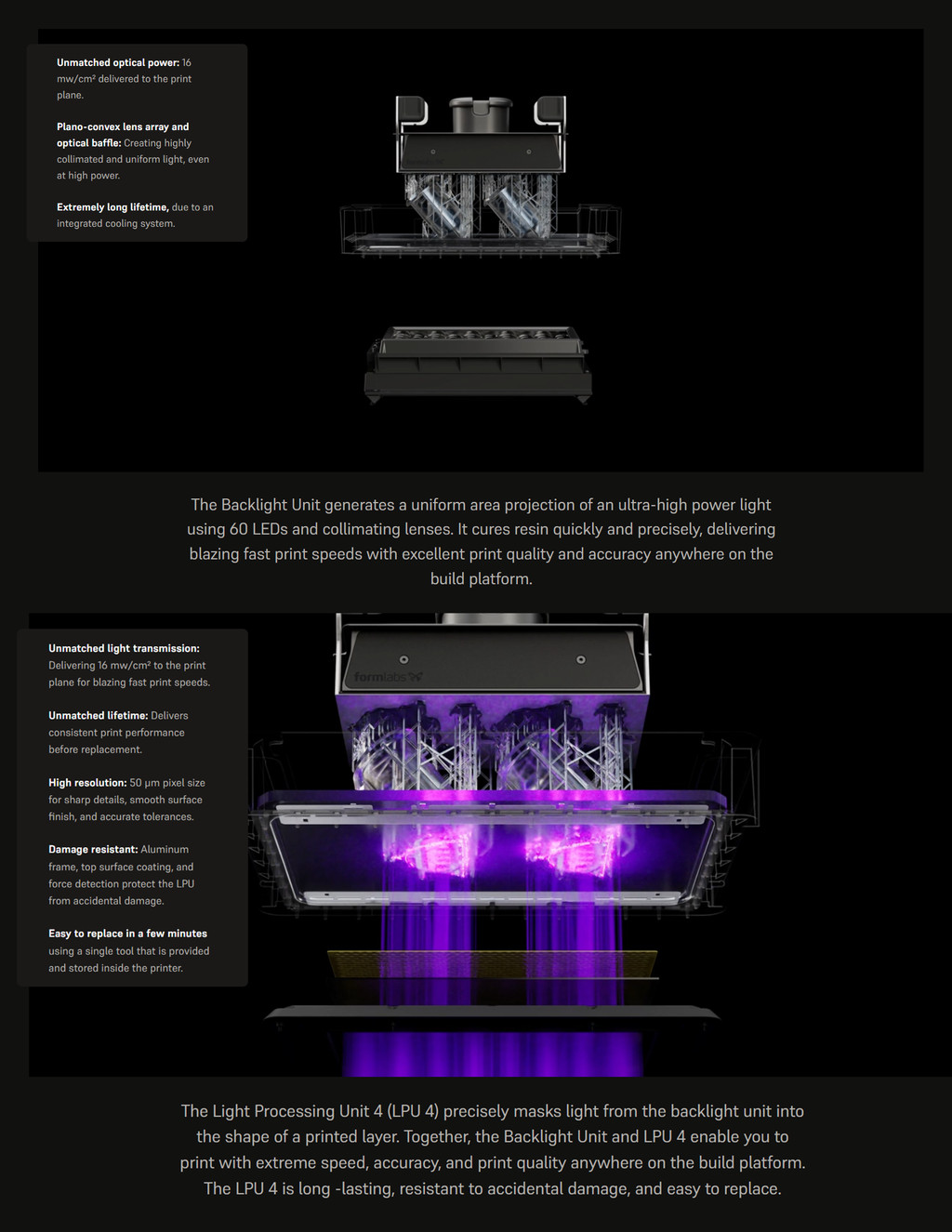

| Key Components | Backlight Unit, LPU 4, Release Texture, Flexible Film Resin Tank, Intelligent Control Systems, High-Speed Automatic Resin Handling | |
| Light Source | 405 nm, 16 mW/cm², 50 µm pixel size, LED array with plano-convex lens & air cooling | |
| XY Resolution | 50 µm with anti-aliasing | |
| Speed | Max Print Speed | 100 mm/hour |
| Typical Speed | Average 40 mm/hour (range 16–50 mm/hour) | |
| Accuracy | Dimensional Tolerance | ±0.15% to ±0.3% depending on feature size |
| Surface Accuracy | Up to 99.7% within 100 µm of CAD | |
| Layer Thickness | 25–200 µm | |
| Max Part Length | 27.3 cm | |
| Build Volume | Volume | 20.0 × 12.5 × 21.0 cm (5.25 L) |
| Build Area | 250 cm² | |
| Resin Cartridge | 1 (Next-gen, faster filling, reduced waste) | |
| Resin System | Heating | Infrared monitored, auto 25–45°C |
| Supported Materials | 23+ Formlabs materials & third-party (Open Mode) | |
| Biocompatible | No (Form 4B required) | |
| Resin Tank Life | 75,000+ layers | |

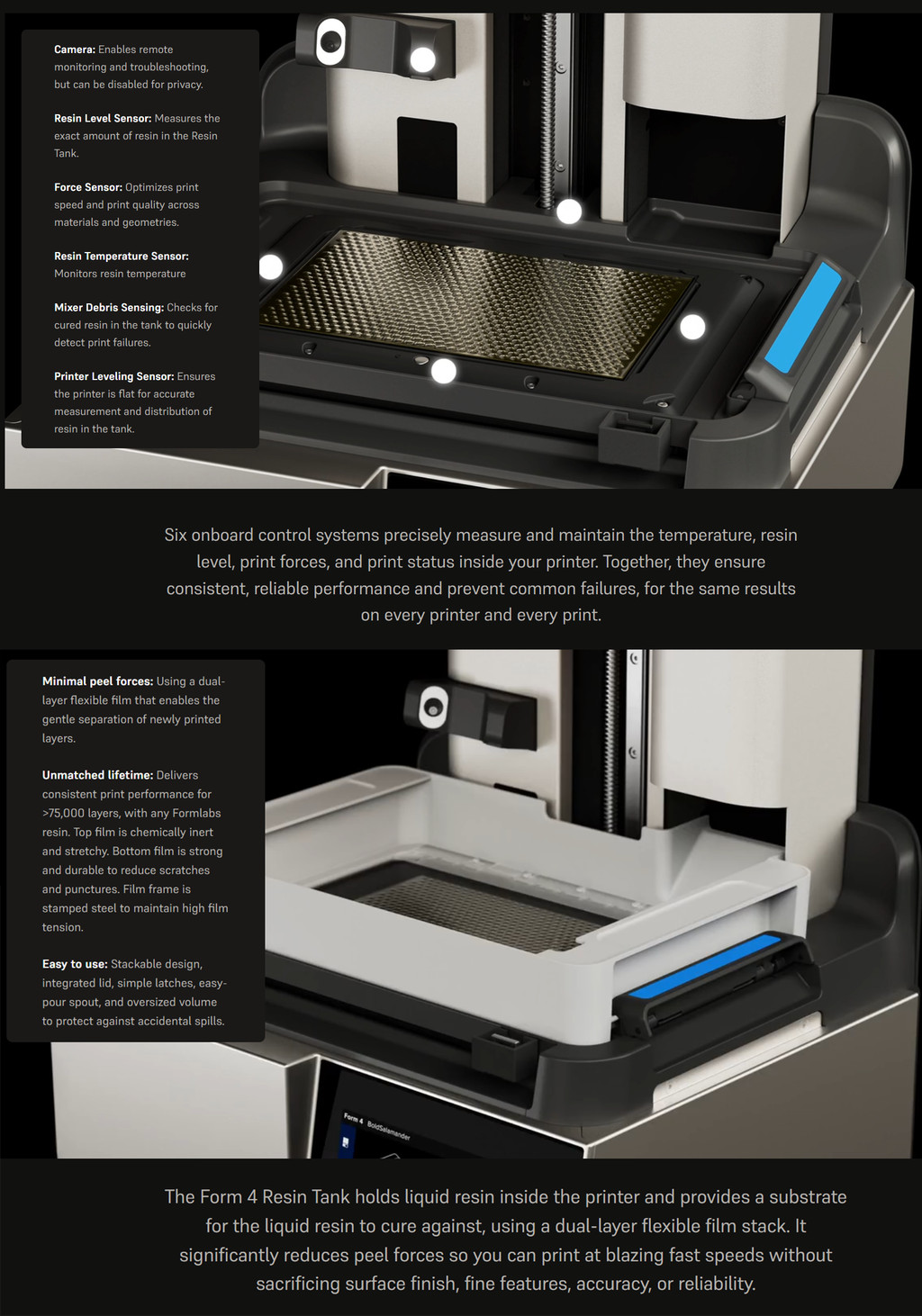

| Sensors | System Sensors | Resin temp, level, force sensing, cartridge load, leveling |
| Camera | 5MP (2592×1944), monitoring & timelapse | |
| Force Sensor | Z-axis adaptive print optimization | |
| Connectivity & Control | Connectivity | Wi-Fi, Ethernet, USB-C |
| Display | 7" Touchscreen (1280×800) | |
| Alerts | Touchscreen, SMS/email, speaker | |
| Physical Dimensions | Printer: 39.8 × 36.7 × 55.4 cm | Weight: 18.3 kg Min Access: 40.7 × 47.8 × 84.4 cm Operating Temp: 18–28°C Power: 100–240 VAC, 480W |
|
| Weight | 20.00 kg |
|---|---|
| Dimensions | 48.00 × 41.00 × 85.00 cm |
| Warranty | 1 Year Warranty, 3 Years Warranty, 5 Years Warranty |
