Formlabs Form 4L
Price range: RM42,099.00 through RM63,999.00
Key Features

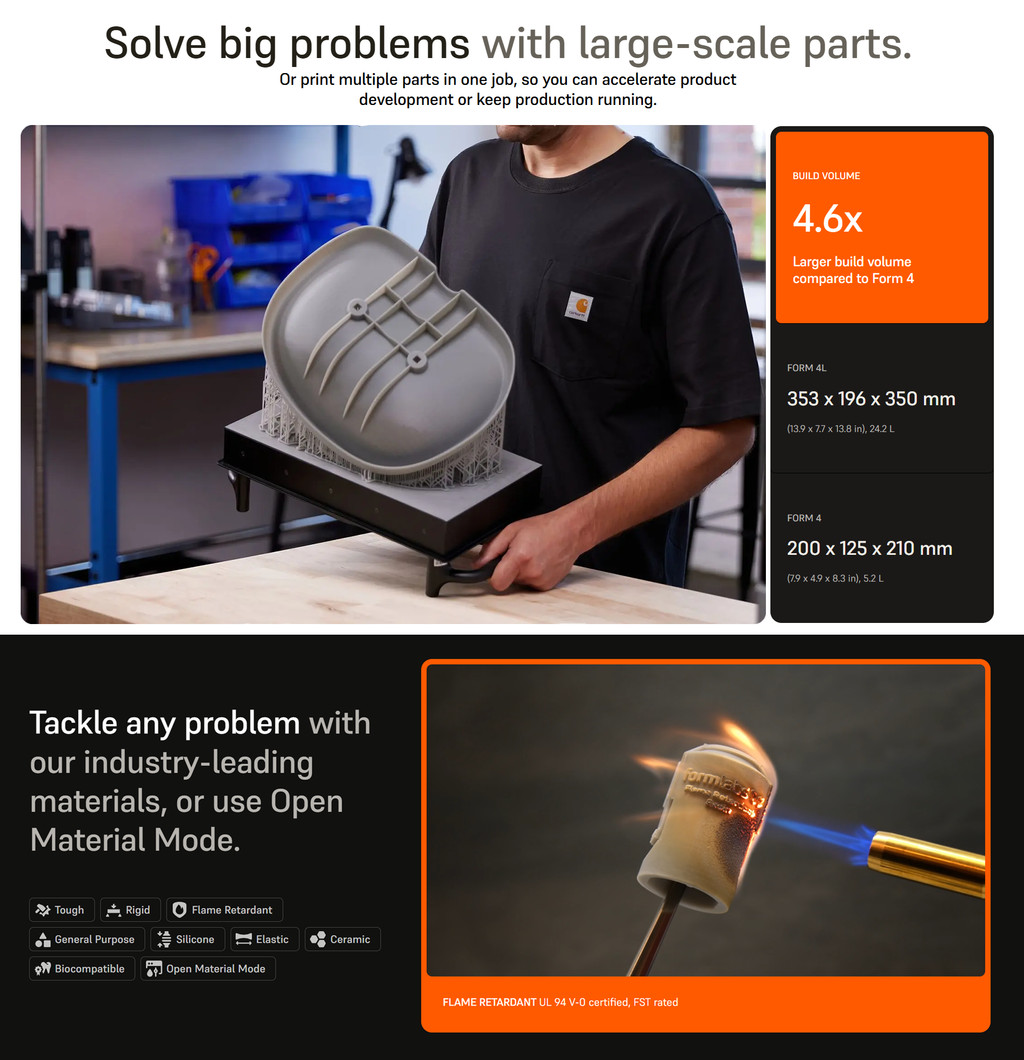

- BIG PRINT VOLUME: Provides a Large 353 x 196 x 350 mm print dimension to work with
- BLAZING FAST: Large prints in under 6 hours

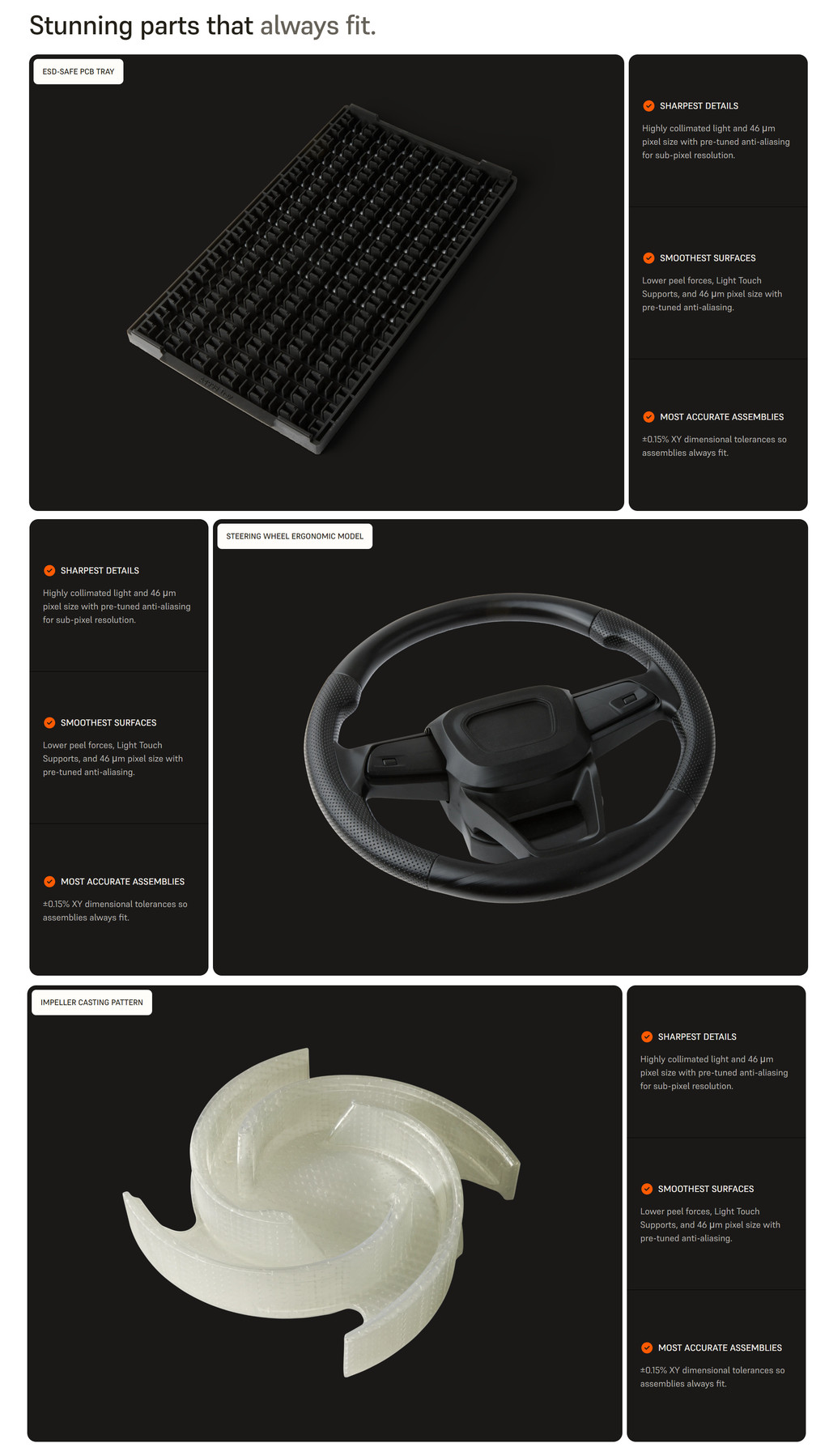

- STUNNING PARTS: Parts that always fit
- VERSATILE: Industry-leading materials and Open Material Mode
- RELIABLE: Large format 3D printing you can depend on
- INTUITIVE: Anyone can learn in 15 minutes
Order Info
- Order will be shipped out from our KL warehouse in 1-3 business days once being processed.
- If you need Lalamove once purchased, WhatsApp to our phone for quick arrange delivery.
FormLabs Form 4L Overview
Fast by Design, Smooth by Innovation — Combining LFD Technology with Innovative Release Film Mechanism for Long-Term, High-Speed Production

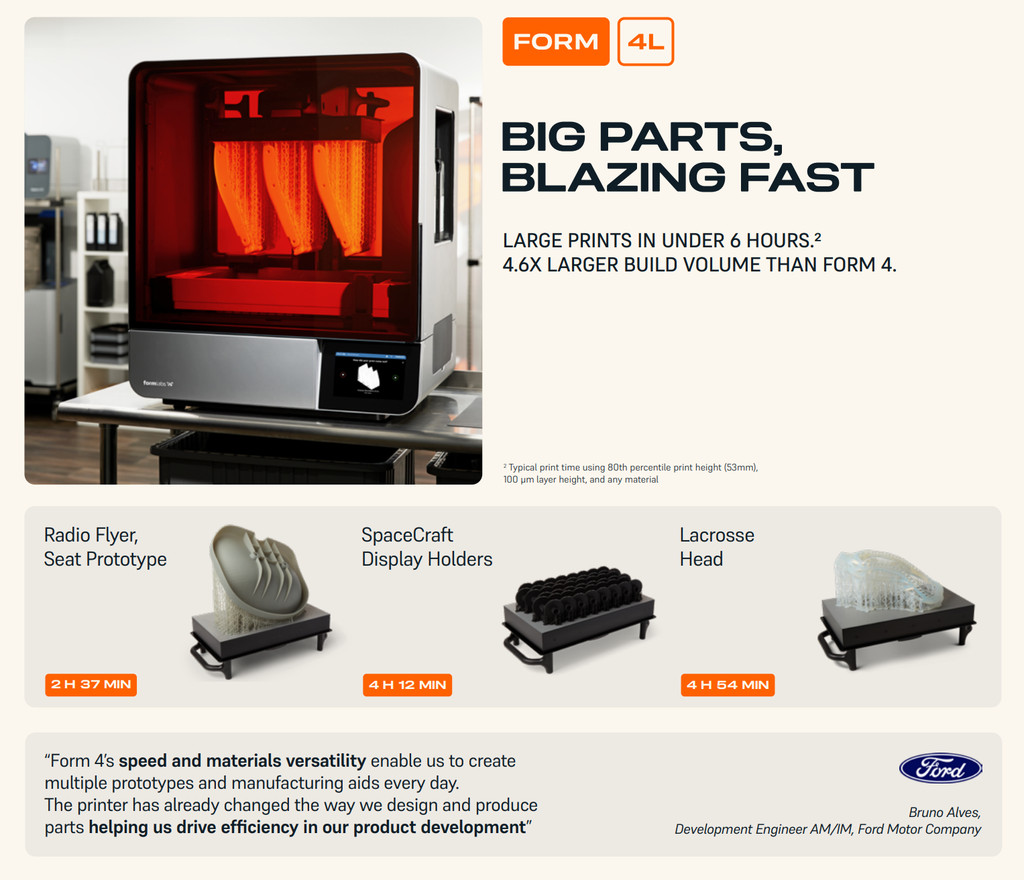

Speed at scale. Large prints in under 6 hours.
Form 4L helps teams finish large-format prototypes and production parts faster, so fit checks, validation, and iteration can happen in the same work cycle.
Form 4L completes this part in 4h 54min, far ahead of FDM alternatives and much faster than Form 3L for full-size prototype review.
Form 4L prints this large prototype in 2h 37min, while one leading FDM option cannot fit the part at all.
Form 4L finishes these large holders in 4h 12min, compared with 12h 48min on leading FDM and 22h 52min on Form 3L.
Form 4L handles this large assembly in 5h 50min, beating both leading and benchmark FDM while staying well ahead of Form 3L.

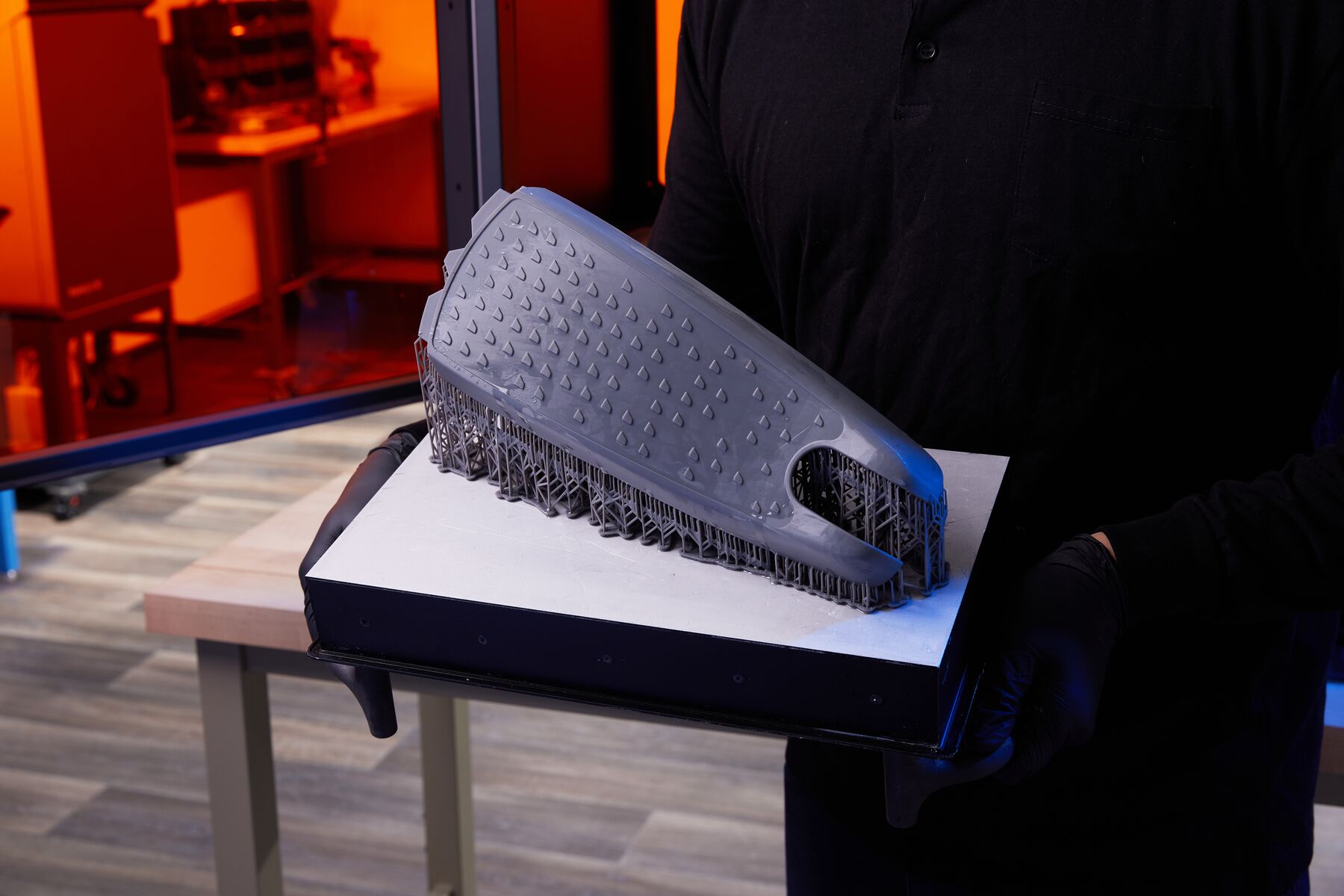

Form 4L produces this scooter cover in 4h 58min, dramatically shortening the wait compared with FDM and earlier large-format SLA.
Sandro PiroddiSupervisor of the Rapid Technology Center, Ford
Cameron PeahlGlobal Industry 4.0 Additive Manufacturing Strategy Manager
Ewan MacleanEngineer
Mark HonschkeAdditive Prototyping Lead at Microsoft’s Advanced Prototyping Center
Matt TetzlProduct Design Lab Manager, Black Diamond
Jesse EmanuelTest Engineer
Dane JonesSenior Design Engineer, Peak Design
Matt MullinLaser Engineer, NASA
Robert MackowiakRapid Prototyping Engineer
Rapid Prototyping
Radio Flyer
“Having the ability to prototype our ideas quickly because we can generate more versions and test those ideas quickly with Form 4L has allowed us to bring concepts further, faster. We can integrate new features into products that would have been difficult to before.”
Agostino LoBello,
Product Design Engineer, Radio Flyer
.webp)
Rapid Prototyping
Archer
“Form 4L allows us to print big parts of super high-quality, barely any hand finishing on them, and readily usable. The machine has been flawless for the entire time we have had it.”
Julien Thiebaud,
Design Manager, Advanced Technologies, Archer
Rapid Prototyping
Microsoft
“We were able to do three full builds in three days instead of a week and a half. So Form 4L already paid for itself in that build alone.”
Mark Honschke
Additive Prototyping Lead at Microsoft’s Advanced Prototyping Center
Manufacturing Aids & End-Use Parts
Viking Yachts
“The Form 4L benefits boat manufacturers of every size. I’m making one-off custom parts that look like they were injection molded — that’s the extra Viking touch, something you can take pride in. 3D printing has game-changing potential for the industry.”
Winston Zeberlein,
Advanced Manufacturing Engineer, Viking Yachts
Manufacturing Aids & Rapid Prototyping
UbeCube

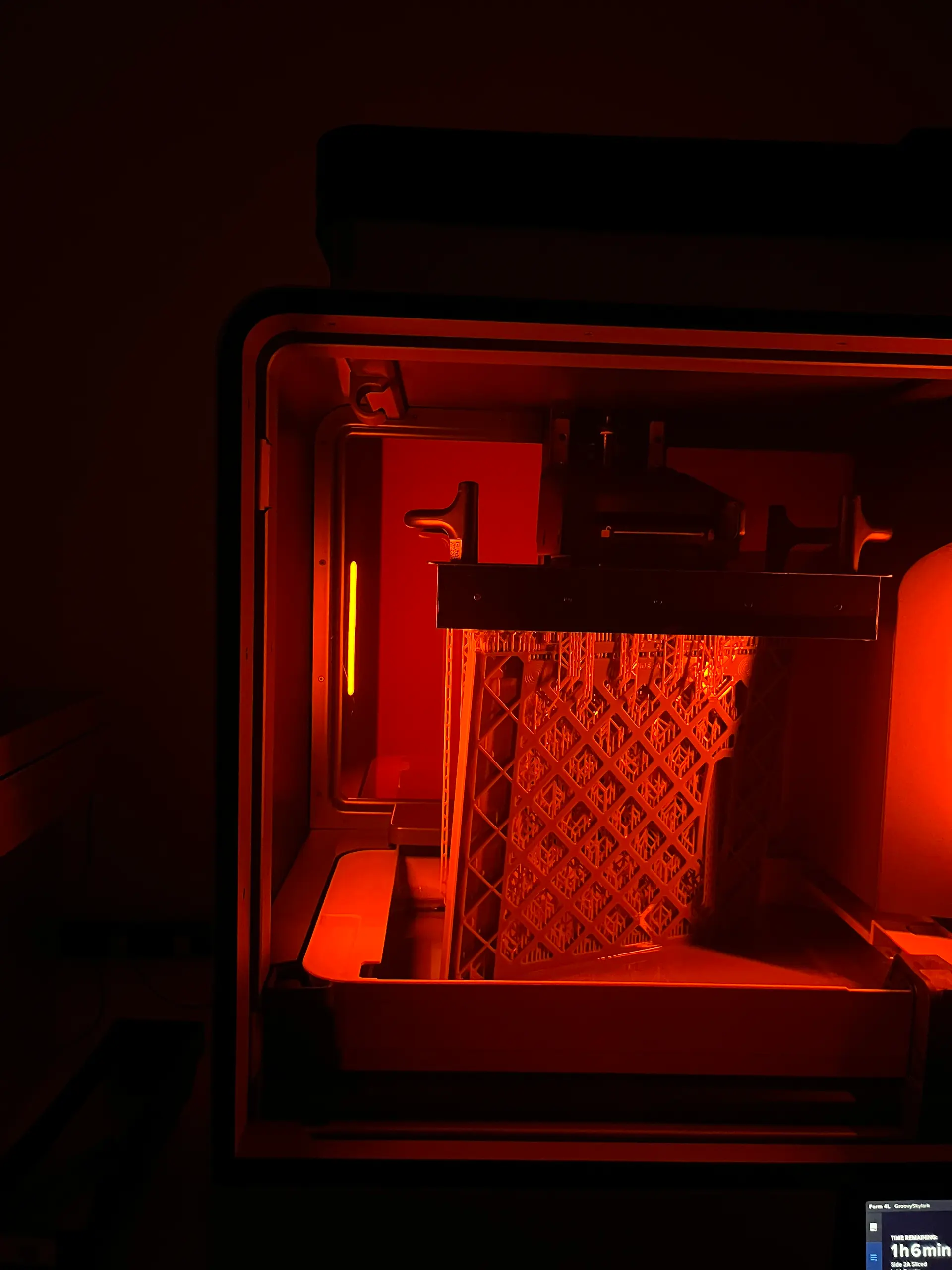

“Before we got the Form 4L, we had to prototype larger items and we needed to get those relatively quickly. Sometimes those part batches shipped to the US in a month and would be $3,000-4,000. To get those same parts manufactured at a USA printing company is even more expensive, five to six thousand. At that point, Form 4L wasn't even a long-term payout — it paid for itself in two runs of parts.”
Isaiah Tarwater,
Industrial Designer, UbeCube
End-Use Parts
Sirris
“With the Form 4L, we’re just scratching the surface of what’s possible. The ability to customize and iterate quickly gives us a significant edge in the market.”
Jon Howard,
Co-Founder and Operations, Sirris
End-Use Parts
Steam Factory

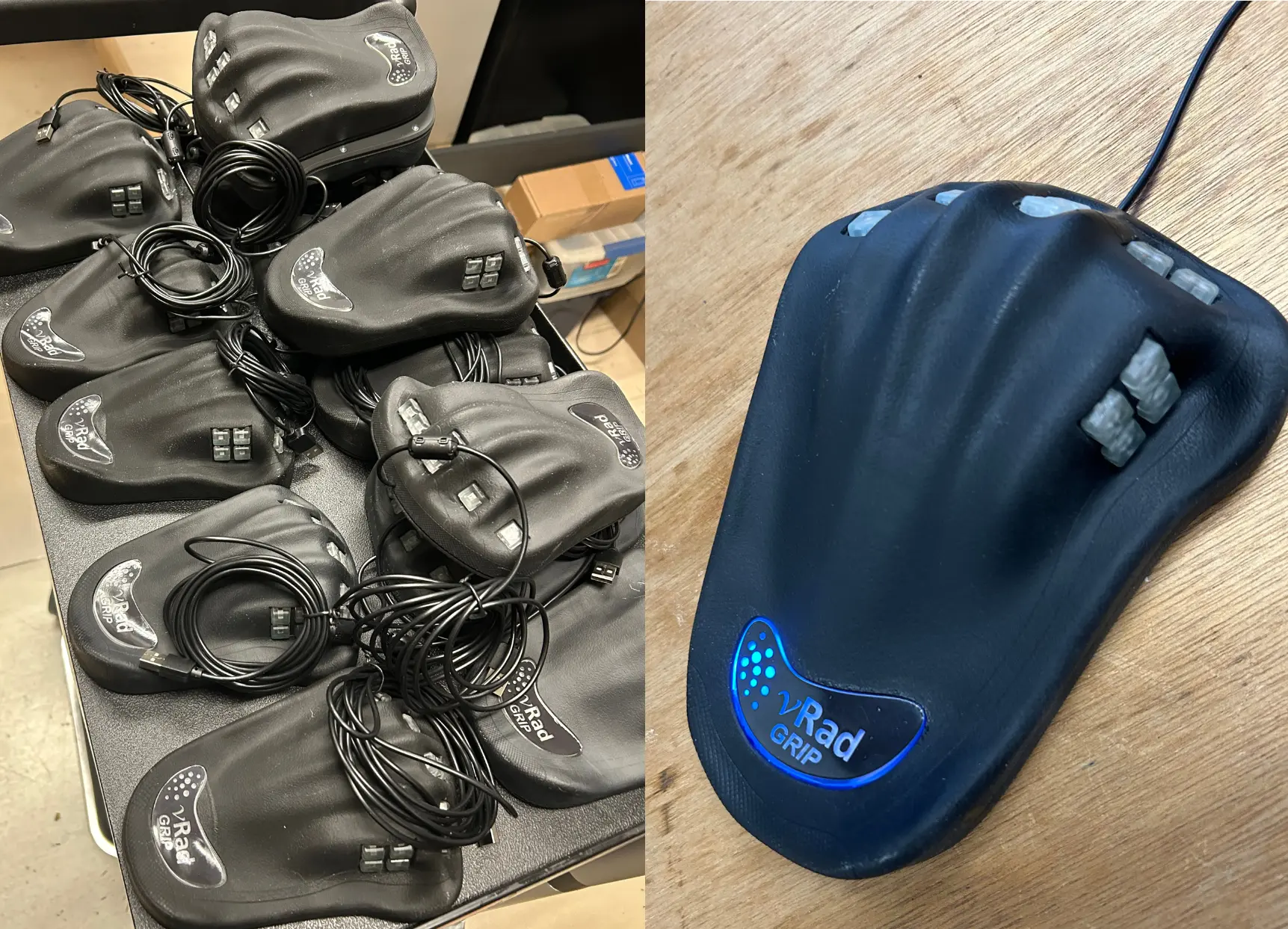

“The printed parts cost 25% less to print on Form 4L than when we were printing on the Form 3Ls. That's a combination of lower material cost and higher speeds.”
Rick Beddoe,
Principal Engineer/CEO, Steam Factory Design and Development
End-Use Parts
Ali Sayed

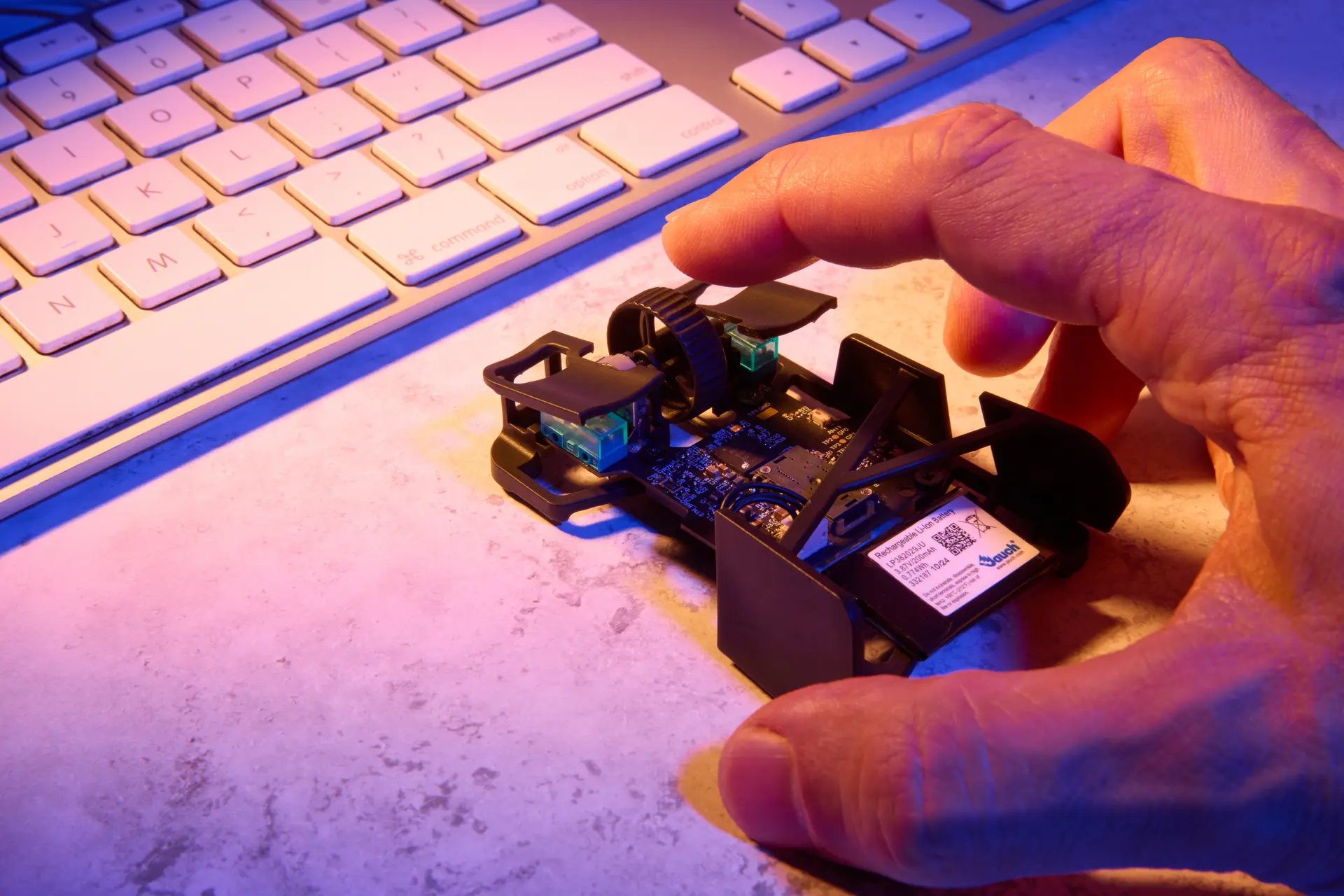

“Every interaction you have with these printers is so easy and refined. When your tools are this nice to use, it not only removes the friction of making stuff but makes it thoroughly enjoyable every time you fire them up.”
Ali Sayed
Durability
Variety
Power Intensity
XY Resolution
Build Volume
Print Speed
Unboxing Video Highlights
This short video guides you through a quick unboxing experience.
What's in the Box
FormLabs Form 4L |
Form 4L Mixer |
Form 4L Resin Tank |
Form 4L Build Platform |
Form 4L Finish Kit |

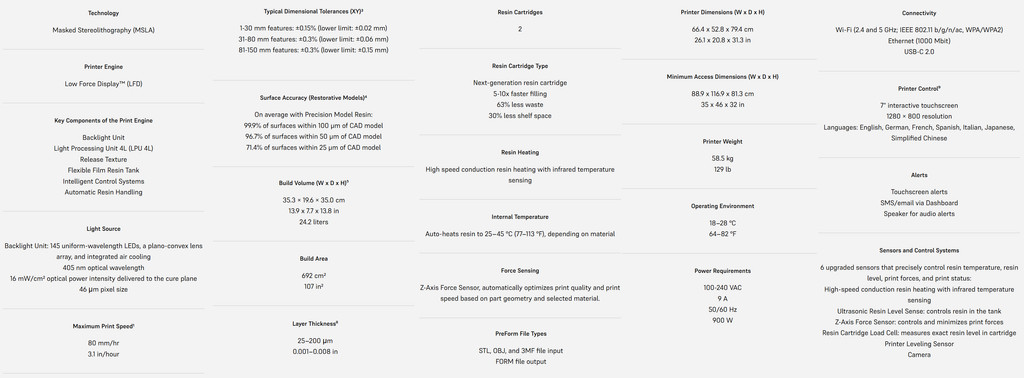

| Item | Form 4L Specification | |
|---|---|---|
| Technology | Printing Method | Masked Stereolithography (MSLA) |
| Print Engine | Engine Type | Low Force Display™ (LFD) |

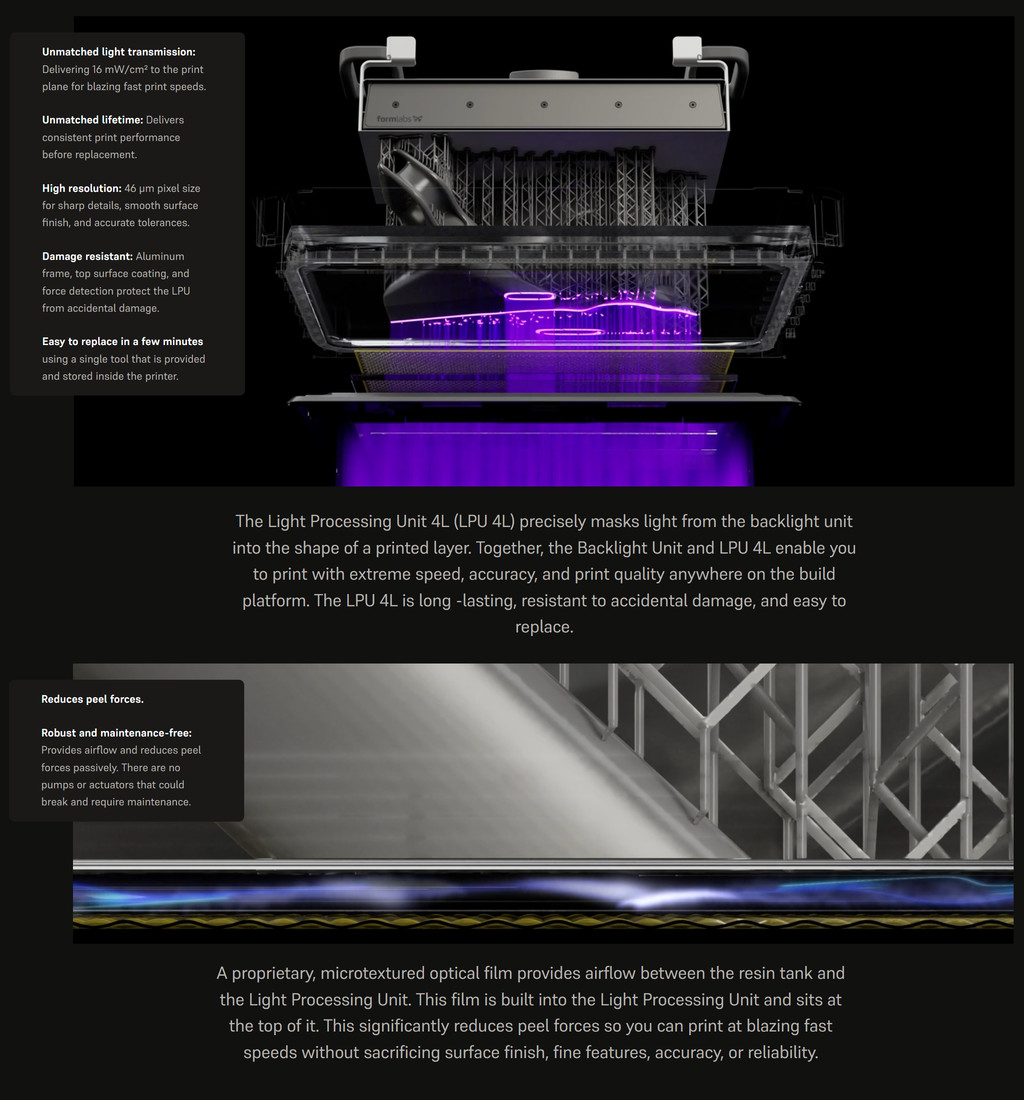

| Key Components | Backlight Unit, LPU 4L, Release Texture, Flexible Film Resin Tank, Intelligent Control Systems, Automatic Resin Handling | |
| Light Source | 405 nm, 16 mW/cm², 46 µm pixel size, 145-LED array with lens & air cooling | |
| XY Resolution | 46 µm with anti-aliasing | |
| Speed | Max Print Speed | 80 mm/hour |
| Typical Speed | Average 24 mm/hour (range 20–35 mm/hour) | |
| Accuracy | Dimensional Tolerance | ±0.15% to ±0.3% depending on feature size |
| Surface Accuracy | Up to 99.9% within 100 µm of CAD | |
| Layer Thickness | 25–200 µm | |
| Max Part Length | Not specified | |
| Build Volume | Volume | 35.3 × 19.6 × 35.0 cm (24.2 L) |
| Build Area | 692 cm² | |
| Resin Cartridge | 2 (Next-gen, faster filling, reduced waste) | |
| Resin System | Heating | Infrared monitored, auto 25–45°C |
| Supported Materials | 19+ Formlabs materials & third-party (Open Mode) | |
| Biocompatible | No (Form 4LBL required) | |
| Resin Tank Life | 75,000+ layers | |
| Sensors | System Sensors | Resin temp, level, force sensing, cartridge load, leveling |
| Camera | 5MP (2592×1944), monitoring & timelapse | |
| Force Sensor | Z-axis adaptive print optimization | |
| Connectivity & Control | Connectivity | Wi-Fi, Ethernet, USB-C |
| Display | 7" Touchscreen (1280×800) | |
| Alerts | Touchscreen, SMS/email, speaker | |
| Physical Dimensions | Printer: 66.4 × 52.8 × 79.4 cm | Weight: 58.5 kg Min Access: 88.9 × 116.9 × 81.3 cm Operating Temp: 18–28°C Power: 100–240 VAC, 900W |
|
| Weight | 64.00 kg |
|---|---|
| Dimensions | 61.00 × 73.00 × 89.00 cm |
| Warranty | 1 Year Warranty, 3 Years Warranty, 5 Years Warranty |
