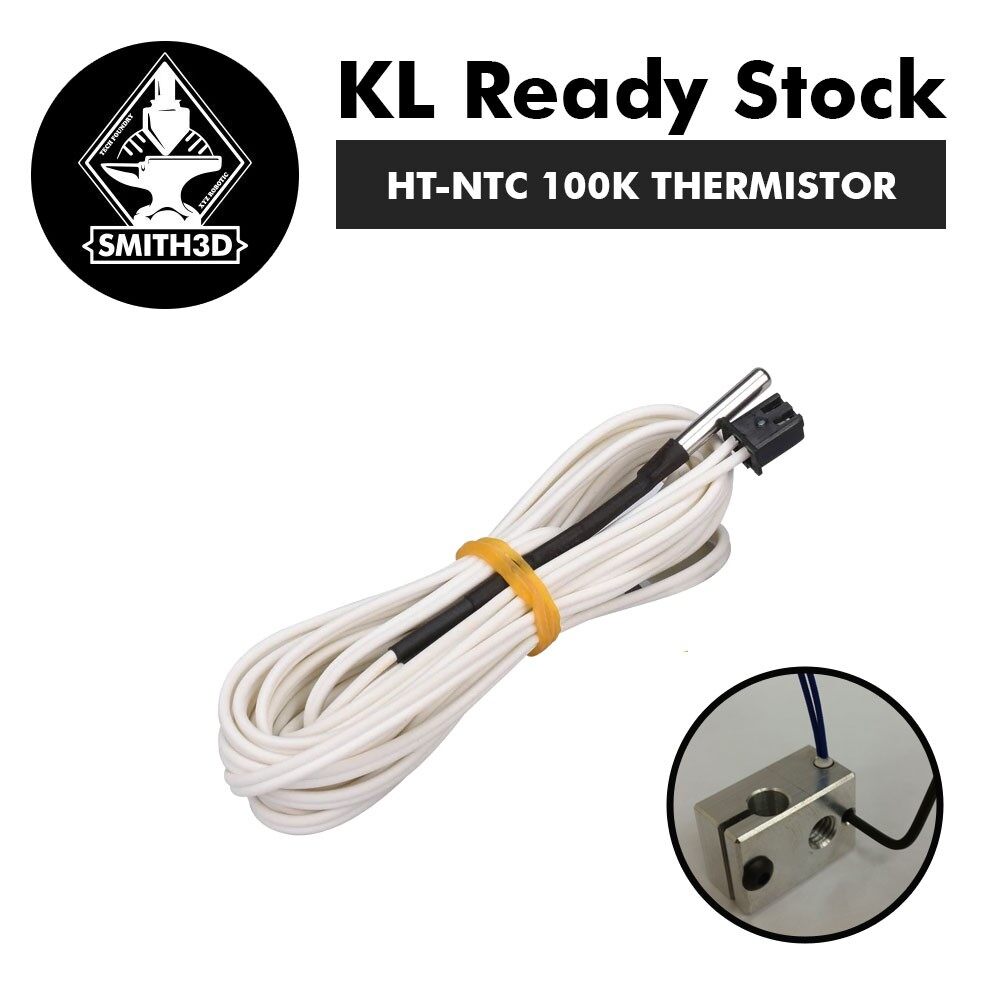

Specification:
Cadtridge size diameter 3mm, length 15mm
Total length: 1m/2m
Free on the other end
Resistance value at 25°C=100K
B Value = 3950K
Operating Temperature: -50 ℃ ~ +350 ℃
Compatible with E3D V6 Heater Block for Sensor Cartridge only
Installation:
Slot into the heater block 3mm hole and then clamp it with M3 screw, Do not clamp it too much, if the cartidge is dented your printer won’t read it. -15 in marlin means the thermistor is faulty.
Note this is not compatible with MK8 Heat block, such as Ender 3 default hotend. Please use another thermistor with bead instead.
What’s include:
Thermistor cartridge 100K x1pc
