eSUN ABS CF Filament Carbon Fiber – 1.75mm 1kg
RM149.00
| Key Specifications | |
|---|---|
| Specific Requirements | Enclosed Printer, Hardened Steel Nozzle |
| Nozzle Temperature | 240–270 ºC |
| Bed Temperature | 90–110 ºC |
| Printing Speed | 40–80 mm/s |
| Density | 1.10 g/cm³ |
| Tensile Strength | 75 MPa |
| Elongation at Break | 3 % |
| Flexural Strength | 120 MPa |
| Flexural Modulus | 5 000 MPa |
| Impact Strength | 30 kJ/m² |
Order Info
- Order will be shipped out from our KL warehouse in 1-3 business days once being processed.
- If you need Lalamove once purchased, WhatsApp to our phone for quick arrange delivery.
eSUN ABS CF Carbon Fiber Filament 1kg 1.75mm – High Strength Engineering Grade

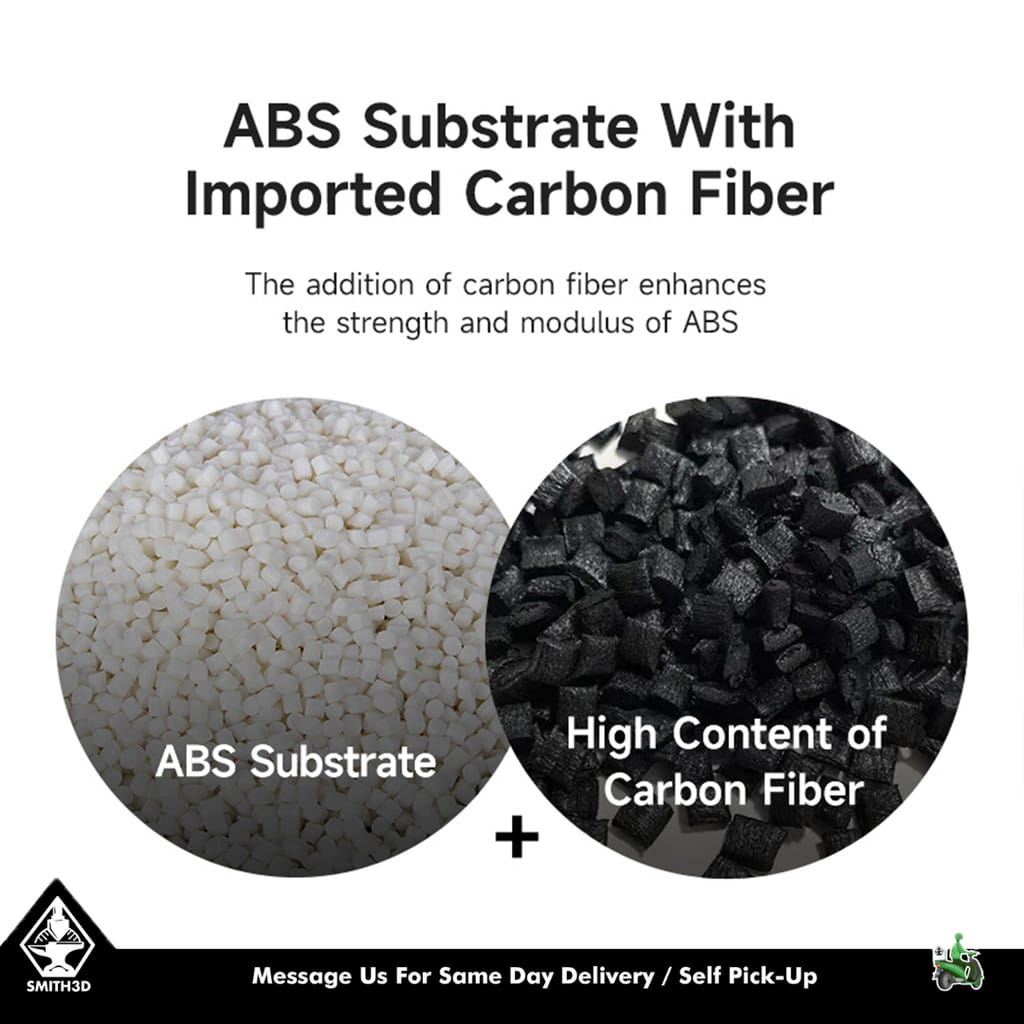

eSUN eABS-CF is a carbon fiber reinforced ABS filament engineered for applications demanding exceptional stiffness, strength, and dimensional stability. The carbon fiber infusion delivers superior rigidity with lower density than standard ABS, while the matte finish reduces visible layer lines for a professional appearance.
Ideal for printer parts, industrial fixtures, drone components, and any application where lightweight strength matters. Requires an enclosed printer and hardened steel nozzle due to the abrasive carbon fiber content.
eSUN ABS CF Key Features

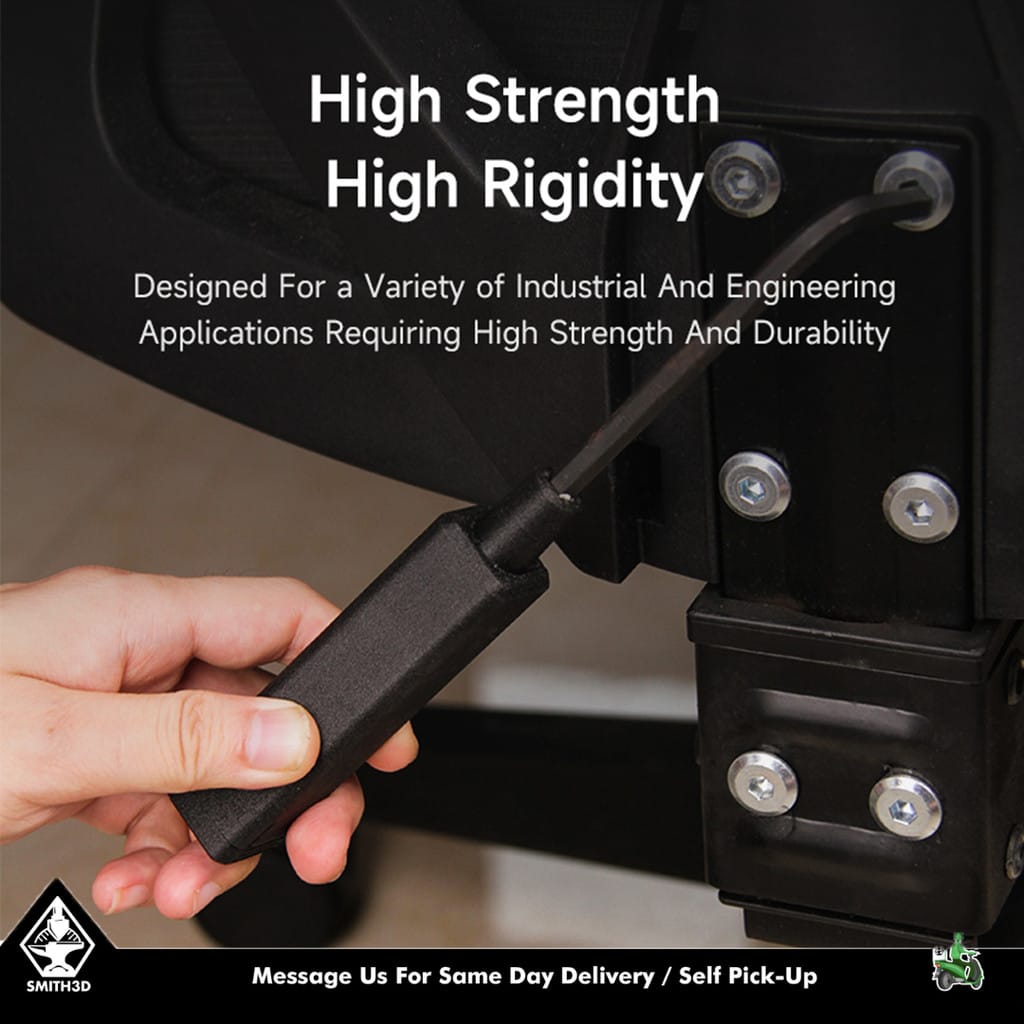

- Carbon Fiber Reinforced – Significantly enhanced stiffness and strength
- High Flexural Modulus – 5000 MPa for exceptional rigidity
- Low Density – Lighter than standard ABS (1.10 g/cm³)

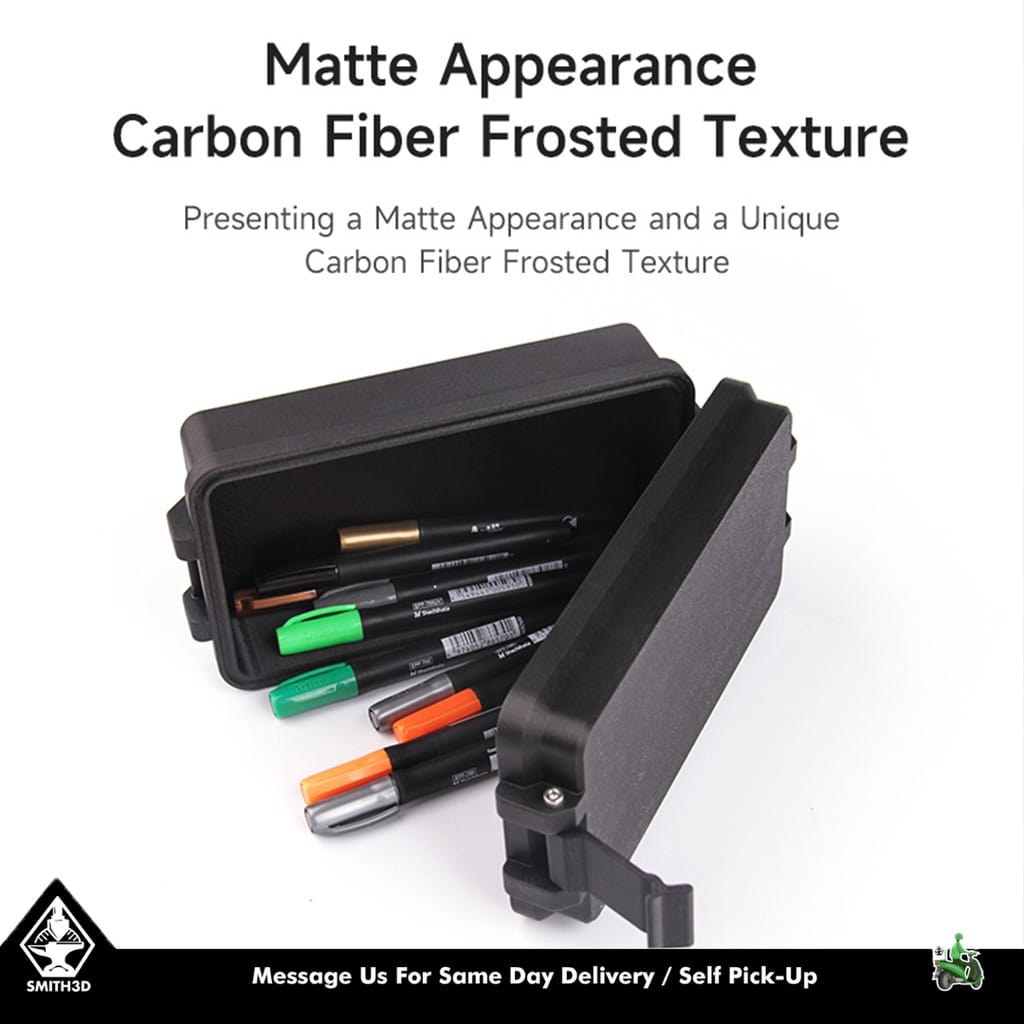

- Matte Finish – Reduced layer line visibility

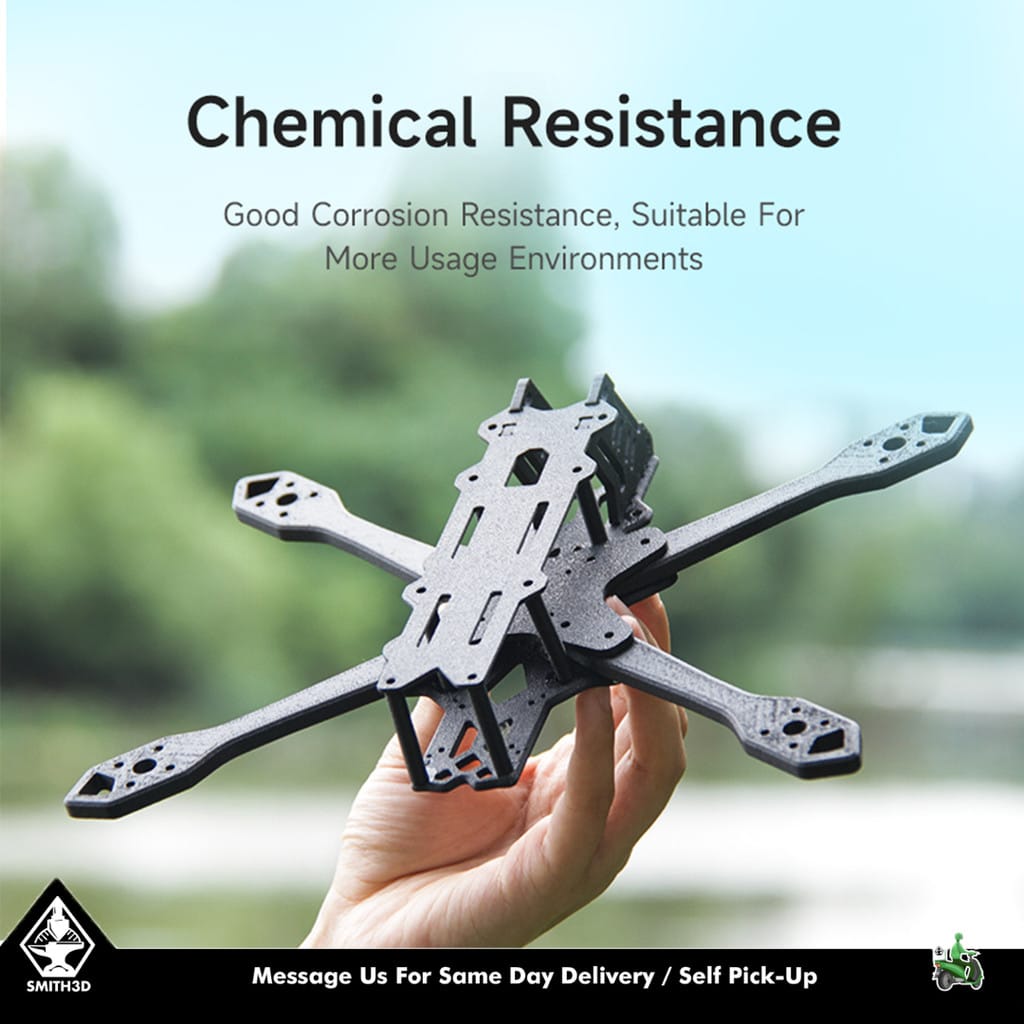

- Chemical Resistant – Withstands oils and common chemicals
- Heat Resistant – Superior thermal performance
eSUN ABS CF Printing Parameters
| Parameter | Recommended Value | Notes |
|---|---|---|
| Nozzle Temperature | 240-270°C | Start at 255°C |
| Bed Temperature | 90-110°C | 100°C typical |
| Print Speed | 40-80mm/s | Slower for detail |
| Chamber Temperature | 50-60°C | Enclosed required |
| Nozzle Type | Hardened Steel | Required (abrasive) |
Requirements
Essential Requirements for ABS CF:
|
eSUN ABS CF Material Properties
| Property | Value |
|---|---|
| Tensile Strength | 75 MPa |
| Elongation at Break | 3% |
| Flexural Strength | 120 MPa |
| Flexural Modulus | 5000 MPa |
| Impact Strength | 30 kJ/m² |
| Density | 1.10 g/cm³ |
ABS CF vs Standard ABS Comparison
| Property | ABS CF | Standard ABS |
|---|---|---|
| Stiffness | Very High (5000 MPa) | Moderate (~2000 MPa) |
| Weight | Lighter (1.10 g/cm³) | 1.04-1.06 g/cm³ |
| Surface Finish | Matte (less layer lines) | Glossy |
| Warping | Reduced | Higher |
ABS CF Applications
- 3D Printer Parts – Tool heads, mounts, brackets
- Drone Components – Frames, arms, landing gear
- Industrial Jigs – Fixtures, guides, tooling
- Aeromodeling – RC aircraft components
- Engineering Prototypes – High-stiffness test parts
- Automotive Parts – Under-hood components
ABS CF Printing Tips
- Preheat Chamber – Run enclosed printer 15 minutes before printing.
- Use Adhesive – ABS slurry or specialized bed adhesive recommended.
- Print First Layer Slow – 20-30mm/s for good adhesion.
- Keep Filament Dry – Store with desiccant, dry at 60°C if needed.
- Replace Nozzle – Check for wear every ~500g printed.
eSUN ABS CF Specifications
| Brand | eSUN |
| Material | ABS + Carbon Fiber |
| Diameter | 1.75mm |
| Weight | 1kg |
| Requirements | Enclosed printer, Hardened steel nozzle |
eSUN ABS CF FAQ
Q: Why do I need a hardened steel nozzle?
A: Carbon fiber is highly abrasive and will wear through a brass nozzle in just a few prints. Hardened steel or ruby-tipped nozzles are required.
Q: Is ABS CF more brittle than standard ABS?
A: ABS CF is stiffer but has lower elongation (3% vs ~6%). It’s rigid rather than flexible, which is ideal for structural parts but not for impact-absorbing applications.
Q: Can I print ABS CF without an enclosure?
A: Not recommended. Without an enclosure, the temperature differential causes severe warping and layer delamination.
