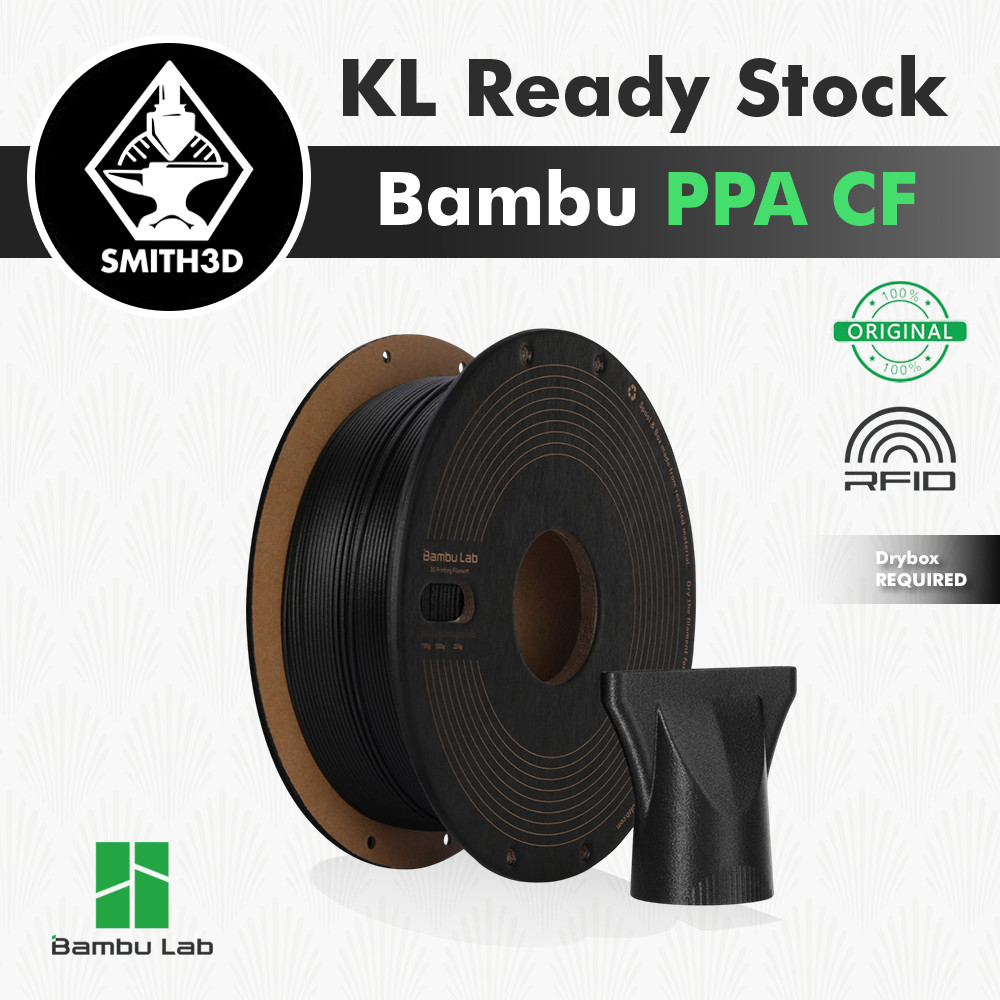

Bambu Lab PPA CF Filament 1.75mm 0.75kg
Price range: RM699.00 through RM929.00
| Key Specifications | |
|---|---|
| Specific Requirement | Enclosed Printer & Drybox |
| Printing Temperature | 280–310 ºC |
| Bed Temperature | 100–120 ºC |
| Printing Speed | < 100 mm/s |
| Chamber Temperature | 50–80 ºC |
| Density | 1.25 g/cm³ |
| Heat Distortion Temperature | 196 ºC (1.8 MPa) |
| Melt Flow Index | 8.4 ± 0.7 g/10 min (280 ºC, 2.16 kg) |
| Tensile Strength | 168 ± 4 MPa |
| Elongation at Break | 3.2 ± 0.4 % |
| Flexural Strength | 208 ± 6 MPa |
| Flexural Modulus | 9860 ± 480 MPa |
| Impact Strength | 41.7 ± 2.8 kJ/m² |
Order Info
- Order will be shipped out from our KL warehouse in 1-3 business days once being processed.
- If you need Lalamove once purchased, WhatsApp to our phone for quick arrange delivery.
Bambu Lab PPA CF Filament 1.75mm 0.75kg – High-Temperature Carbon Fiber Reinforced
Bambu Lab PPA CF is a premium high-temperature carbon fiber reinforced filament offering exceptional heat resistance up to 227°C, superior chemical resistance, and metal-approaching strength. This engineering-grade material is 48% stronger and 102% stiffer than standard PA6-CF, making it ideal for demanding industrial applications.
With its excellent humidity resistance (66% lower moisture absorption than PA6-CF), PPA CF maintains dimensional stability in harsh environments including underwater applications. Perfect for automotive, aerospace, and chemical-resistant applications.
Bambu Lab PPA CF Key Features
- 227°C Heat Resistance – Exceptional thermal stability
- 48% Stronger – Than standard PA6-CF
- 102% Stiffer – Superior rigidity
- Chemical Resistant – Acids, alkalis, organic solvents
- Low Moisture Absorption – 66% less than PA6-CF
- Carbon Fiber Reinforced – Enhanced mechanical properties
Bambu Lab PPA CF Printing Parameters
| Parameter | Recommended Value | Notes |
|---|---|---|
| Nozzle Temperature | 280-310°C | High temp required |
| Bed Temperature | 90-110°C | High temp bed needed |
| Chamber Temperature | 50-80°C | Enclosure required |
| Nozzle Type | Hardened Steel Required | Carbon fiber is abrasive |
| Print Speed | 40-80mm/s | Moderate speed |
Printer Requirements
PPA CF Printer Requirements:
|

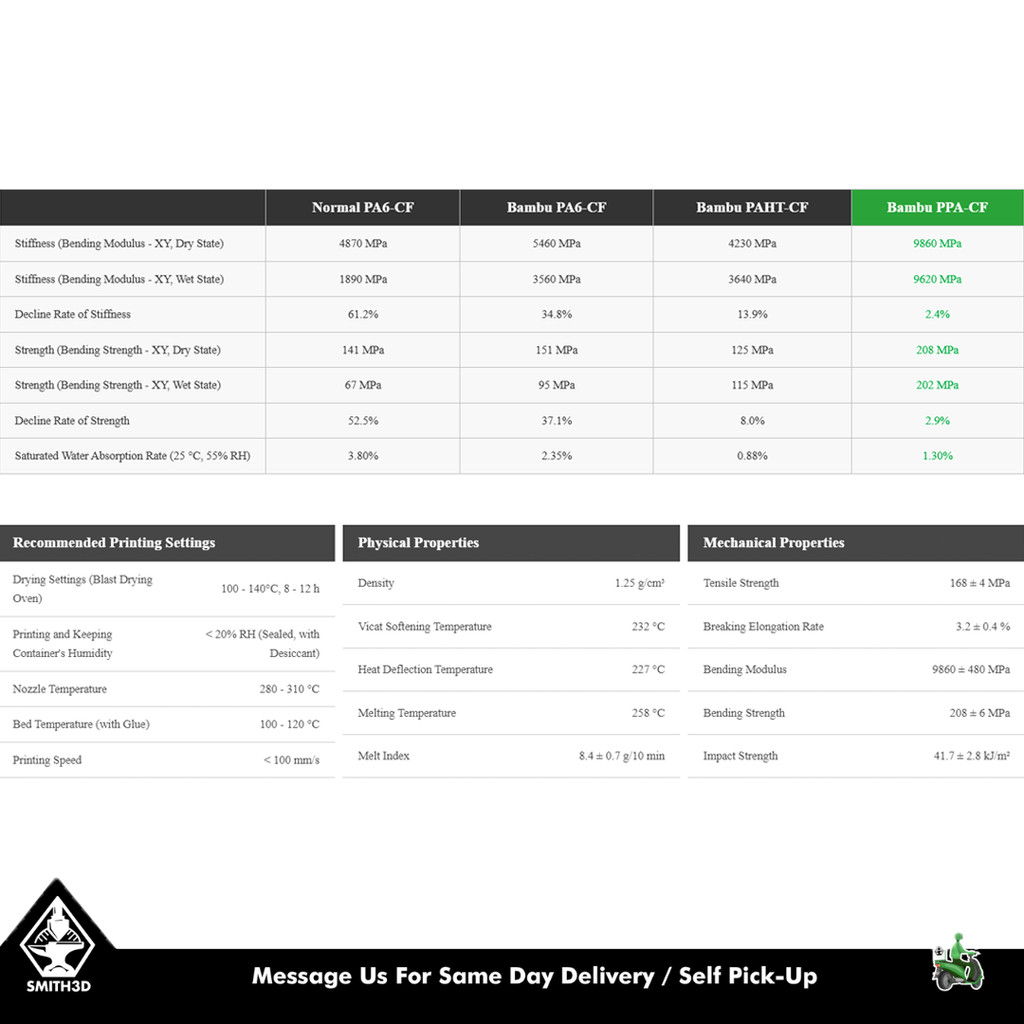

PPA CF vs PA6-CF Comparison
| Property | PA6-CF | PPA CF |
|---|---|---|
| Heat Resistance | ~150°C | 227°C |
| Strength | Baseline | +48% |
| Stiffness | Baseline | +102% |
| Moisture Absorption | Baseline | -66% |
Bambu Lab PPA CF Applications
- Automotive – Sensor housings, mirror brackets, engine bay components
- Aerospace – Lightweight structural components
- Drones & Robotics – Propellers, gear joints, frames
- Electronics – High-precision connectors, housings
- Chemical Equipment – Acid/alkali resistant parts
- Industrial Tooling – Jigs, fixtures, end-use parts
Bambu Lab PPA CF Specifications
| Brand | Bambu Lab |
| Material | PPA CF (Carbon Fiber Reinforced PPA) |
| Diameter | 1.75mm |
| Net Weight | 0.75kg per spool |
| Heat Deflection | 227°C |
| Drying Temp | 100-140°C for 8-12 hours |
| Annealing Temp | 120-140°C for 6-12 hours |
Bambu Lab PPA CF FAQ
Q: What printers can use PPA CF?
A: Compatible with Bambu Lab P1S, X1C, and X1E. Requires enclosed chamber and hardened steel nozzle. Not compatible with open-frame printers.
Q: Do I need to dry PPA CF before printing?
A: Yes, always. Dry at 100-140°C for 8-12 hours before printing. PPA CF is hygroscopic and will absorb moisture, affecting print quality.
Q: Is PPA CF worth the premium price?
A: For applications requiring extreme heat resistance (227°C), chemical resistance, or metal-approaching strength, yes. For general prototyping, consider PA6-CF instead.
Related Products
Looking for other engineering filaments? Explore our collections:
- Carbon Fiber Filaments – CF reinforced
- Bambu Lab Filaments – Full range
- High-Temp Filaments – Heat resistant
- Hardened Nozzles – For abrasive materials
| Weight | 3.00 kg |
|---|---|
| Dimensions | 25.00 × 25.00 × 10.00 cm |
| Variation | PPA CF Only, PPA CF + Space Pi |
