Revopoint MIRACO Series

Price range: RM5,999.00 through RM7,999.00

Product Features

Big and Small Object Scanning
Single-shot & Continuous Modes
Up to 0.02 mm precision, 0.05 mm accuracy
48 Megapixel RGB Camera
Up to 2 hours of Scanning

Variation

Clear

Order Info

Order will be shipped out from our KL warehouse in 1-3 business days once being processed.
If you need Lalamove once purchased, WhatsApp to our phone for quick arrange delivery.

Accepted Payment Methods - Visa, Mastercard, American Express, PayPal, FPX, Atome

SKU: REVOPOINT-MIRACOSERIES Category: 3D Scanners Tag: Revopoint

Revopoint MIRACO Series

Scan Big or Small — Revopoint MIRACO Delivers Every Detail.

All-In-One Scanning

Freely switch between Far-mode and Near-mode mid-scan. Near-mode is great for capturing intricate details in specific areas or small objects, while Far-mode excels at quickly capturing entire objects.

Surgical Accuracy

Switch mid-scan between capturing fine detail with a single-frame accuracy of up to 0.05 mm or capturing large areas with a single-frame accuracy of up to 0.3 mm.

All-In-One Workflow

Capture and create photogrammetric models all one device with the Photogrammetric Metrology Kit’s (PMK) two sets of coded targets (magnetic and sticky), 4 magnetic carbon fiber scale bars, and the MIRACO’s 48-megapixel RGB camera, powerful hardware, and advanced algorithms.

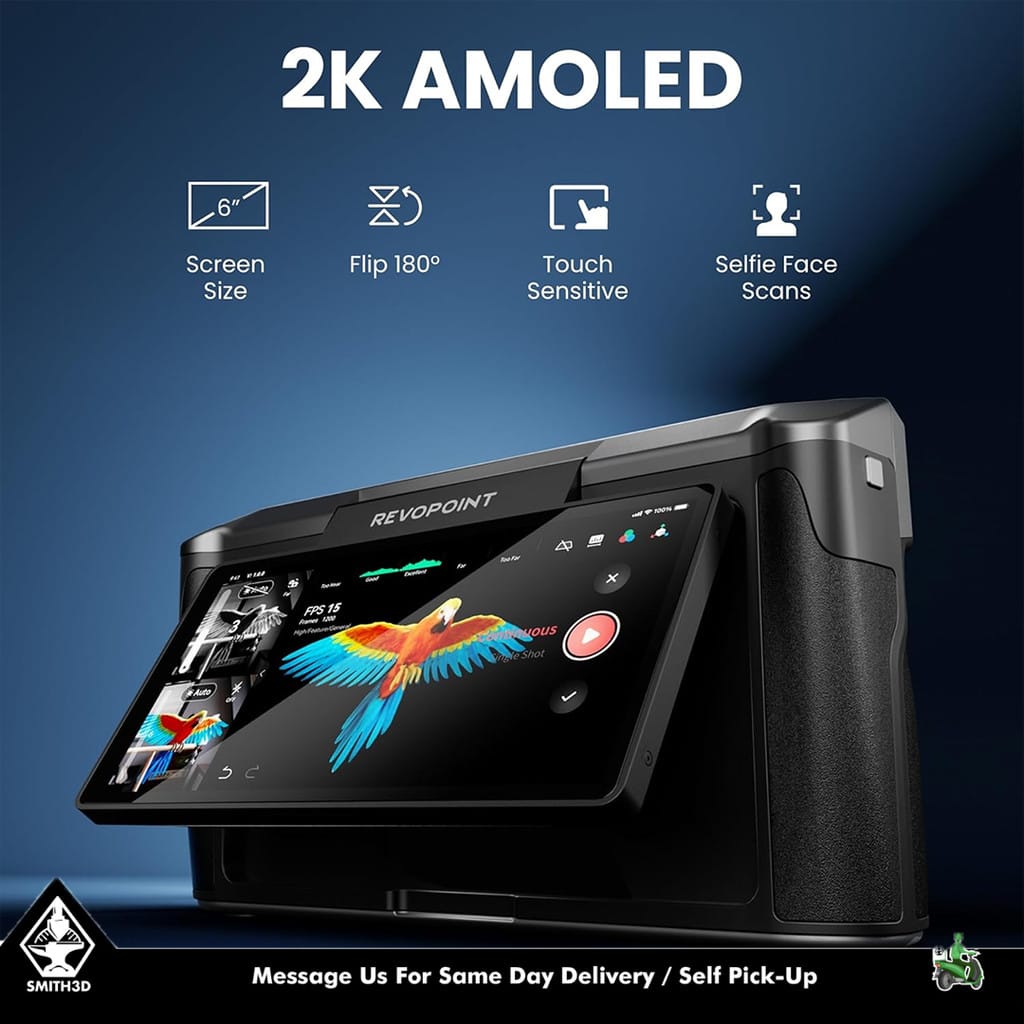

Your Scanning Portal

See your scans with crystal clarity on Revopoint MIRACO’s 6” 2k backlit AMOLED touch-sensitive screen. Its 180° adjustable screen allows easy viewing from any angle and can flipped for selfie scans.

Screen Size

180° Adjustable Screen

Eye-popping Color

Create eye-catching colored 3D models with Revopoint MIRACO’s 48-megapixel RGB Camera.

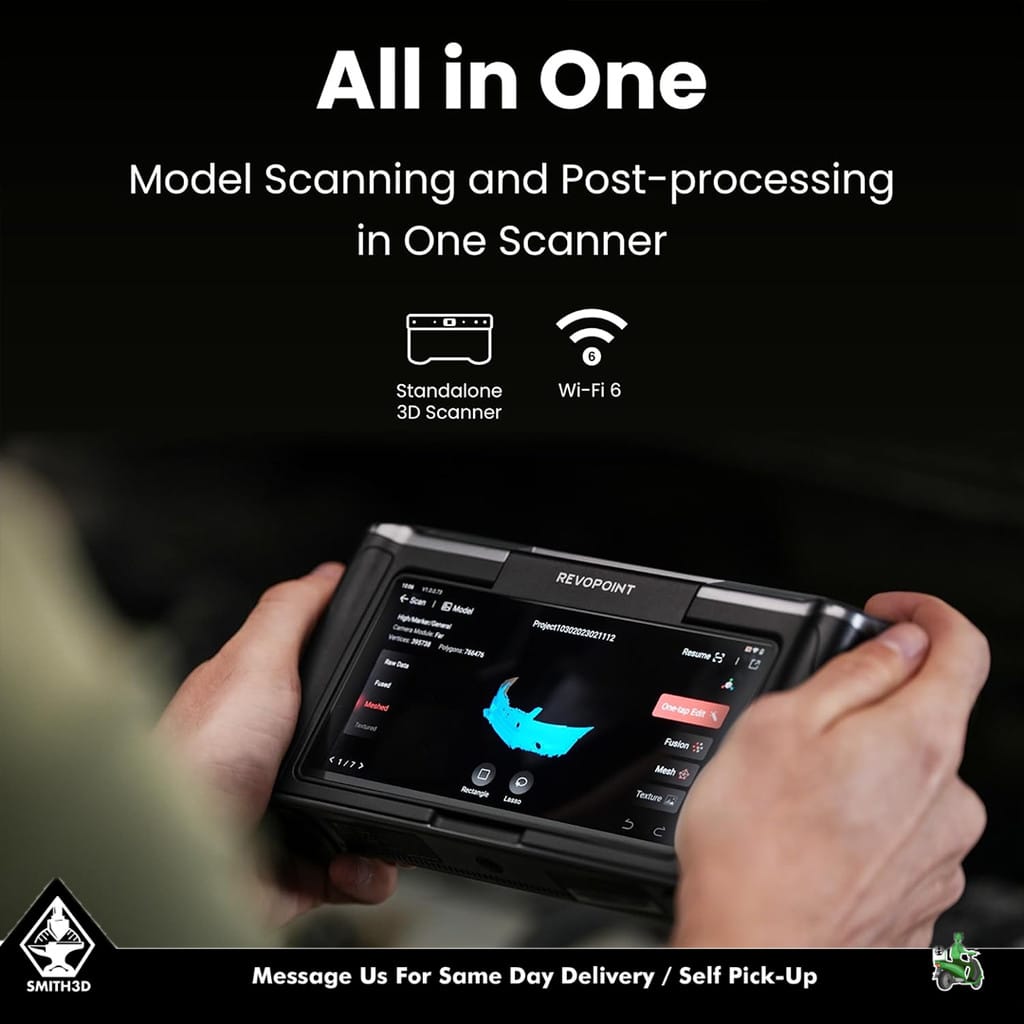

Capture and Post-process Directly

Perform fusion, meshing, and editing without transferring your project to a PC

Screen Mirroring

Connect Revopoint MIRACO to TVs or monitors.

Long Scans, Fast Charging

Power up Revopoint MIRACO to 80% in only 35 mins with 65W fast charging.

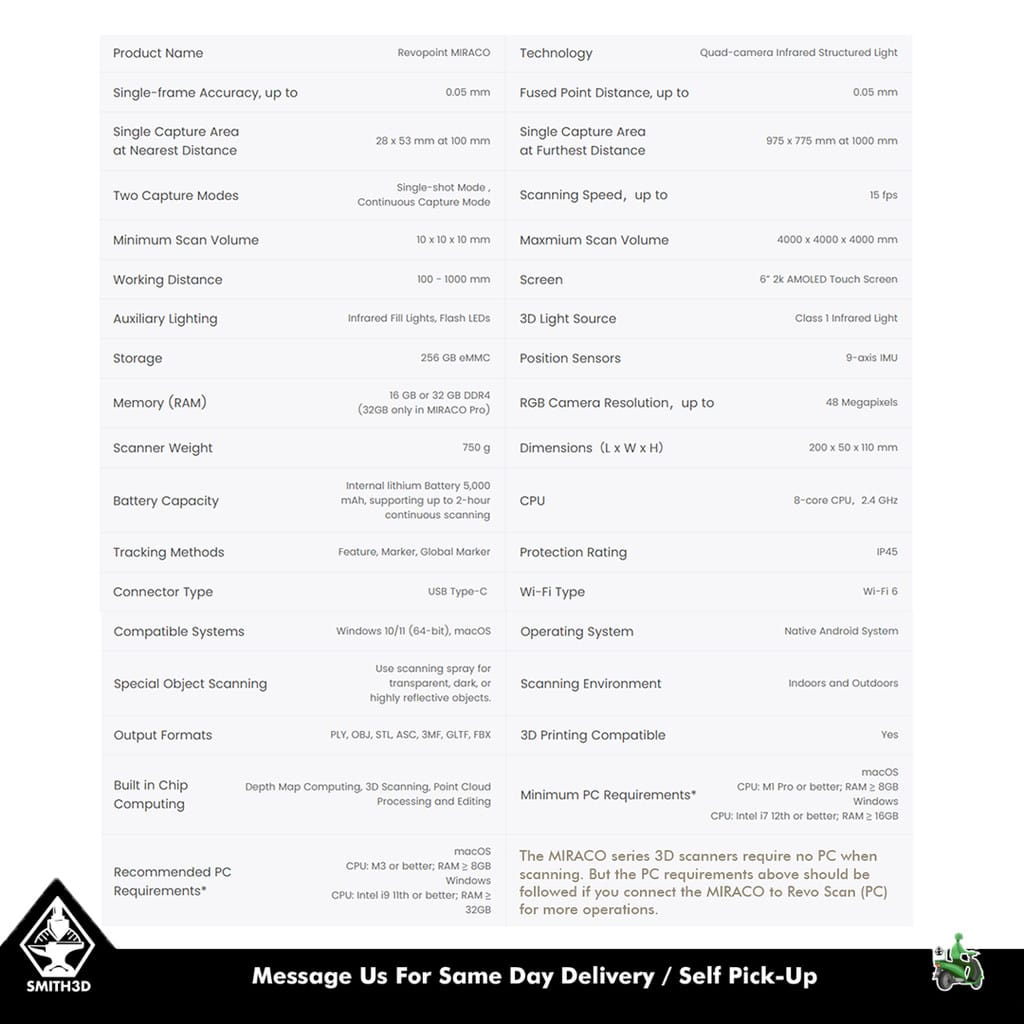

Detailed Features and Specification

	Revopoint MIRACO	Creality CR-Scan Raptor	Creality CR-Scan Otter
Technology	Quad-camera infrared structured light	Blue laser lines + NIR structured light	Infrared structured light (four-lens stereo vision)
Accuracy	Single-frame up to 0.05 mm; Fused point 0.05 mm	Up to 0.02 mm (laser); Up to 0.10 mm (NIR at 100 mm)	Up to 0.02 mm @ 60 mm
Precision / Point Distance	Fused point distance up to 0.05 mm	Not specified	3D resolution: 0.05–2 mm
Scanning Speed	Up to 15 fps	Up to 60 fps (laser) 20 fps (NIR)	Up to 20 fps
Capture Area	28×53 mm @100 mm (min) to 975×775 mm @1000 mm (max)	Varies by distance (e.g. 270×170 @300 mm etc.)	Max 1350×840 mm @1000 mm
Scan Volume Range	10×10×10 mm (min) to 4000×4000×4000 mm (max)	5–2000 mm objects	10×10×10 mm (min) up to ~2 m³
Working Distance	100–1000 mm	150–400 mm (laser) 170–1000 mm (NIR)	110–1000 mm
Display / Interface	6″ 2K AMOLED touch screen (standalone Android OS)	USB-C (requires PC)	USB-C / USB 3.0
Auxiliary Lighting	Infrared fill lights, flash LEDs	Not specified	2 white LEDs 8 IR LEDs
Weight / Dimensions	750 g 200×50×110 mm	372 g 215×50×74 mm	390 g 165×37×59 mm
Battery / Power	Internal lithium 5,000 mAh—up to 2 h scanning	Requires external USB power (PC)	Powered via USB—no battery
Connectivity	Wi-Fi 6 + USB-C	USB-C	USB-C / USB 3.0
Storage / RAM	256 GB eMMC; 16 GB (standard) or 32 GB RAM (Pro)	Requires PC	Requires PC
System / OS	Standalone Android; Windows/macOS compatible exports	Windows/macOS (PC required)	Windows/macOS (PC required)
