ELEGOO Saturn 4 Ultra

Price range: RM1,999.00 through RM2,499.00

Product Features

Innovative Tilt Release Technology
10-inch 12K Monochrome LCD
COB + Fresnel Collimating Lens
Auto-leveling and Intelligent Mechanical Sensors

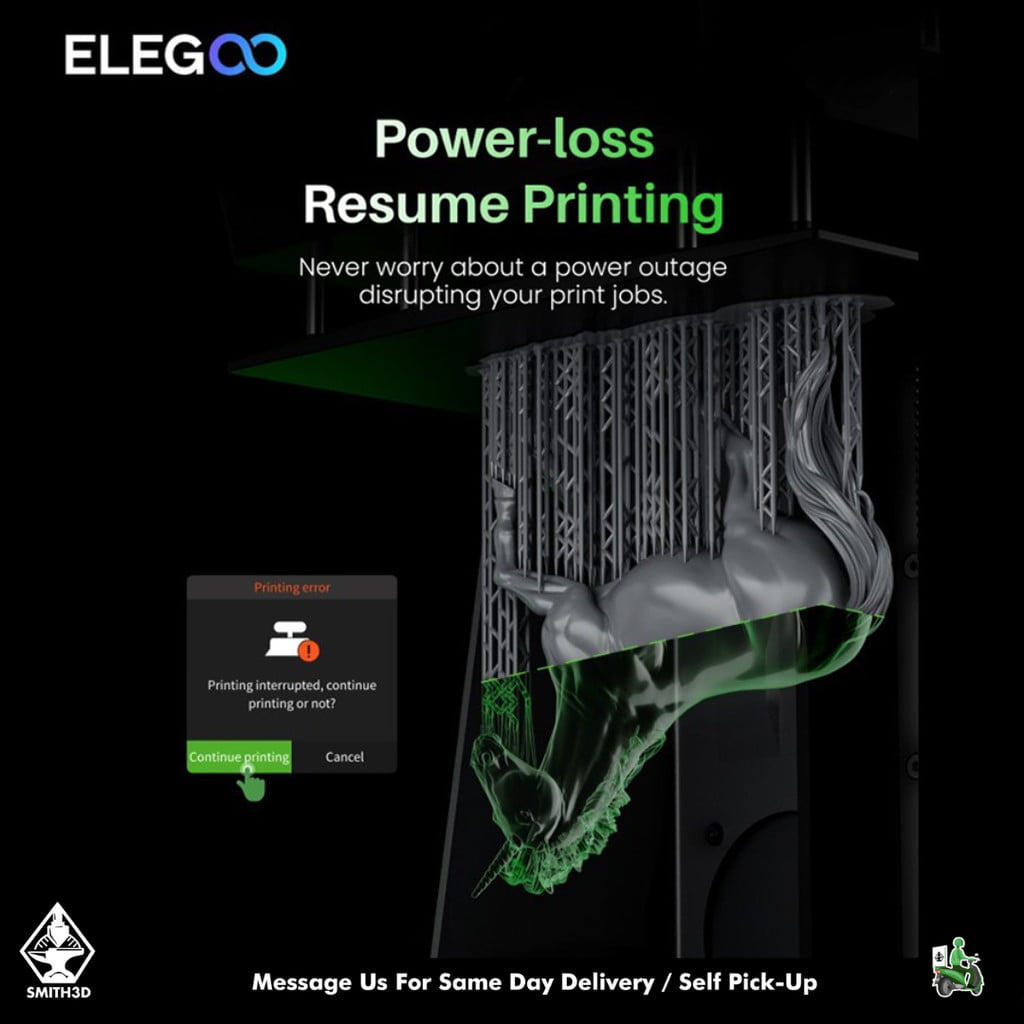

AI Intelligent Monitoring & Power Loss Resume Printing

Variation

Clear

Order Info

Order will be shipped out from our KL warehouse in 1-3 business days once being processed.
If you need Lalamove once purchased, WhatsApp to our phone for quick arrange delivery.

Accepted Payment Methods - Visa, Mastercard, American Express, PayPal, FPX, Atome

SKU: ELEGOO-SATURN-4-ULTRA-PAR Categories: 3D Printers, Resin Printers Tag: Elegoo

Smarter Prints. Sharper Details – Where AI Meets 12K Precision

S4U

Tilt Release Technology

10-inch 12K Mono LCD

COB + Fresnel Collimating Lens

AI Monitoring

Mechanical Sensor

Auto Leveling

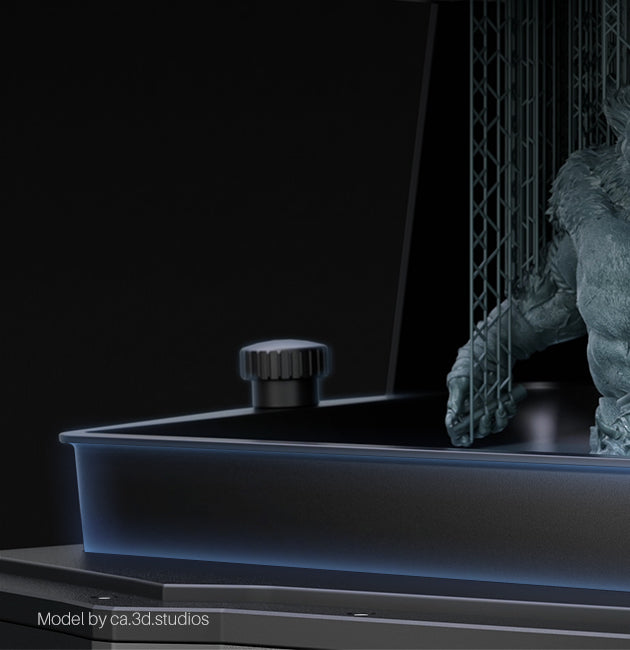

The Elegoo Saturn 4 Ultra adopts tilt release technology, which enables the model to be peeled off from the release film quickly by tilting the resin tank, achieving a fast printing speed up to 150 mm/h.

With a 10-inch 12K mono LCD, the Saturn 4 Ultra boasts an incredible resolution of 11520×5120 and an XY resolution of 19×24 μm, presenting you exquisite models with stunning clarity and precision.

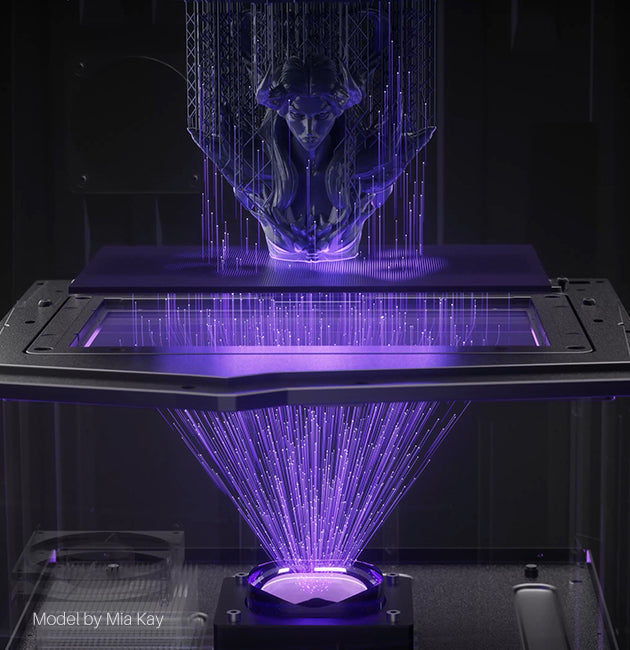

When the COB light source emits 405 nm light through the Fresnel collimating lens, it achieves ≤ 0.5% astigmatism, 92% field uniformity, and < 5° angle deviation, delivering accurate, even prints with delicate finishes.

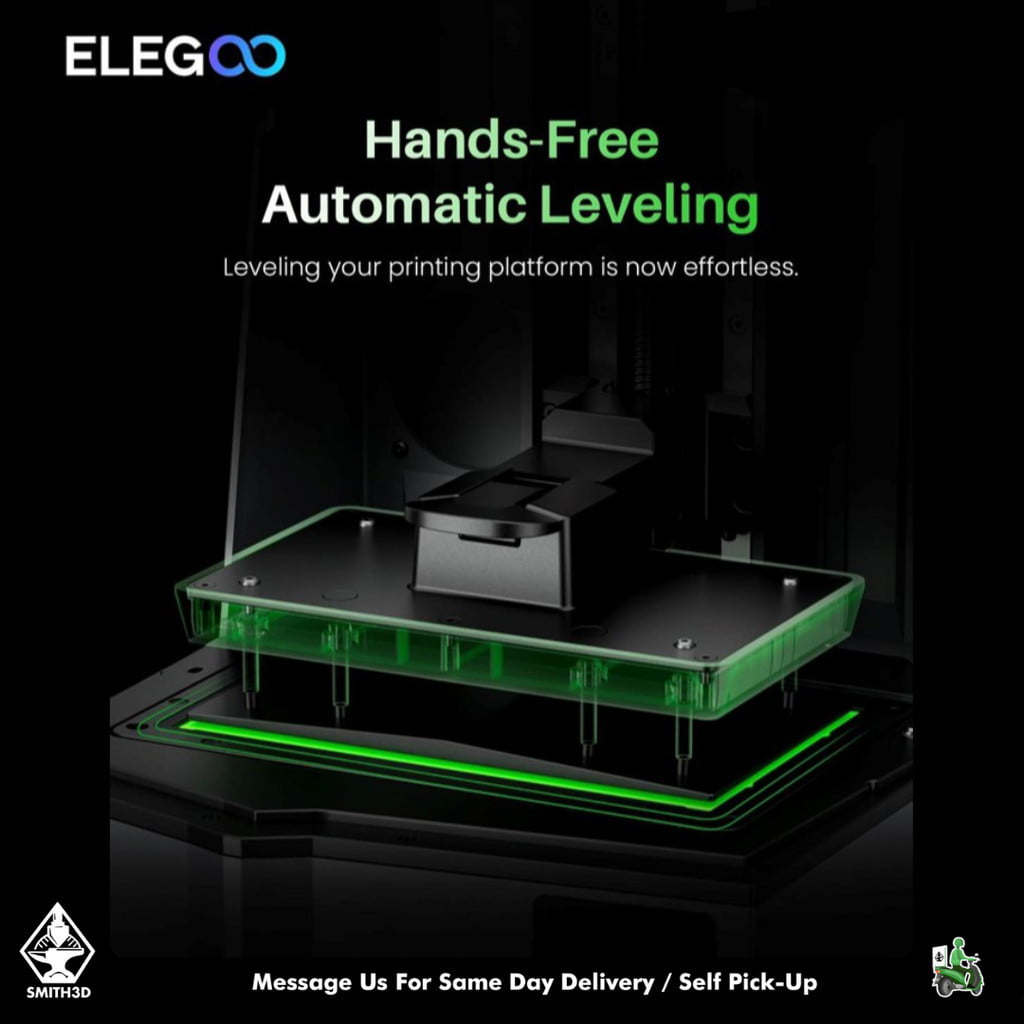

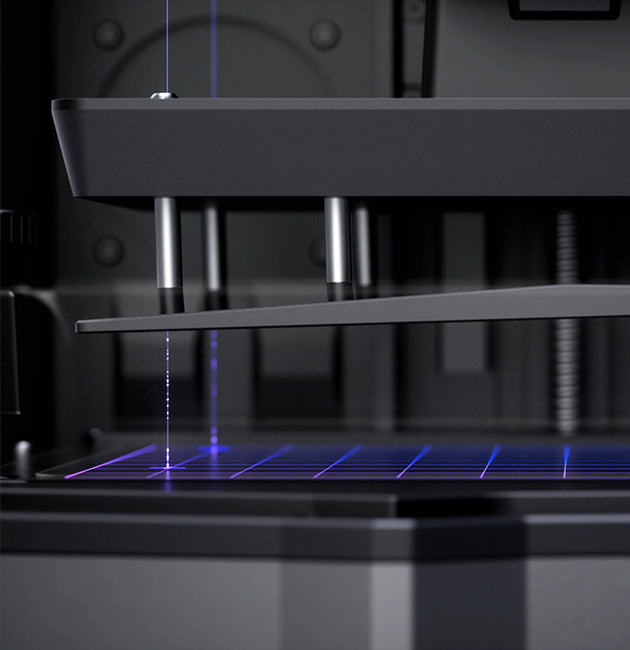

The Saturn 4 Ultra’s smart self-check and auto-leveling mean you can unbox, power on, and start printing immediately—for an effortless, reliable experience every time.

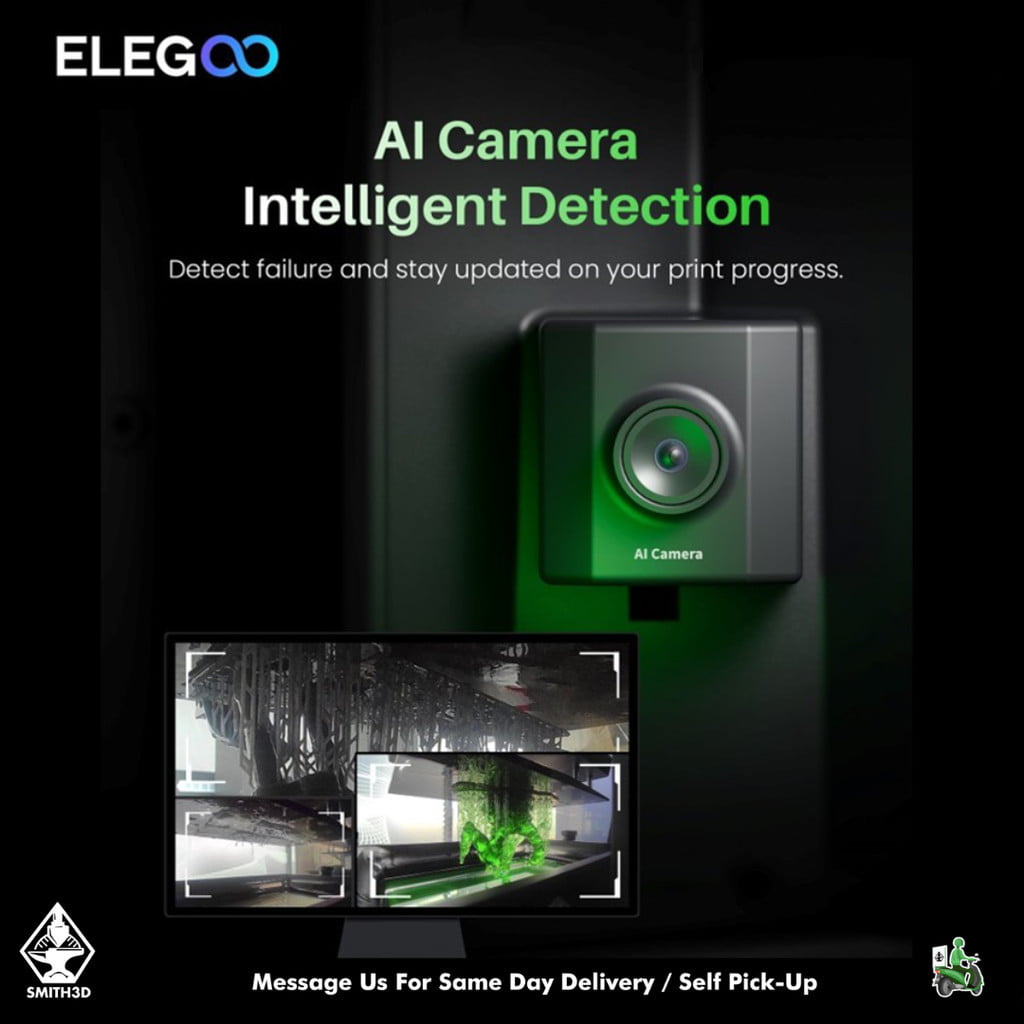

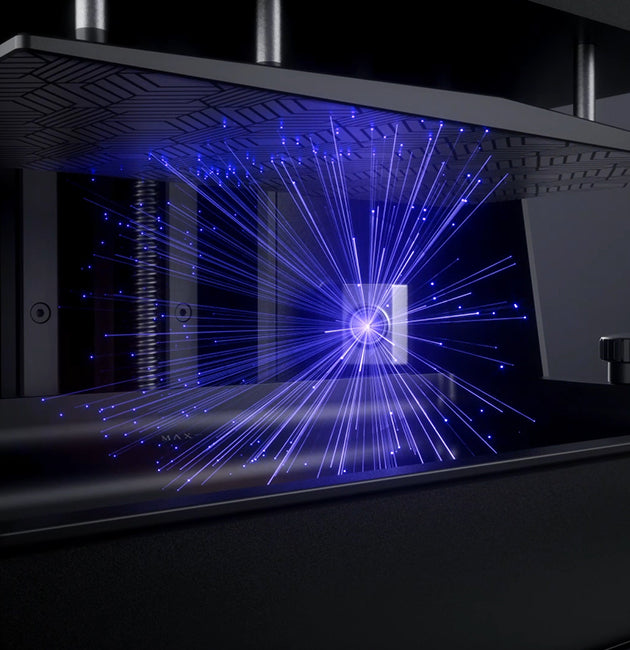

Monitor your print in real time and detect failures instantly with the onboard AI camera—plus capture stunning time-lapse videos to showcase your creations.

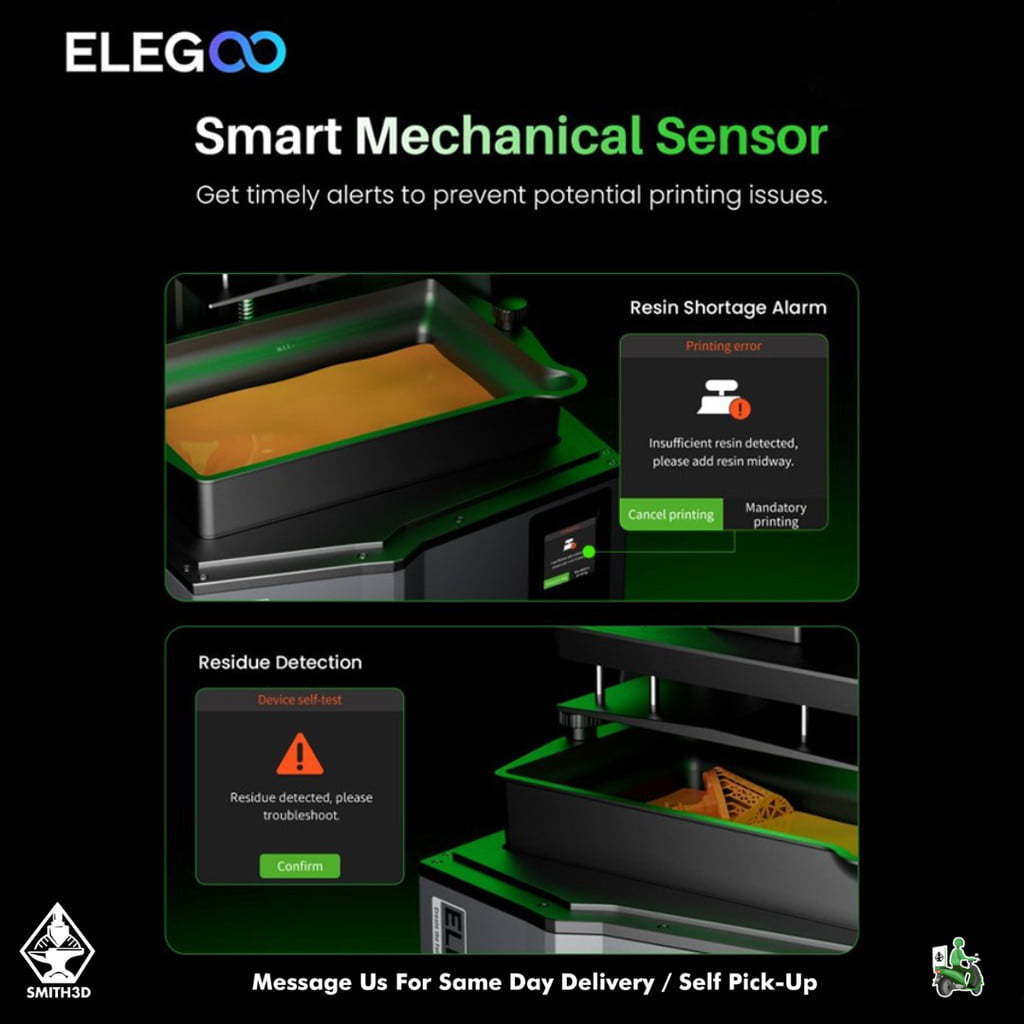

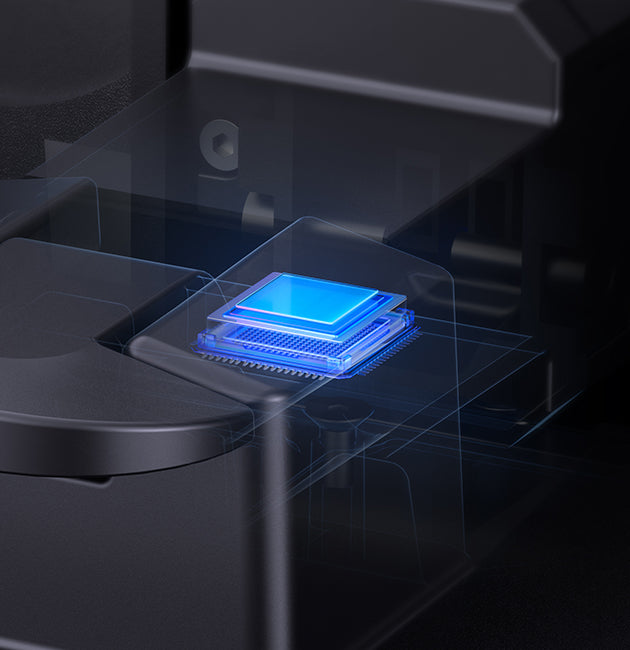

Built-in mechanical sensing prevents LCD damage, detects resin shortages, and alarms leveling failures—keeping your prints safe and uninterrupted.

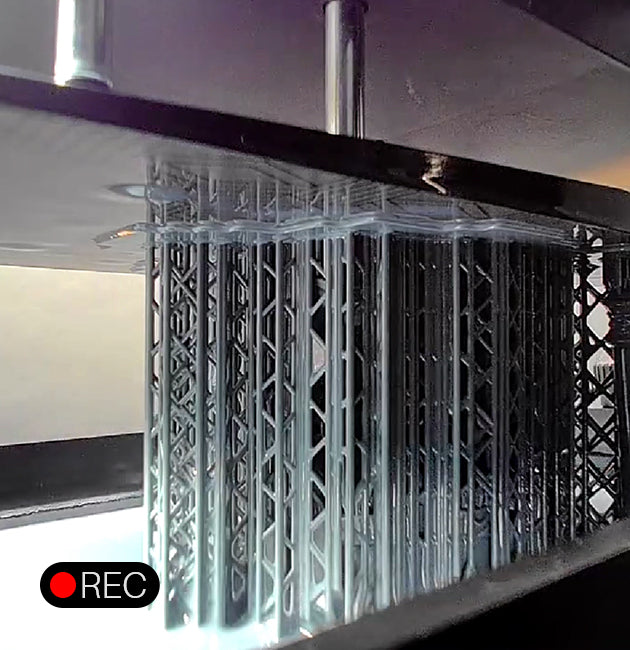

Stay on top of your print’s progress at a glance, and record breathtaking time-lapse videos to share the magic of your 3D prints in action.

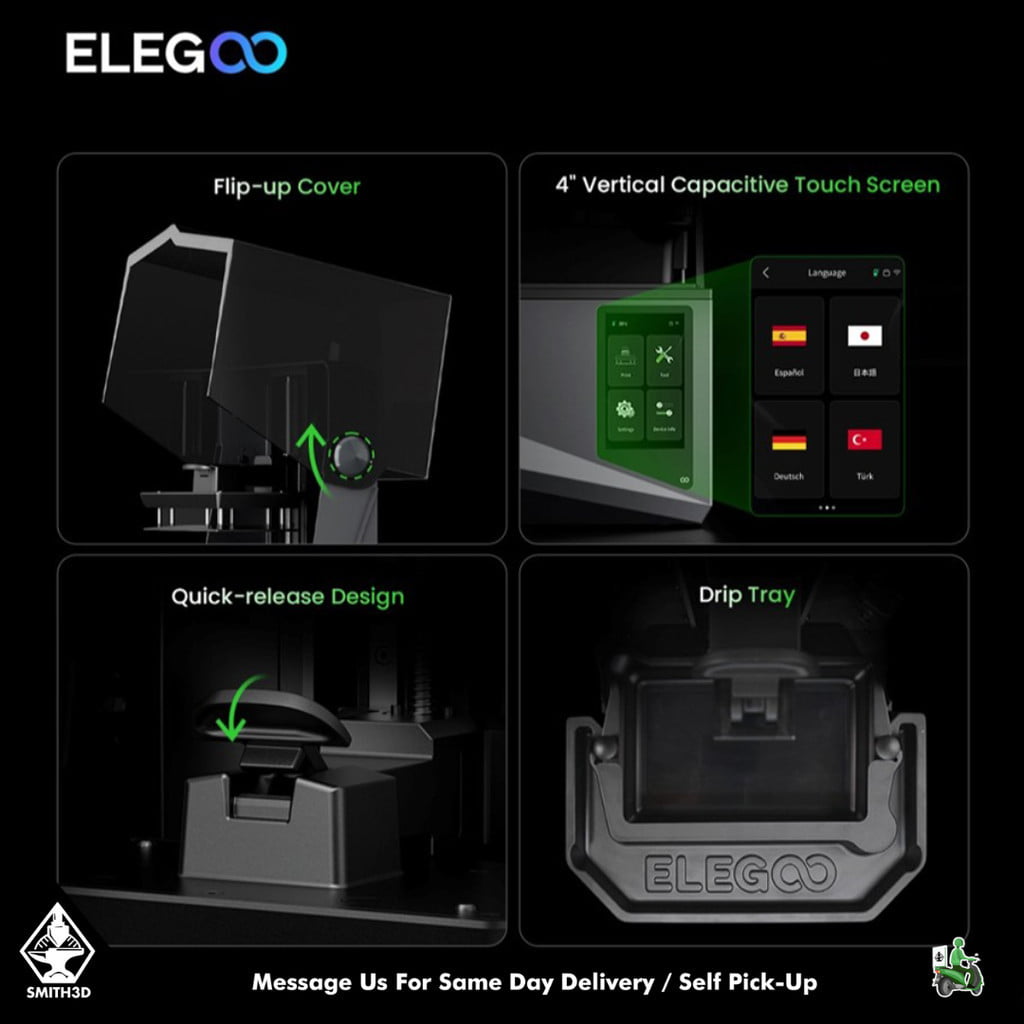

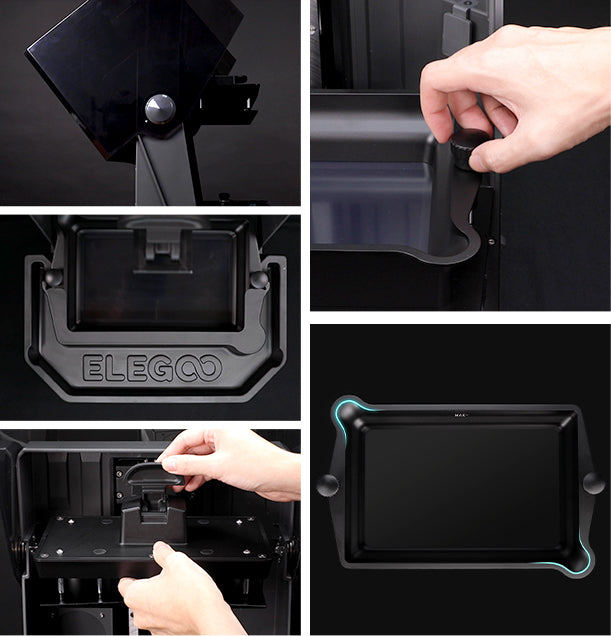

From the quick-release build plate to dual pour spouts, drip tray, replaceable tank lock, and flip-up cover, every detail is crafted to make printing smoother and more comfortable.

More Features

Wi-Fi Cluster Printing

Self-Developed System

Capacitive Touch Screen

PFA Release Film

Compatible With Mars Mate

Classic And Durable Design

Detailed Features and Specification

	Saturn 4 Ultra 12K	Photon Mono M7	Photon Mono M5S Pro
Printing Method	Tilt-Based SLA Print	Standard SLA Print
Build Volume	218.88 × 122.88 × 220 mm	223 × 126 × 230 mm	223.78 × 126.38 × 200 mm
Printing Speed	Up to 150 mm/h	Standard 90 mm/h · HS 150 mm/h	≈ 105 mm/h
Layer Thickness	0.01–0.2 mm	≥ 0.01 mm	0.01–0.15 mm
XY Resolution	19 × 24 µm (11,520 × 5,120)	16.8 × 24.8 µm (14K LCD)	16.8 × 24.8 µm (14K LCD)
Z‑Axis Accuracy	0.02 mm	Leveling-free (dual rails)	Dual liners, 0.01mm
Screen	10″ 12K Mono LCD	10.1″ 14K Mono LCD
Light Source	COB + Fresnel lens, 405 nm	COB + Fresnel + reflectors (LightTurbo)	LED matrix UV
Machine Dimensions	327.4 × 329.2 × 548 mm	312 × 345 × 520 mm	290 × 270 × 460 mm
Weight	14.5 kg	12 kg	9.4 kg
Leveling	Auto-leveling	Leveling-free
Connectivity	USB, Wi‑Fi
Operating Screen	4″ capacitive touch	4.3″ color touch
Air Purifier	Mars Mate compatible	Optional ventilation hose	Built-in heater & purifier
Slicing Software	Chitubox, Voxeldance Tango, Photon Workshop
Power Consumption	24 V 6 A (~144 W)	Estimated ~180 W	Estimated ~200 W
