Anycubic Photon P1

Price range: RM2,849.00 through RM4,099.00

Key Features

  • Wave Release Technology
  • Precision-Fitted Industrial-Grade Ball Screw
  • Precision-Ground Steel Build Plate
  • Light Uniformity ＞92%
  • Engineered for Ultra-Viscous 8000cps Resin
  • Intelligent Printing Assistant 3.0

Order Info

  • Order will be shipped out from our KL warehouse in 1-3 business days once being processed.
  • If you need Lalamove once purchased, WhatsApp to our phone for quick arrange delivery.
Accepted Payment Methods - Visa, Mastercard, American Express, PayPal, FPX, Atome
SKU: ANYCUBIC-PHOTONP1 Categories: , Tag: Brand:

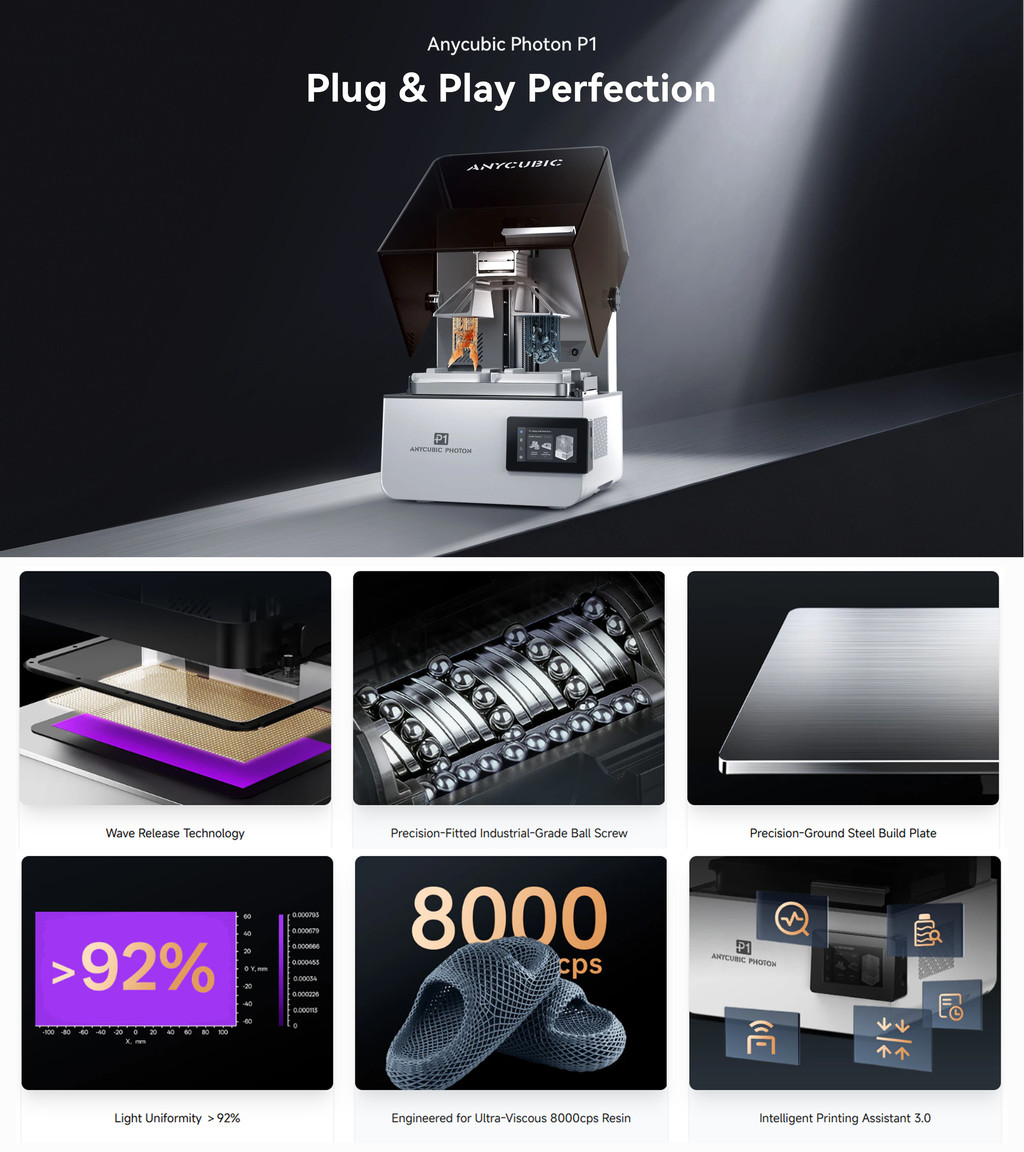

Anycubic Photon P1 Overview

Precision Made Simple — The Photon P1 brings fast, high-detail resin printing to everyday creators.

Photon P1 Features 1

Precision-Ground Steel Build Plate

Photon P1 Features 2

Light Uniformity ＞92%

Photon P1 Features 3

Wave Release Technology

Photon P1 Features 4

Engineered for Ultra-Viscous 8000cps Resin

Photon P1 Features 5

Precision-Fitted Industrial-Grade Ball Screw

Photon P1 Features 6

Intelligent Printing Assistant 3.0

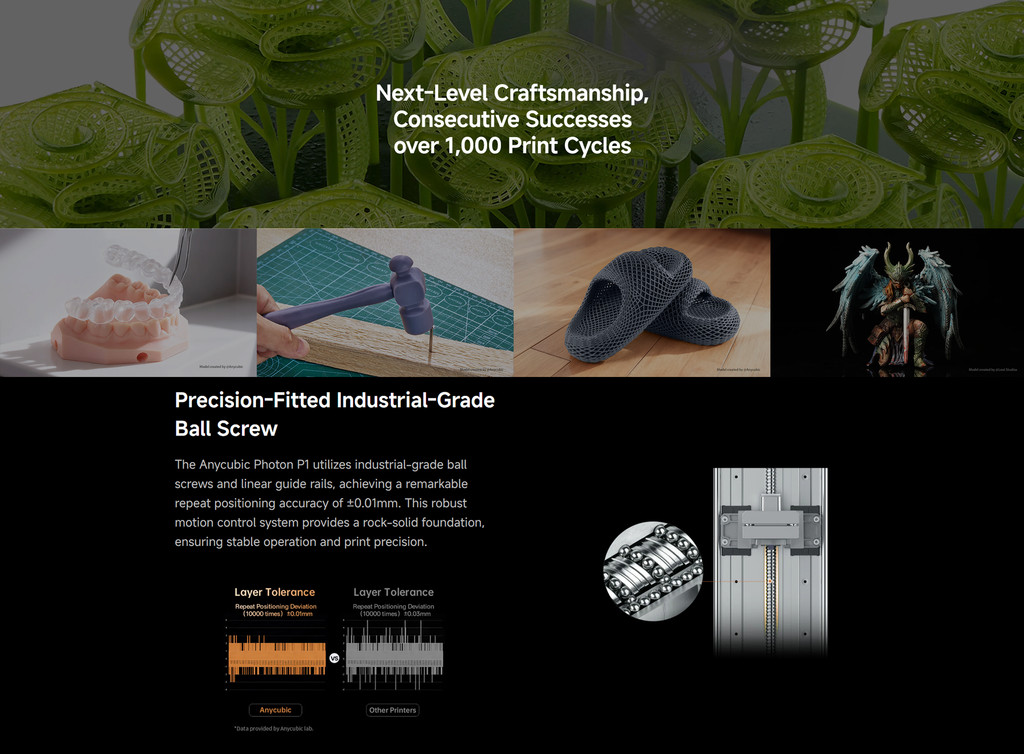

Remarkable Positioning Accuracy

Precision-Fitted Industrial-Grade Ball Screw

The Anycubic Photon P1 utilizes industrial-grade ball screws and linear guide rails, achieving a remarkable repeat positioning accuracy of ±0.01mm. This robust motion control system provides a rock-solid foundation, ensuring stable operation and print precision.

High Definition Printing Resolution

Once Blurry Edges are Now Highly Defined

Designed to capture the finest details for exquisite models, Photon P1 boasts ultra-high resolution, ensuring that every model bursts with smooth surfaces, lifelike textures and impeccable precision

13312 × 5120 PX
Resolution

16.8 × 24.8 µm
XY Resolution

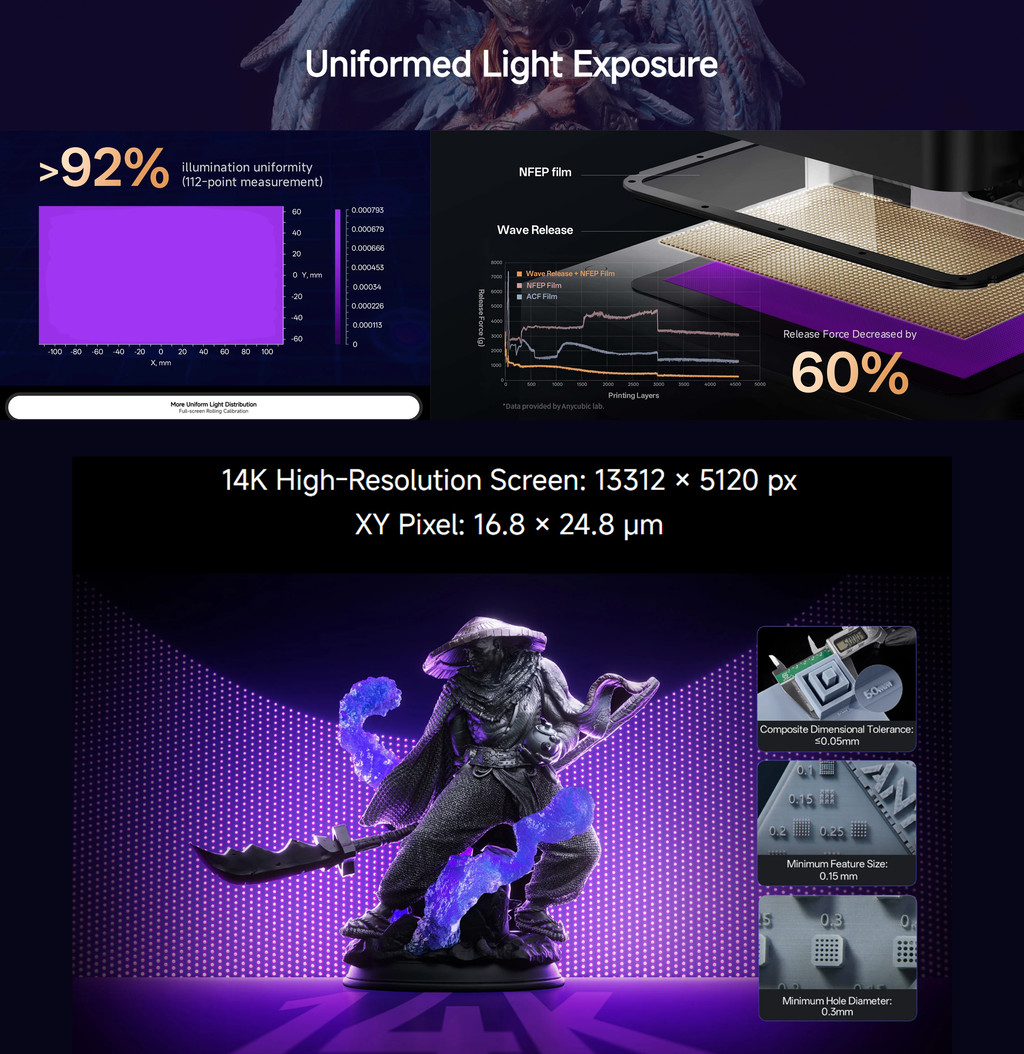

Wave Release Technology

Massive Peel Force Reduction

The Wave Release Technology reduces release force by a massive 60% compared to traditional smooth-surface NFEP film, ensuring superior print quality and consistency.

Max Productivity

Simultaneous Dual-Color/Dual-Material Printing

  • Reduces consumption of premium resin for small model printing.
  • ‌Enables simultaneous dual-material/dual-color printing for multi-part models.‌

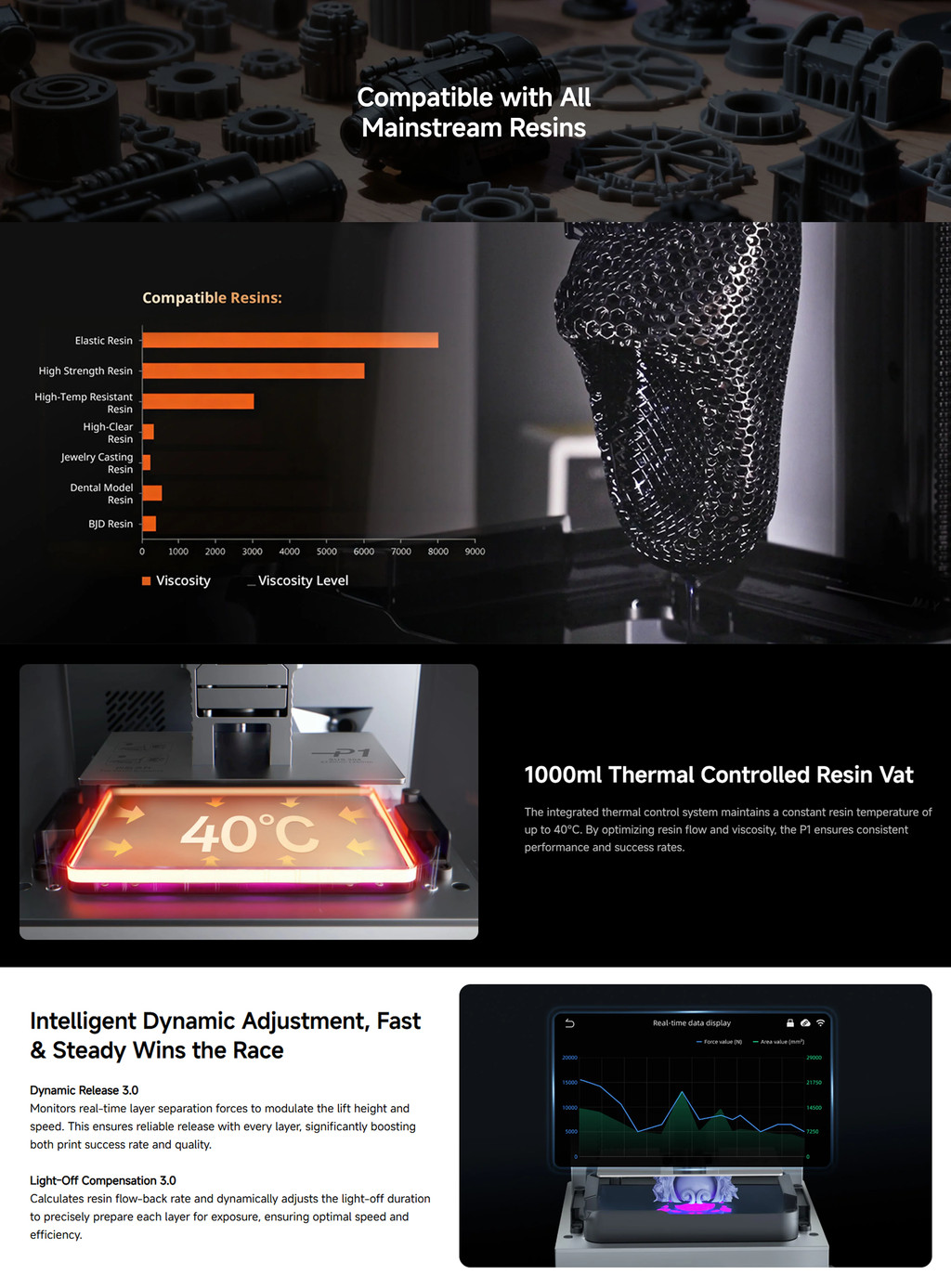

Built to Handle Ultra-Viscous 8000cps Resin

Anycubic Photon P1

Optimized Resin Flow

1000ml Thermal-Controlled Resin Vat

The integrated thermal control system maintains a constant resin temperature of up to 40°C. By optimizing resin flow and viscosity, the P1 ensures consistent performance and success rates.

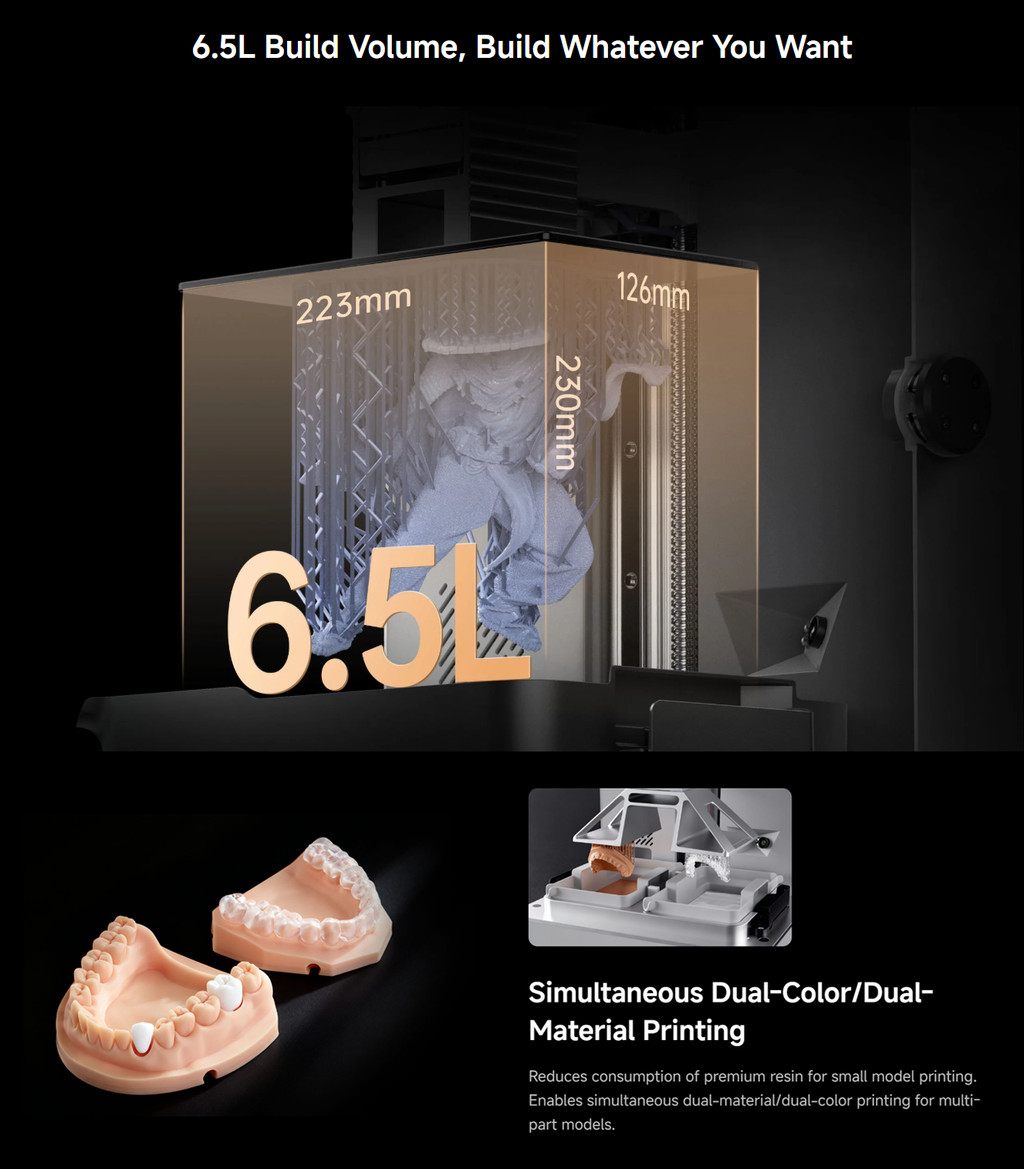

6.5L Build Volume, Build Whatever You Want

Anycubic Photon P1

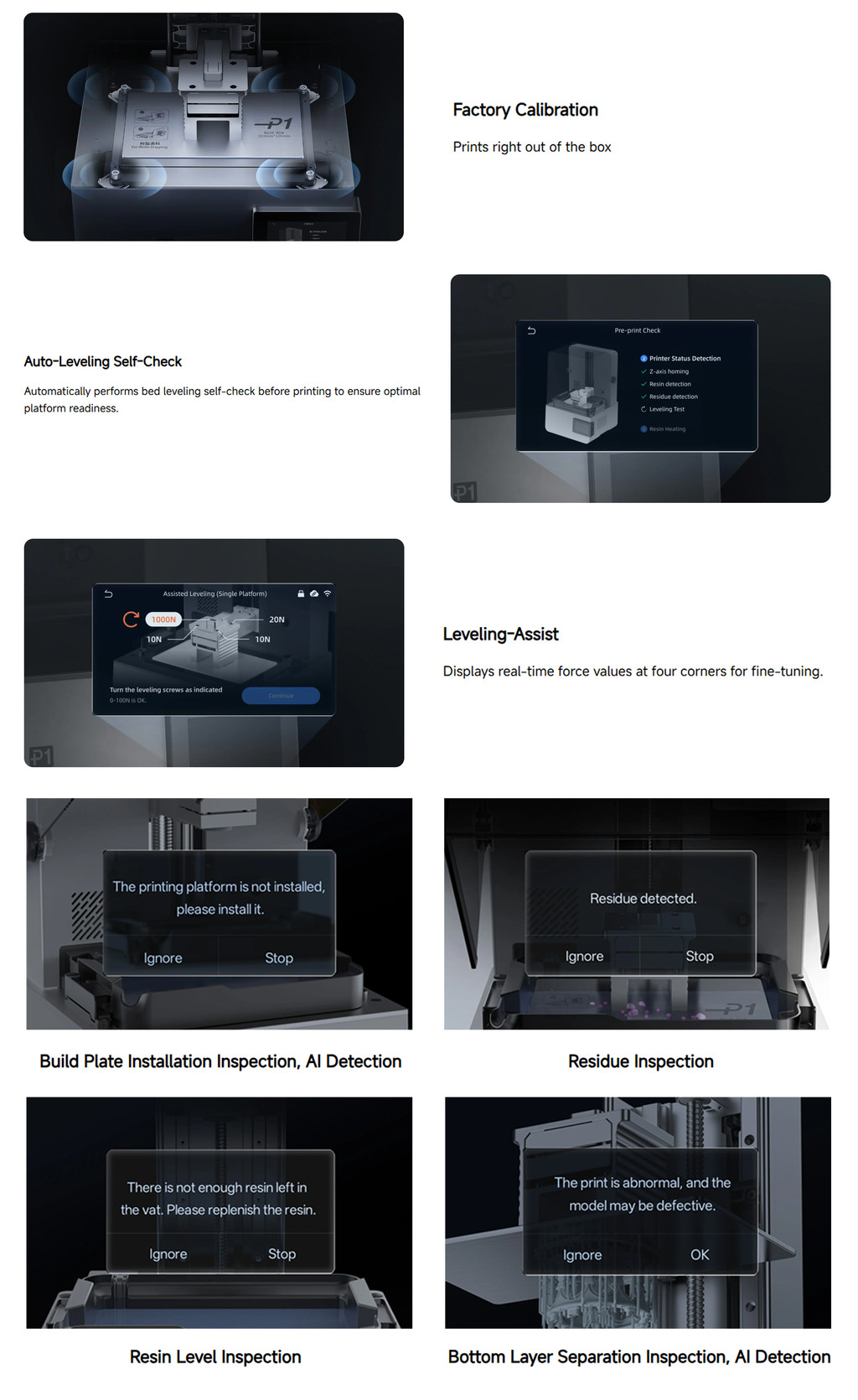

Intelligent Assistant 3.0

Press Start & Leave the Rest to the Assistant

Factory‌ Calibration
Prints right out of the box

Auto-Leveling Self-Check‌
Automatically performs bed leveling self-check before printing to ensure optimal platform readiness.

Leveling-Assist
Displays real-time force values at four corners for fine-tuning.

Intelligent Assistant 3.0 (.cont)

Additional Features

  • Build Plate Installation Inspection
  • Bottom Layer Separation Inspection
  • Resin Level Inspection
  • Residue Inspection

Intelligent Dynamic Adjustment

Fast & Steady Wins the Race

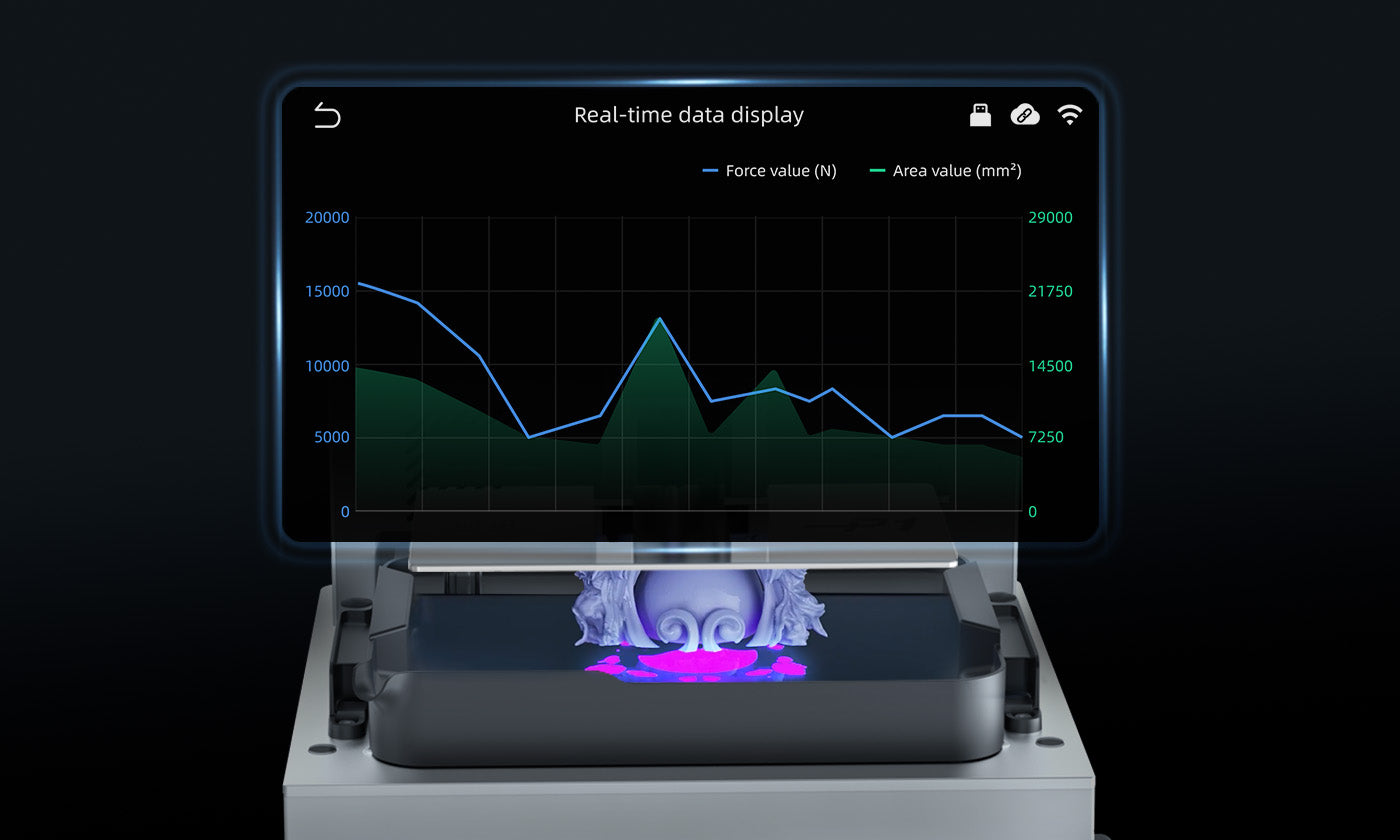

Dynamic Release 3.0

  • Monitors real-time layer separation forces to modulate the lift height and speed. This ensures reliable release with every layer, significantly boosting both print success rate and quality.

Light-Off Compensation 3.0

  • Calculates resin flow-back rate and dynamically adjusts the light-off duration to precisely prepare each layer for exposure, ensuring optimal speed and efficiency.

Large Userbase

Makeronline, One of the Biggest Online Model Libraries

  • Massive Model Library
  • Monetize Your Designs
  • Global Knowledge Exchange
  • AC Wiki Troubleshooting Expert

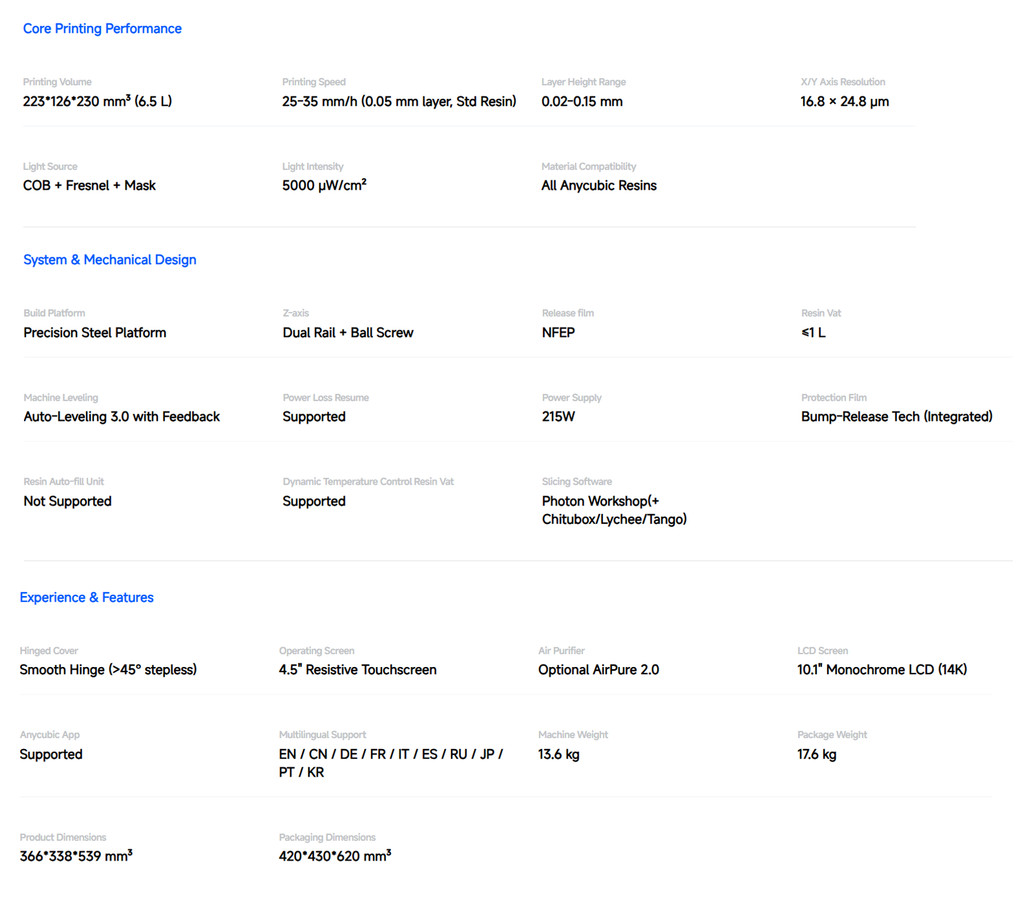

Detailed Features and Specification

Anycubic Photon P1 Saturn 4 Ultra 16K Mono 4 Ultra
Build Volume (L×W×H) 223 × 126 × 230mm³ 211.68 × 118.37 × 220mm³ 153.4 × 87 × 165mm³
LCD Screen 10.1" Monochrome LCD (14K) 10" Monochrome LCD (16K) 7" Monochrome LCD (10K)
XY Resolution 16.8 × 24.8μm 14 × 19μm 17 × 17μm
Light Source COB + Fresnel + Mask COB + Fresnel Collimating Lens COB Light Source + Fresnel Lens + Light Uniformity Algorithm
Layer Height Range 0.02–0.15mm 0.01–0.2mm 0.02–0.15mm
Build Platform Precision Steel Platform Laser-engraved Build Plate Laser-engraved Aluminum Build Plate
Default Release Film NFEP PFA ACF Film
Machine Leveling Auto-Leveling 4-point Manual Leveling
Resin Vat / Temp Control ≤1L / Controlled Heating up to 40°C Smart Tank Heating at 30°C ≤0.39L / Not Supported
Power Loss Resume Supported
Connectivity USB / WiFi / LAN USB / WiFi USB / WiFi / LAN
Operating Screen 4.5" Resistive Touchscreen 4" Capacitive Touchscreen 4.3" Touch-Control
Smart Features AI detection, residue inspection, resin level inspection AI camera, residue detection, resin shortage alarm, leveling failure alarm Failed print monitoring, resin residue monitoring, resin level monitoring
Physical Dimensions 366 × 338 × 539mm 327.4 × 329.2 × 548mm 231 × 236 × 430mm

Unboxing Video Highlights

This short video guides you through a quick unboxing experience.

*Compliant with the requirements of GB/T 70.1-2008 standard [Equivalent standards: ISO 4762, ASME/ANSI B 18.3.1M - 1986 (R1993), DIN EN ISO 12474]

What's in the box

Anycubic Photon P1

Anycubic Photon P1

 Print Platform

Print Platform

 Resin Vat

Resin Vat

 Wet Wipes

Wet Wipes

 Hex Key Set

Hex Key Set

 Protective Equipment

Protective Equipment

 Filter

Filter

 Scrapers

Scrapers

 USB Drive

USB Drive

 Power Cord

Power Cord

 User Manual

User Manual

Weight 29.00 kg
Dimensions 59.00 × 60.00 × 91.00 cm
Package

Photon P1 Only, + 1KG Resin, + Resin + W&C 3, + Resin + W&C 3 Plus
Plate Type

Single Plate Only, + Dual Plate Kit
