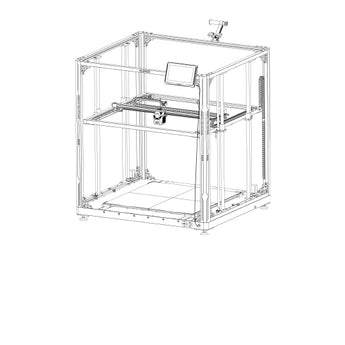

ELEGOO OrangeStorm Giga

RM12,499.00

Product Features

Gigantic Build Volume: 800mm × 800mm × 1000mm
Efficient Heated Bed
Fast Printing
Support Multi-Nozzle Printing
Powerful Cooling Fan

1 in stock

Order Info

Order will be shipped out from our KL warehouse in 1-3 business days once being processed.
If you need Lalamove once purchased, WhatsApp to our phone for quick arrange delivery.

Accepted Payment Methods - Visa, Mastercard, American Express, PayPal, FPX, Atome

SKU: ELEGOO-ORANGESTORMGIGA Categories: 3D Printers, FDM 3D Printers, Industrial Printer Tag: Elegoo

Go Big. Print Bigger – Built for Scale, Powered for Speed, Simplified

Gigantic in Size

Efficient Heated Bed

Fast Printing

Auto Levelling

Upgraded Nozzle

Multi-Nozzle Printing

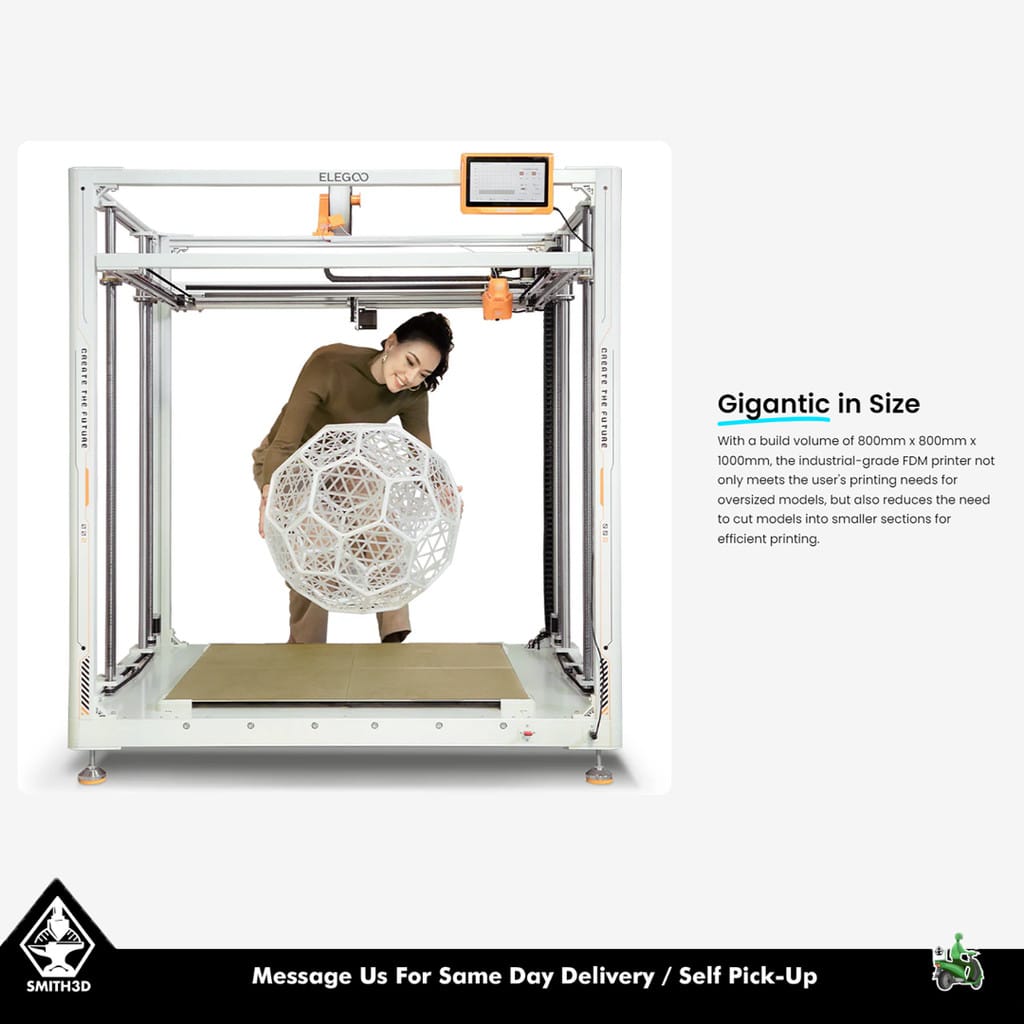

With a build volume of 800mm x 800mm x 1000mm, the industrial-grade FDM printer not only meets the user’s printing needs for oversized models, but also reduces the need to cut models into smaller sections for efficient printing.

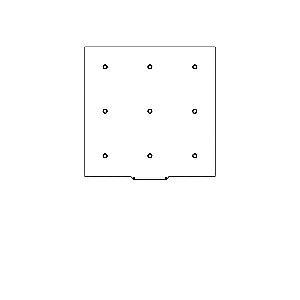

The heated bed consists of four independent (410*410mm) PEI magnetic high-temperature platforms with a maximum temperature of 100°C.
The four platforms can be heated simultaneously to reach 100°C over the entire area in 17 minutes (Ambient temperature: 25℃).
The platform where the model is located can also be automatically recognized and heated independently, or manually and independently controlled for increased energy efficiency.

Utilizing a 64-bit 1.5G clock speed quad-core high-performance processor (SOC RK3328), it provides sufficient computing capacity while delivering 6 times the printing speed, with a maximum speed of 300mm/s (150mm/s recommended), which is the top end print speed for printers of its size.

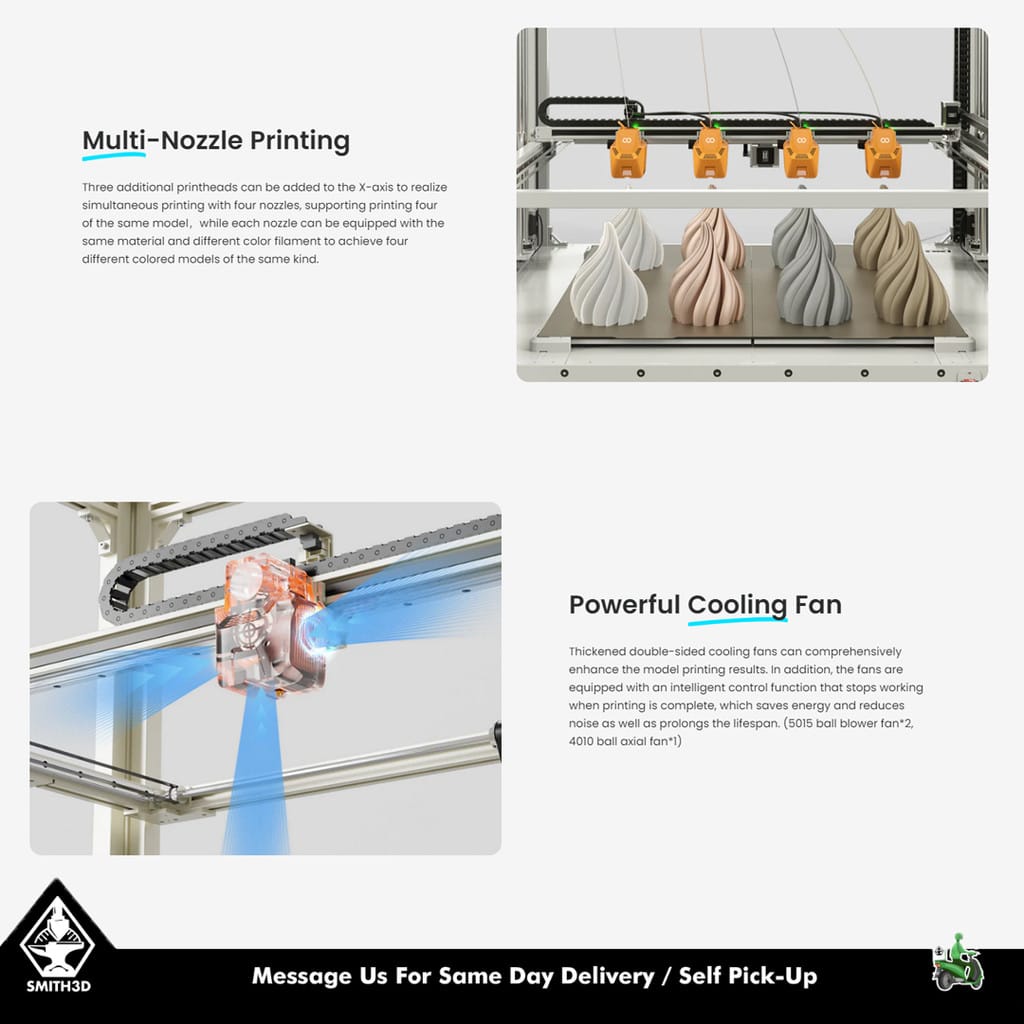

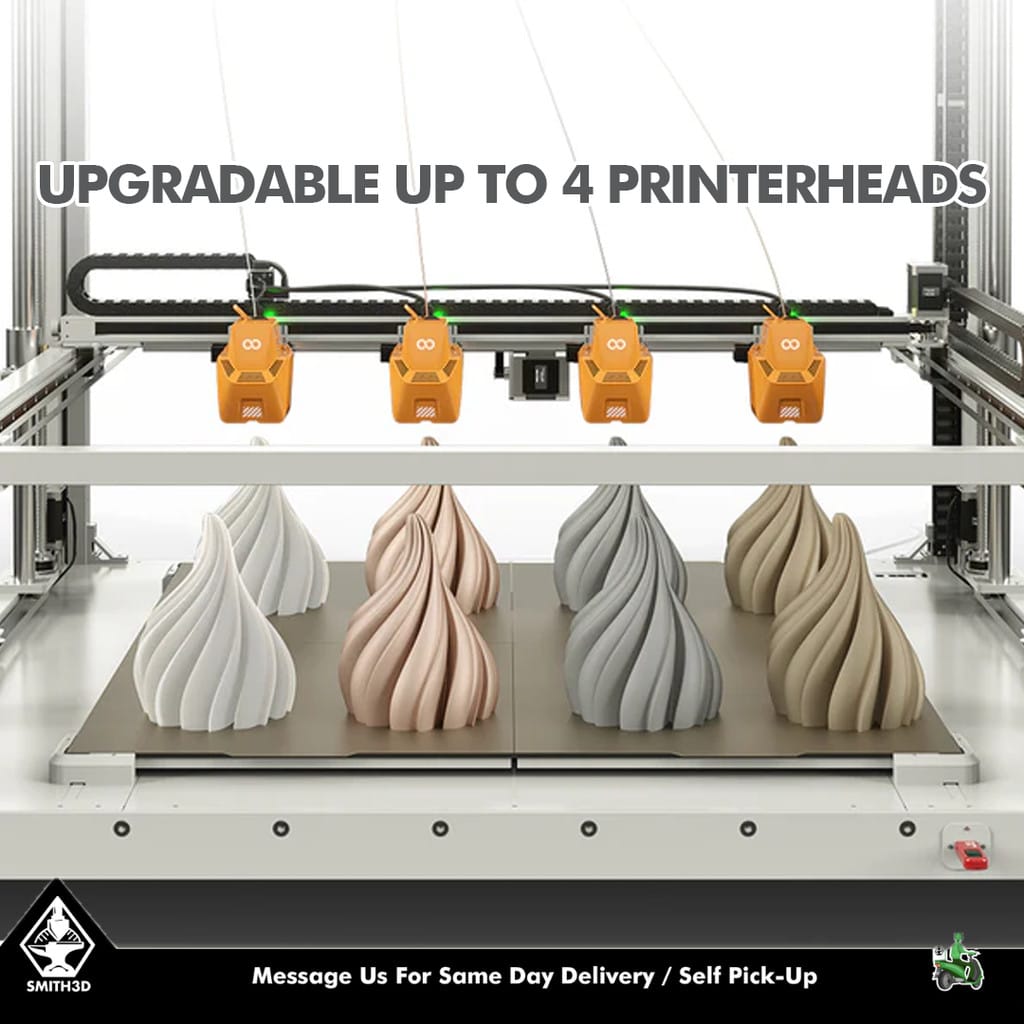

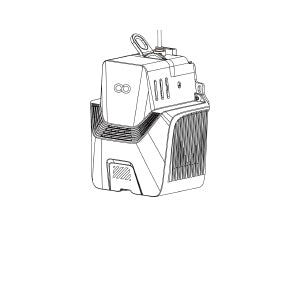

Three additional printheads can be added to the X-axis to realize simultaneous printing with four nozzles, supporting printing four of the same model, while each nozzle can be equipped with the same material and different color filament to achieve four different colored models of the same kind.
The maximum power requirement is 1,530 W. For each additional printhead, an extra 100 W is needed. Please ensure that your setup can accommodate this total power load.

Thickened double-sided cooling fans can comprehensively enhance the model printing results. In addition, the fans are equipped with an intelligent control function that stops working when printing is complete, which saves energy and reduces noise as well as prolongs the lifespan. (5015 ball blower fan*2, 4010 ball axial fan*1)

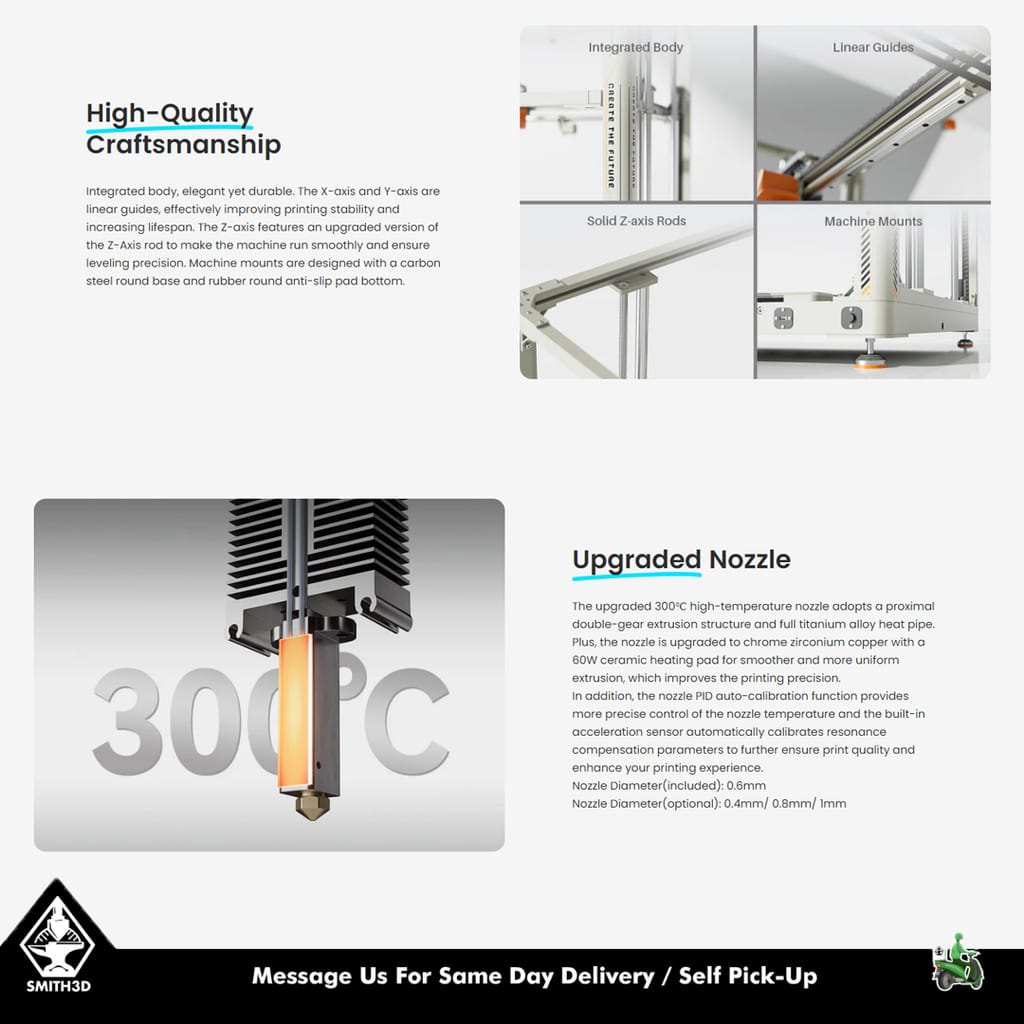

Integrated body, elegant yet durable. The X-axis and Y-axis are linear guides, effectively improving printing stability and increasing lifespan. The Z-axis features an upgraded version of the Z-Axis rod to make the machine run smoothly and ensure leveling precision. Machine mounts are designed with a carbon steel round base and rubber round anti-slip pad bottom.

OrangeStorm Giga features a high-quality brass nozzle capable of reaching 300 °C, ideal for high-temperature materials. The dual-gear direct extruder and titanium heat break ensure consistent filament flow, while the 60 W ceramic heater provides rapid and stable heating.
Equipped with advanced PID auto-calibration and a built-in acceleration sensor, OrangeStorm Giga ensures exceptional print quality by maintaining precise temperature control and reducing vibrations. Create stunning results for all your projects with ease.

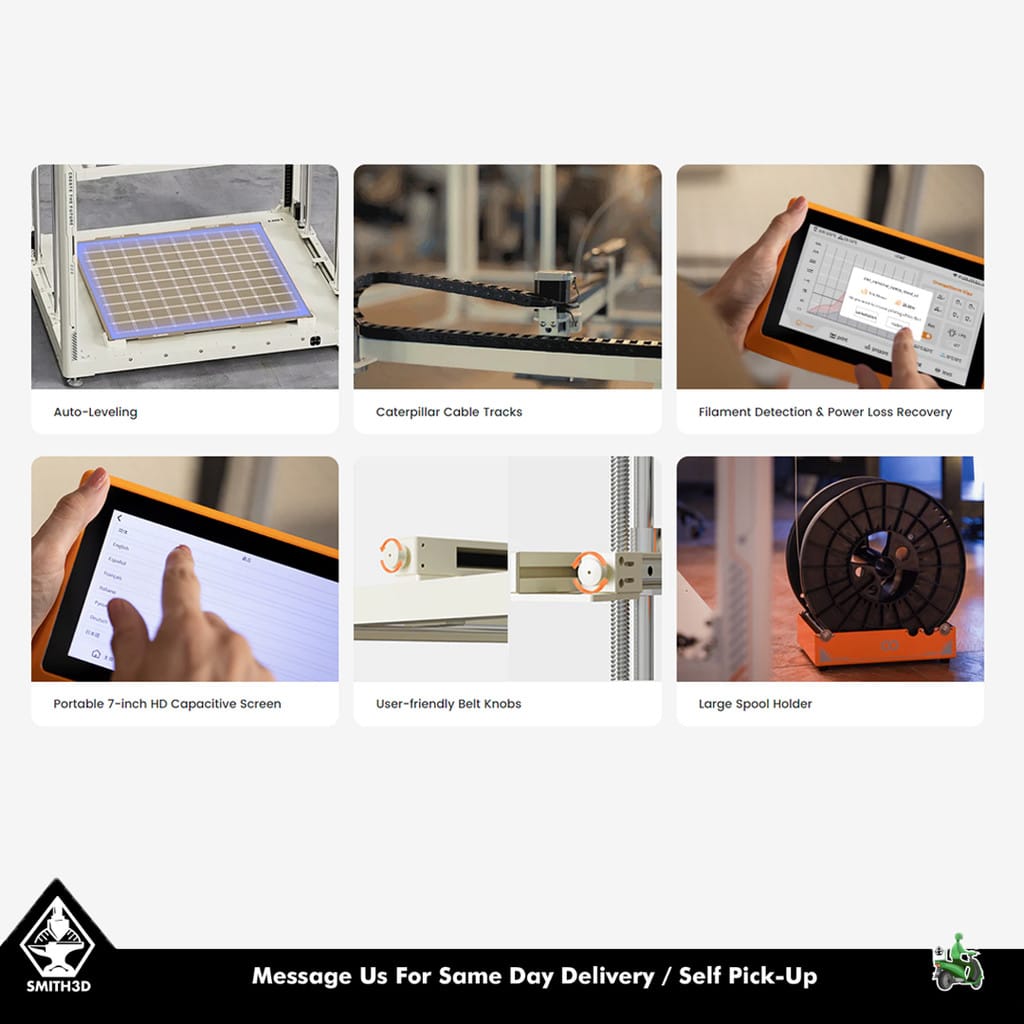

More Features

Auto Leveling

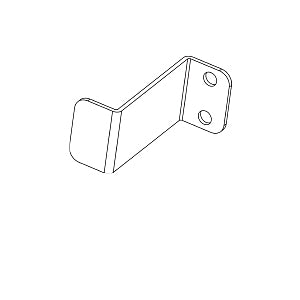

Caterpillar Cable Tracks

Power Loss Recovery

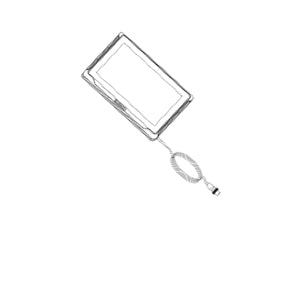

Portable 10.1-Inch HD Screen

User-Friendly Belt Knobs

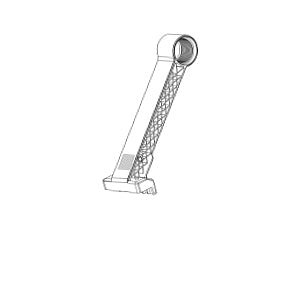

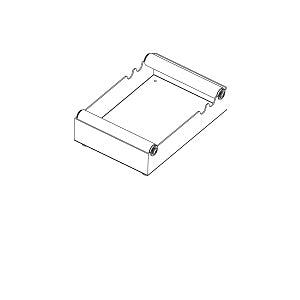

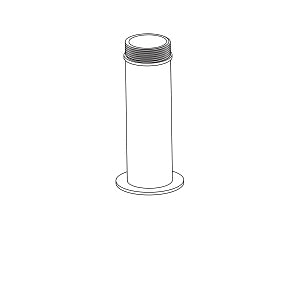

Large Spool Holder

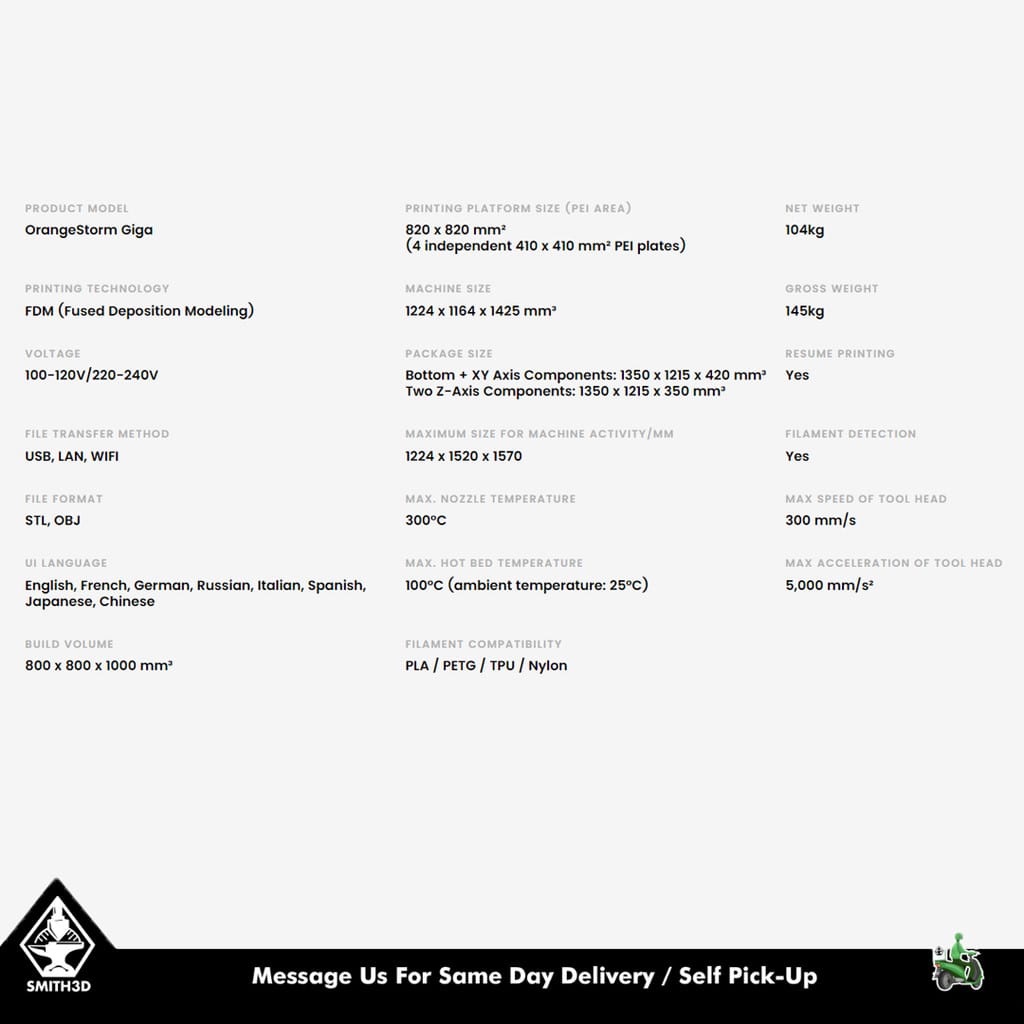

Specification
Product Model	OrangeStorm Giga
Printing Technology	FDM (Fused Deposition Modeling)
Frame Material	CNC machined aluminium extrusion
Voltage	100–120 VAC / 220–240 VAC, 50/60 Hz 1,530 W (single head; +100 W per additional head)
File Transfer Method	USB, LAN, WIFI
File Format	STL, OBJ
UI Language	English, French, German, Russian, Italian, Spanish, Japanese, Chinese
Build Volume	800 × 800 × 1000 mm
Printing Platform Size (PEI Area)	820 × 820 mm (4 independent 410 × 410 mm PEI plates)
Machine Size	1,224 × 1,164 × 1,425 mm
Package Size	Bottom + XY Axis Components: 1,350 × 1,215 × 420 mm Two Z-Axis Components: 1,350 × 1,215 × 350 mm
Maximum Size for Machine Activity / mm	1,224 × 1,520 × 1,570
Max. Nozzle Temperature	300 °C
Max. Hot Bed Temperature	100 °C (ambient temperature: 25 °C)
Filament Compatibility	PLA / PETG / TPU
Net Weight	104 kg
Gross Weight	145 kg
Resume Printing	Yes

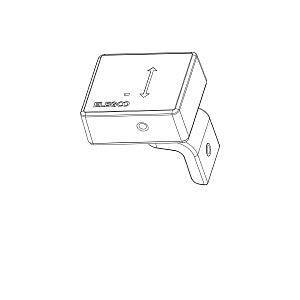

Filament Detection	Yes
Max Speed of Tool Head	300 mm/s
Max Acceleration of Tool Head	5,000 mm/s²
