Bambu Lab XY Timing Belt for P1 / X1 Series

Bambu Lab XY Timing Belt – CoreXY Motion Belt for X1 / P1 Series

The Bambu Lab XY Timing Belt is the official timing belt replacement for the CoreXY motion system in X1 and P1 Series printers. These belts transfer motion from the XY motors to the toolhead, enabling precise and rapid X/Y positioning during printing.

Essential for restoring print quality and positioning accuracy when belts become worn, stretched, or damaged.

Bambu Lab XY Timing Belt Key Features

• High-Precision Tooth Profile – Accurate motion transfer
• Low Stretch Material – Maintains tension over time
• Original OEM Part – Genuine Bambu Lab quality
• Reinforced Construction – Built for high-speed movement
• Proper Length – Pre-cut to correct specifications
• Direct Replacement – Same routing as original

CoreXY Motion System

Compatibility

When to Replace XY Timing Belt

• Visible Wear – Teeth showing damage or wear
• Stretched Belt – Cannot achieve proper tension
• Layer Shifting – X or Y positioning errors
• Ringing Artifacts – Despite proper input shaping
• Belt Damage – Cracks, fraying, or cuts
• Belt Noise – Unusual sounds during movement

Installation / Diagnostic Guide

Based on Bambu Lab Wiki

Before you begin: Power off and unplug the printer. Take photos of belt routing so you can match the original path.

1. Remove covers – Access the belt path (model-specific panels on X1/P1).
2. Release tension – Loosen the tensioner(s) so the belts can be removed safely.
3. Remove old belts – Note the routing around pulleys and idlers.
4. Route new belts – Install belts following the original path; keep the teeth engaged correctly on pulleys.
5. Set belt tension – Re-tension evenly (uneven tension can cause ringing and shifts).
6. Run calibration – Use the printer’s belt tension calibration / self-check after reassembly.

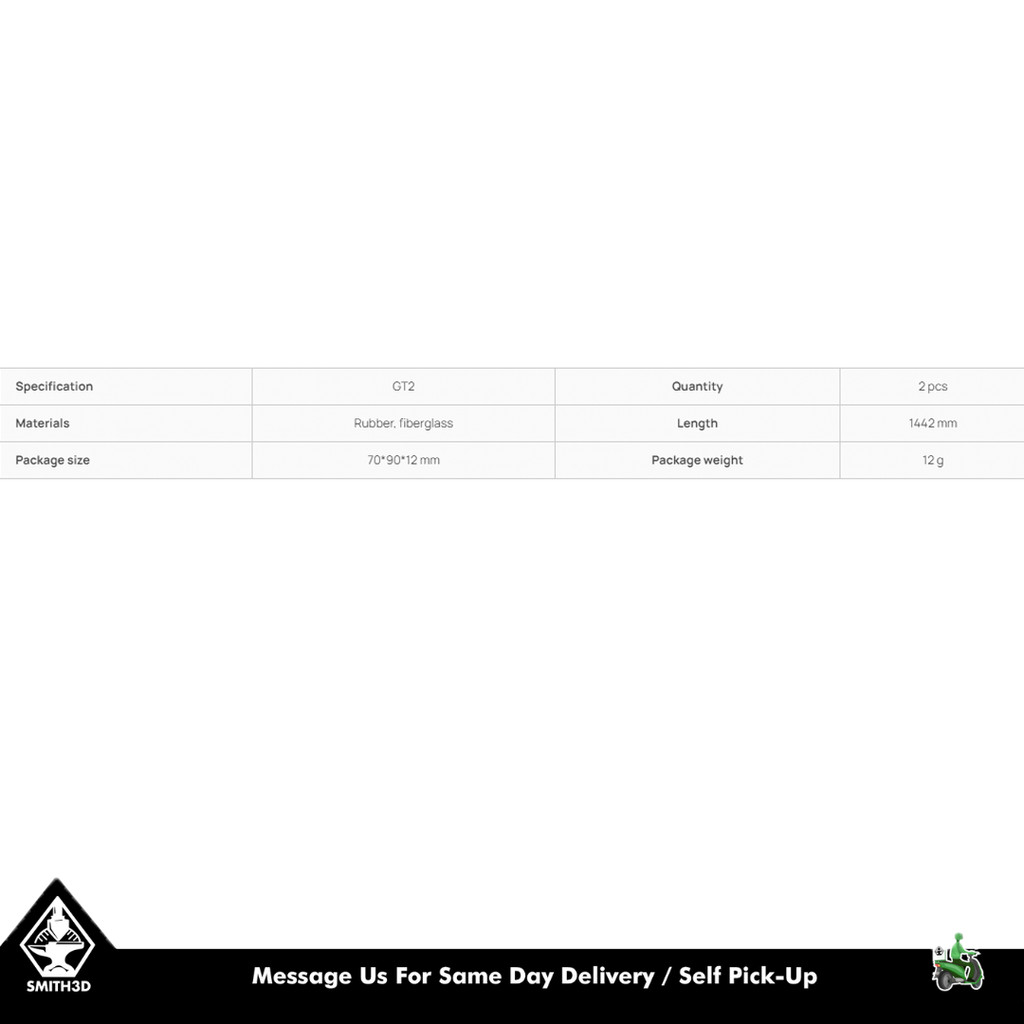

Bambu Lab XY Timing Belt Specifications

Bambu Lab XY Timing Belt FAQ

Q: How do I replace the XY timing belt?
A: Follow the official Bambu Lab XY belt replacement guide. CoreXY belt replacement requires correct routing and careful tensioning.

Q: How do I know if belt tension is correct?
A: Run the printer’s built-in belt tension calibration. You can also use the “pluck test” – properly tensioned belts should produce a similar sound when plucked.

Q: Do I need to replace both belts at once?
A: If one belt is worn, it’s often recommended to replace both to maintain consistent tension and wear across the motion system.

Q: What symptoms can a worn belt cause?
A: Ringing/ghosting, layer shifts, rough motion noise, and loss of dimensional accuracy can all be related to belt wear or tension.
