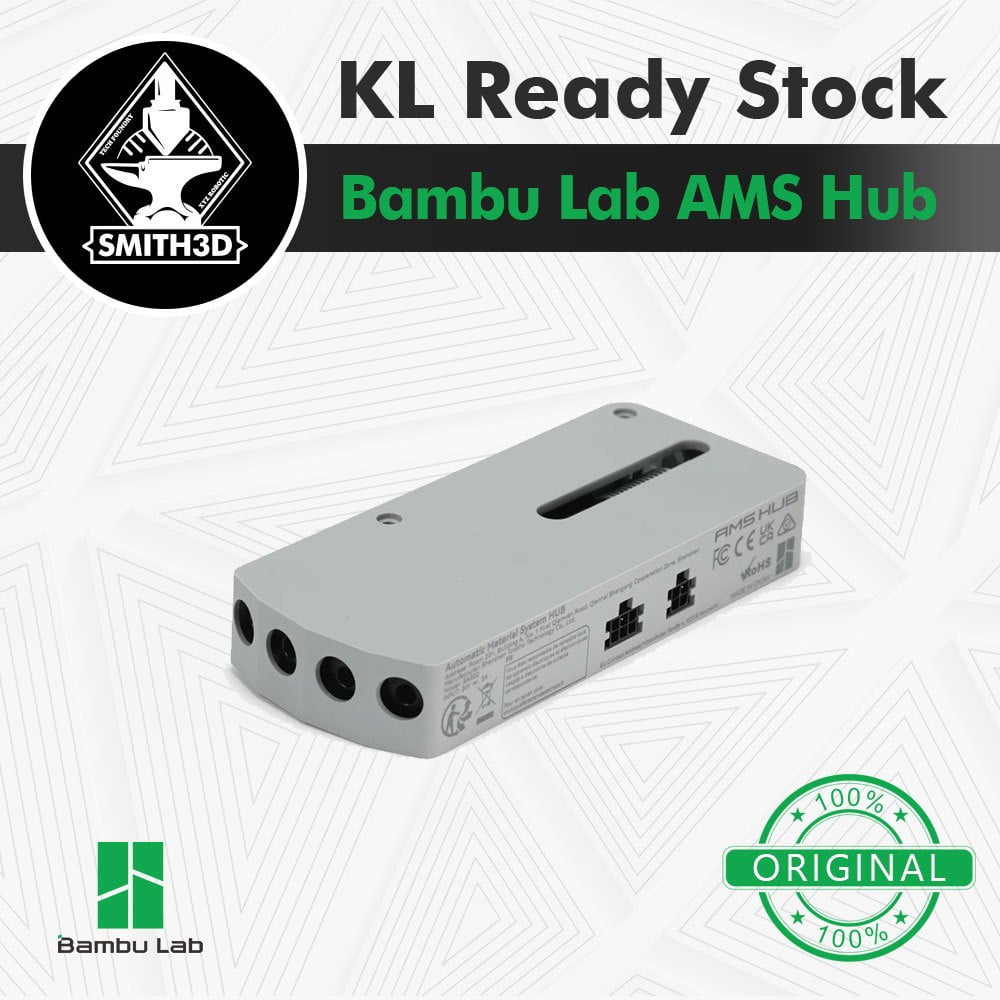

Bambu Lab AMS Hub for Multiple AMS Automatic Material System for Multicolor Printing X1C / P1P / P1S / X1

The AMS Hub: Expand Your AMS Options 🚀

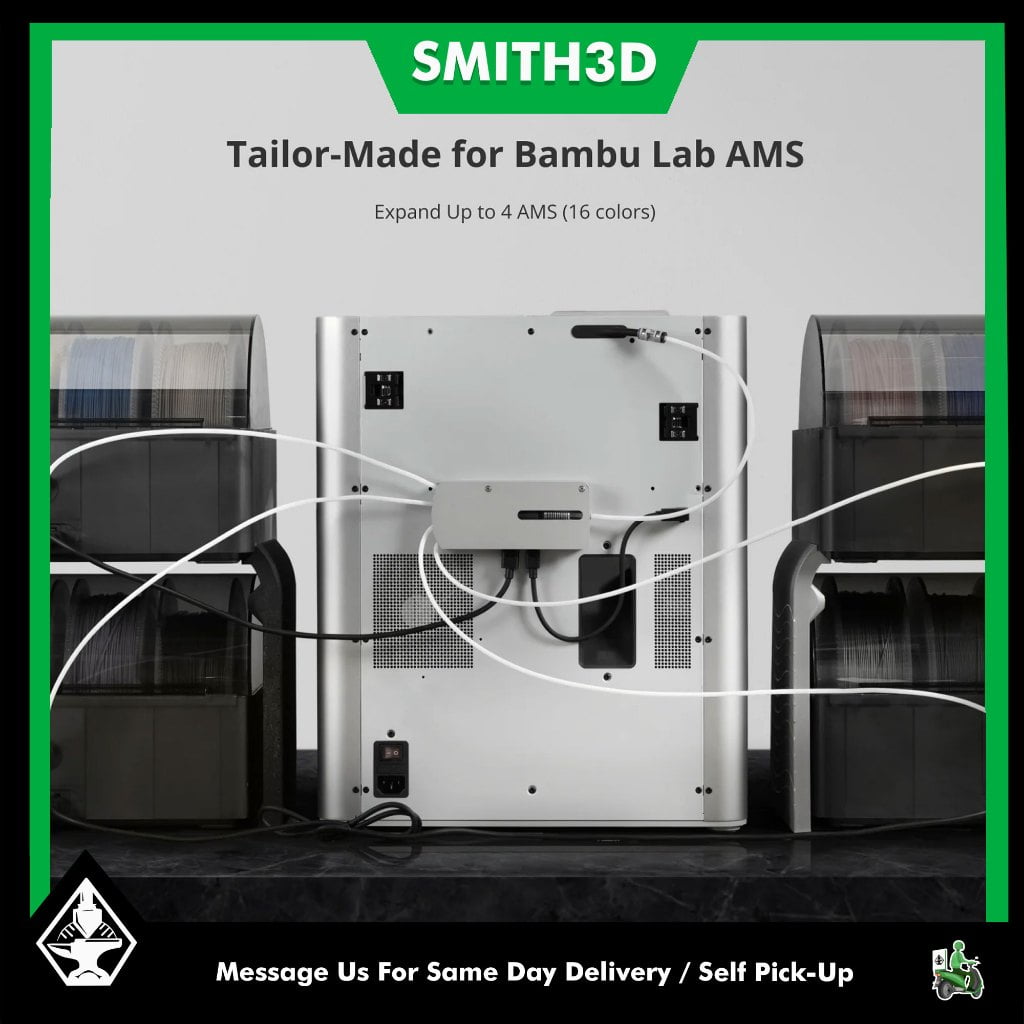

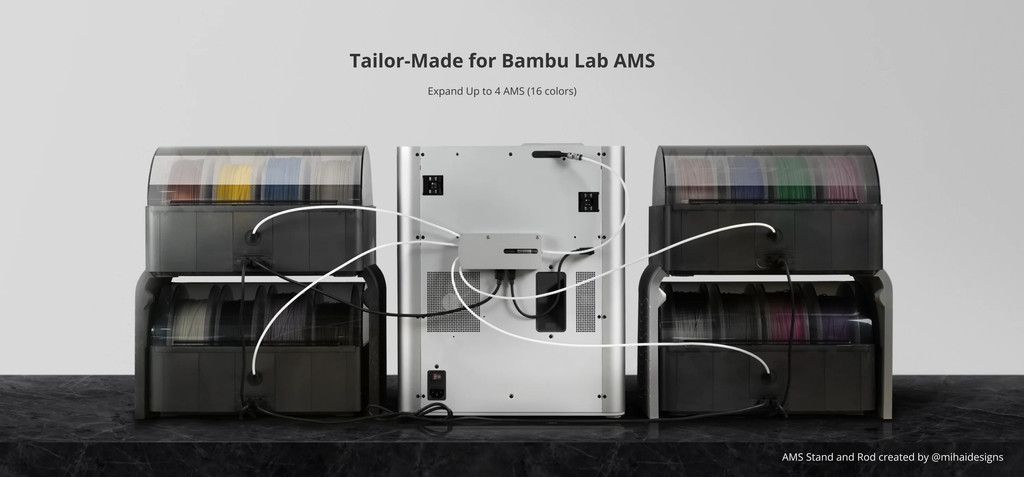

• The AMS Hub is your solution for expanding the capabilities of your Bambu X1/P1 series printers, allowing you to connect up to 4 AMS units for enhanced refueling speed and signal redundancy.

🔍 Overview:

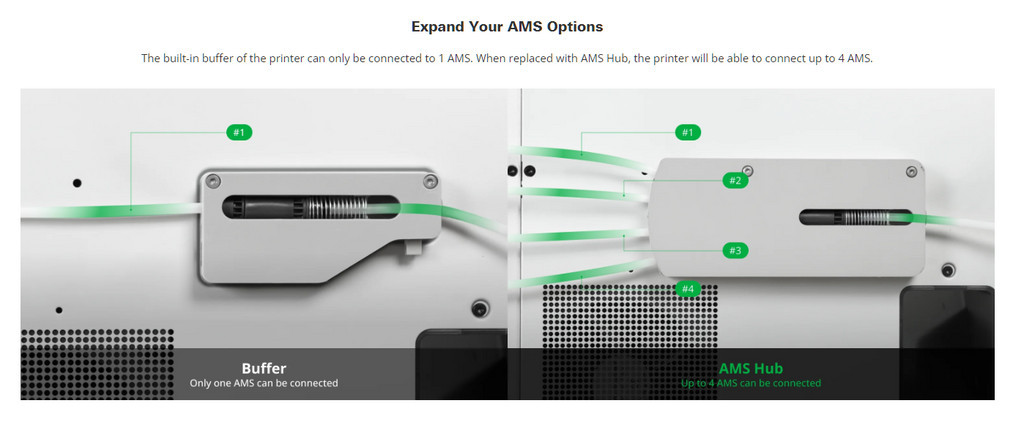

• Expand from 1 AMS unit (4 channels) to a maximum of 4 AMS units (16 channels) for improved refueling speed and signal redundancy.

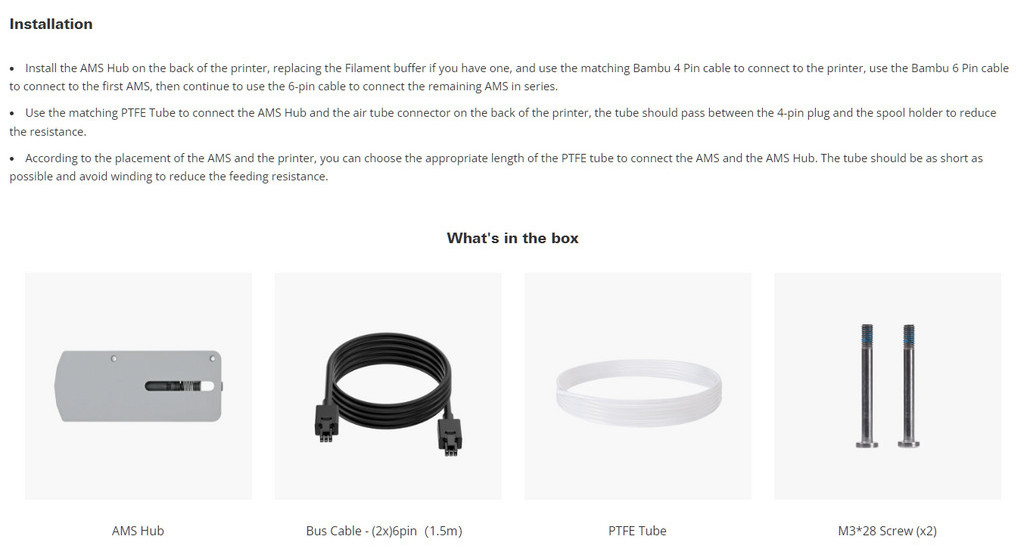

🛠️ Installation:

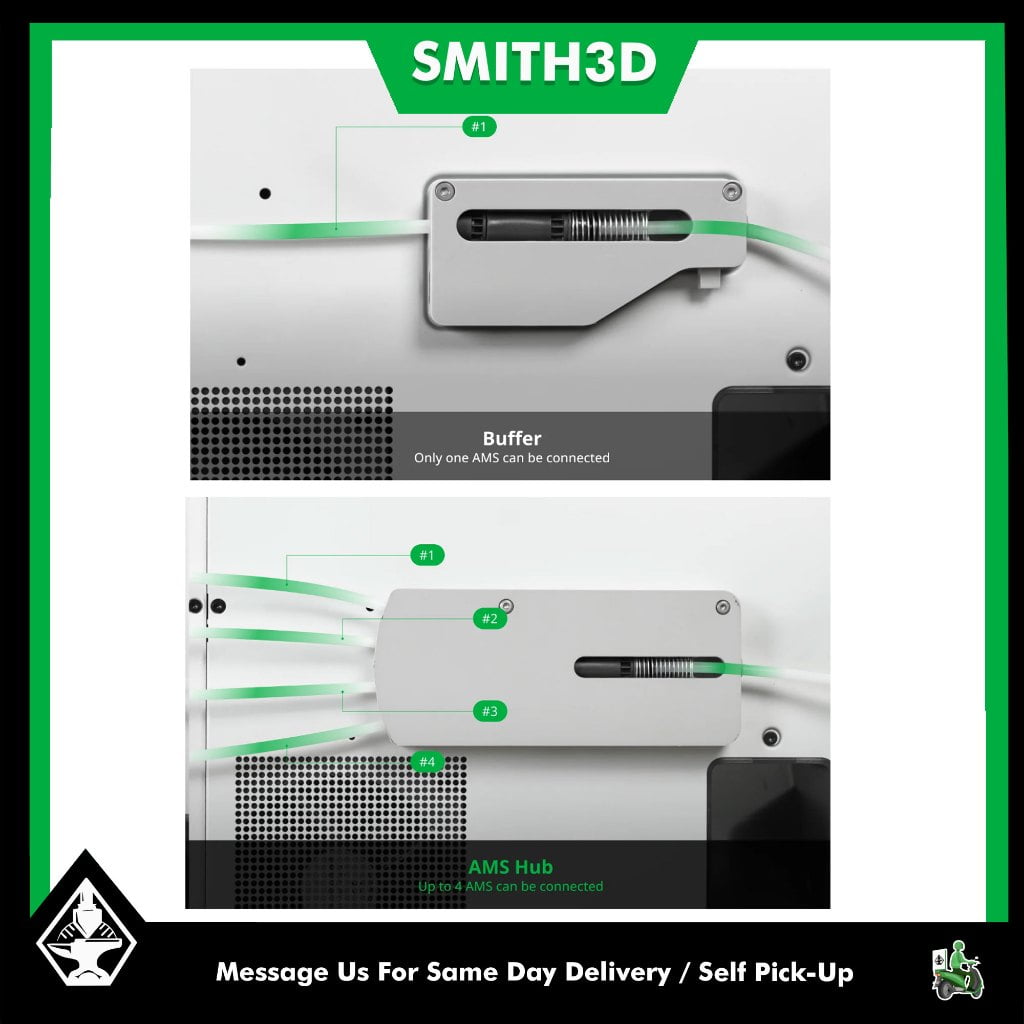

• Mount the AMS Hub on the back of your printer, replacing the Filament buffer if present.
• Connect the AMS Hub to the printer using the matching Bambu 4 Pin cable.

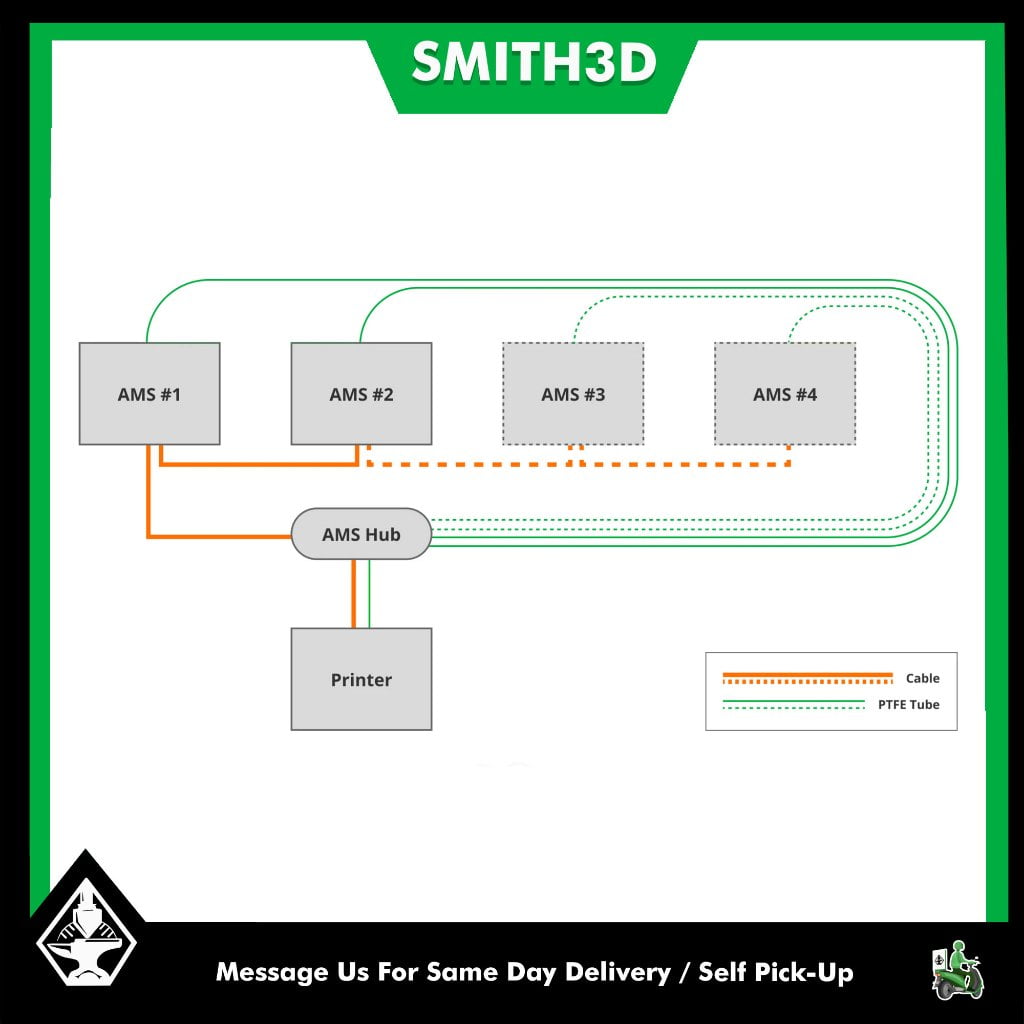

• Utilize the Bambu 6 Pin cable to connect the AMS Hub to the first AMS, then daisy-chain additional AMS units in series using the same cable.
• Connect the AMS Hub and the air tube connector on the back of the printer using the provided PTFE tube. Ensure the tube passes between the 4-pin plug and the spool holder to minimize resistance.

📏 Customization:
• Choose the appropriate length of PTFE tube based on the placement of the AMS units and the printer.
• Opt for shorter tube lengths and avoid winding to reduce feeding resistance and optimize performance.
• With the AMS Hub, streamline your printing process and maximize the efficiency of your AMS units for unparalleled printing performance.

📦 Package Includes:▪ BAMBULAB AMS Hub
