Bambu Lab Live View / Chamber Camera for A1 / P1 / X1 Series / H2 Series
Price range: RM139.00 through RM229.00

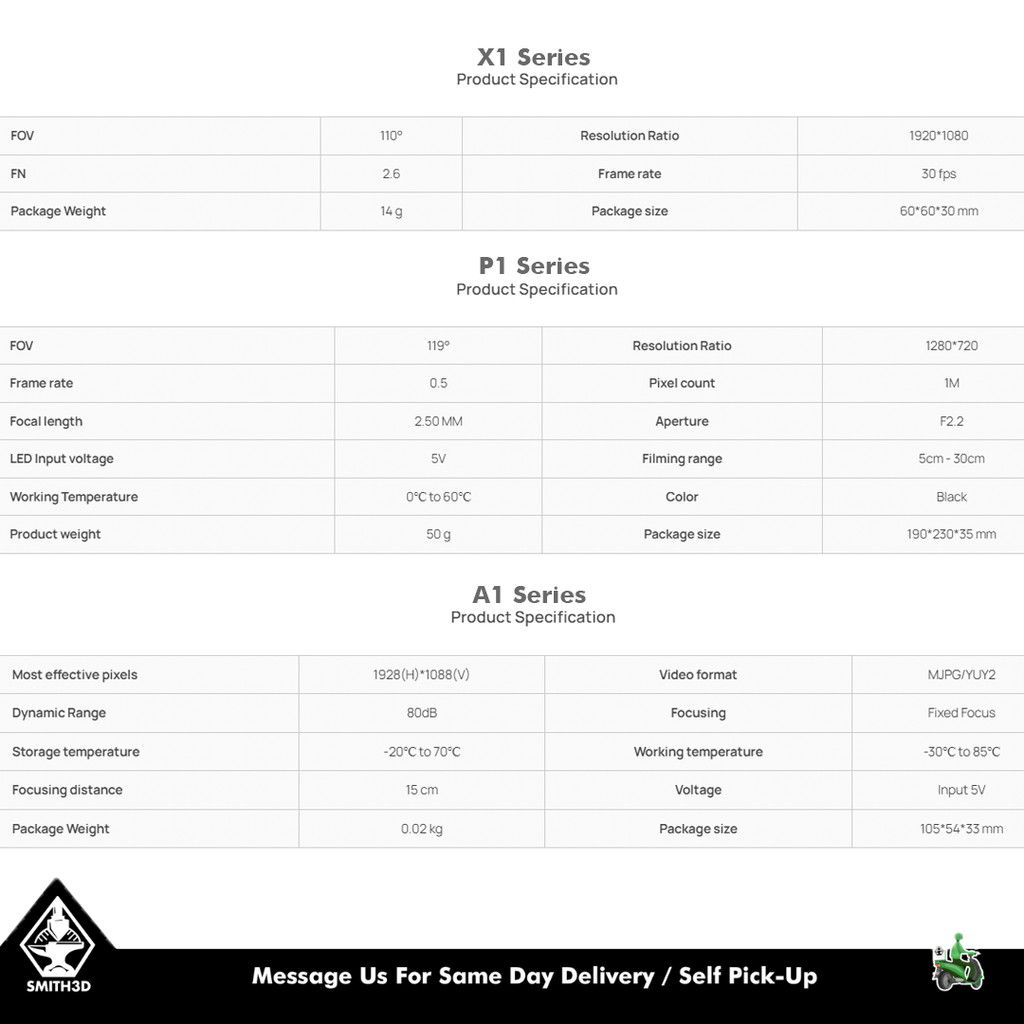

| Specification | Details |
|---|---|
| Part Numbers | CAM005, CAM002, FAZ004, CAM004, CAM003 CAM007-2 |
| Compatibility | X1 Series (Chamber Camera), P1 Series (Chamber Camera + LED), A1 Series (Live View / Chamber Camera) |
| Camera Functions | Remote Livestream, Time‑lapse (all models); Spaghetti Detection (X1 only); LED lighting included with P1 kit |
| Resolution & Frame Rate | X1 / P1: 1920×1080 @ 30 fps (FOV 110° / FN2.6); A1: 1928×1088 @ low FPS |
| Materials | Plastic, Metal, Electronic components |
| Packaging Size | 60 × 60 × 30 mm (X1 / P1); 105 × 54 × 33 mm (A1 Live‑View) |
| Packaging Weight | ≈ 14 g (X1 / P1); ≈ 0.02 kg (A1 Live‑View) |
| Included in A1 Kit | Live View Camera × 1 |
| Included in P1 Kit | Chamber Camera × 1, LED module × 1 |
| Included in X1 Kit | Chamber Camera × 1 (no LED) |
Order Info
- Order will be shipped out from our KL warehouse in 1-3 business days once being processed.
- If you need Lalamove once purchased, WhatsApp to our phone for quick arrange delivery.
Compatibility
Compatible Printers:
Important: X1/P1 series use chamber cameras while A1 series uses live view cameras. These are different parts – select the correct camera for your printer. |

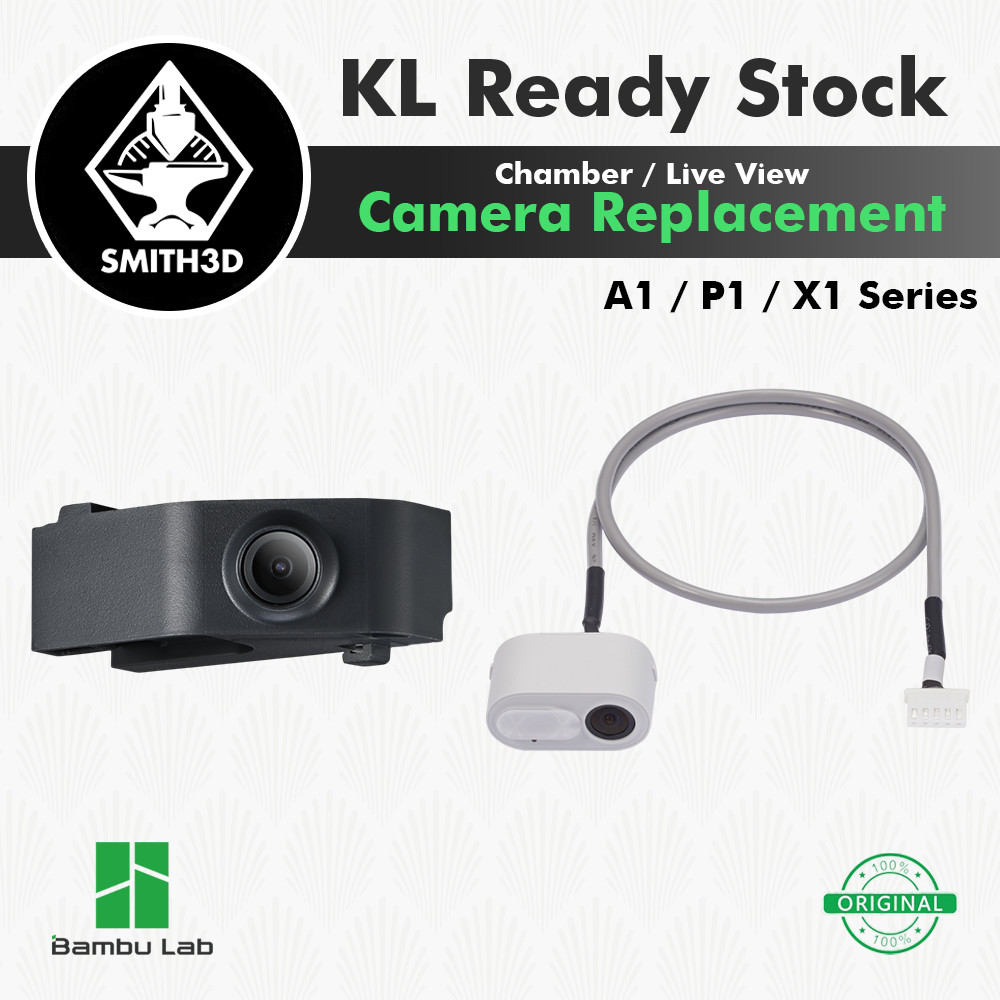

Bambu Lab Camera – Chamber / Live View Camera for X1 / P1 / A1 Series
The Bambu Lab Camera is the official internal camera replacement for Bambu Lab printers. This camera enables remote print monitoring, timelapse recording, and visual inspection of ongoing prints through the Bambu Handy app or Bambu Studio.
Essential for restoring remote monitoring capability when the camera fails or produces poor quality images.
Key Features
- Live Streaming – Real-time print monitoring
- Timelapse Recording – Automatic print timelapses
- Original OEM Part – Genuine Bambu Lab quality
- Remote Access – View via Bambu Handy app
- Print Inspection – Visual quality checking
- Direct Replacement – Same mounting as original
Camera Capabilities
What the Camera Provides:
Note: AI failure detection features depend on firmware version and model capabilities. Check your printer specifications for available features. |
When to Replace Camera
- No Image – Camera not producing video
- Blurry Image – Out of focus or hazy picture
- Connection Errors – Camera not detected
- Physical Damage – Lens or housing damaged
- Intermittent Feed – Video cutting in and out
- Timelapse Issues – Recording not working

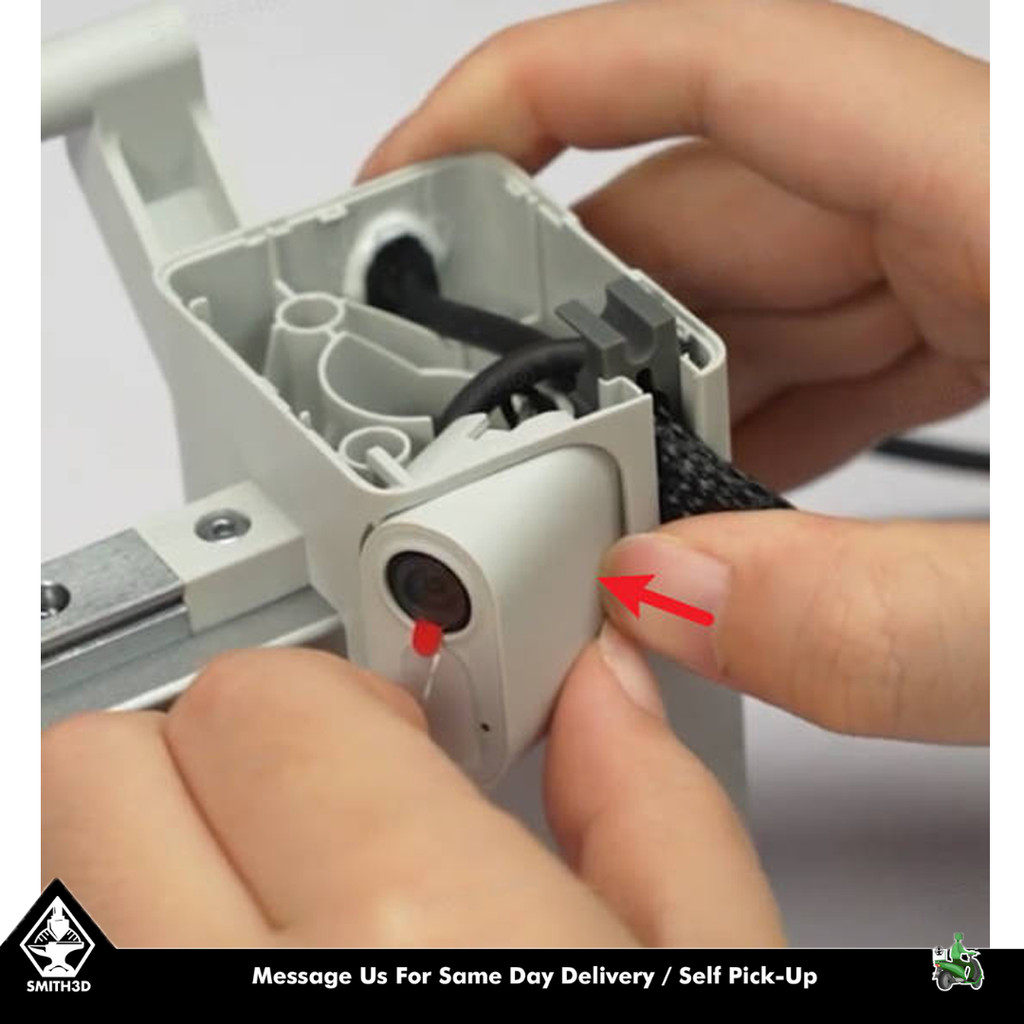

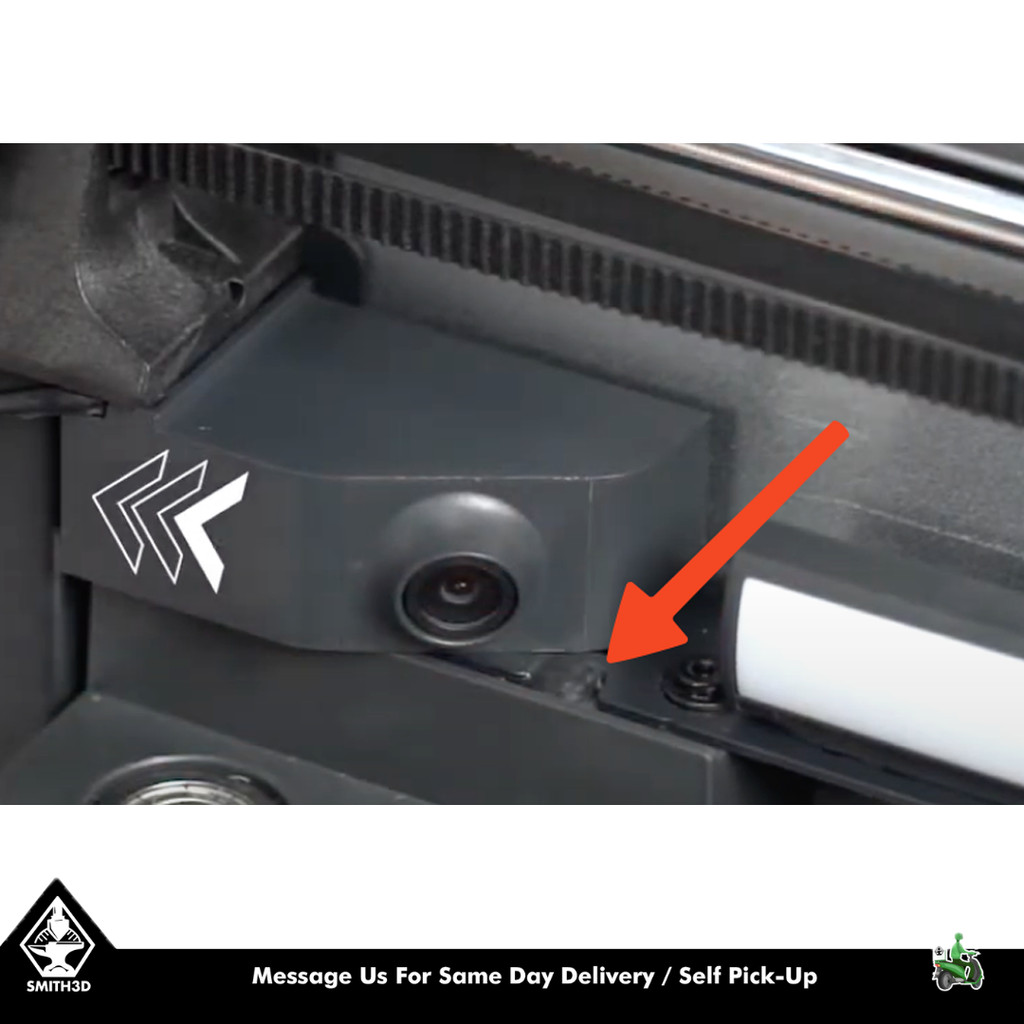

Installation Guides
Follow the official Bambu Lab maintenance guides:
- X1 Series Chamber Camera Replacement
- P1 Series Chamber Camera Replacement
- A1 Camera Replacement
- A1 Mini Camera Replacement
Specifications
| Brand | Bambu Lab |
| Bambu Part Numbers | CAM005, CAM002, FAZ004, CAM004, CAM003, CAM007 |
| Part Type | Chamber Camera / Live View Camera |
| Function | Print monitoring and timelapse |
| Compatibility | X1, P1, A1, A1 Mini (model specific) |
FAQ
Q: Can I print without a working camera?
A: Yes, the camera is not required for printing. However, you’ll lose remote monitoring, timelapse recording, and any AI-assisted detection features your printer may have.
Q: Why is my camera image foggy?
A: Chamber cameras can fog up in humid conditions or when printing certain materials. Try cleaning the lens. If fogging persists even when the chamber is cool, the camera may need replacement.
Related Products
- LED Light – Chamber lighting
- AP Board – Camera connection
- Bambu Lab Spare Parts – Full range
| Weight | 0.20 kg |
|---|---|
| Dimensions | 24.00 × 20.00 × 5.00 cm |
| Variation | X1 Series, P1 Series, A1 Only, A1 Mini Only, H2 Series |
