eSUN ePA12-CF 0.75KG 1.75mm – [NEW & IMPROVED] High Temperature Nylon Carbon Fiber for 3D Printer

🔥 All are ready stock in Sungai besi office & ship within 24 hours* (Except for non working day, but do call us to check)



🔥 Select Others (West Malaysia) as shipment if you’d like to opt for self-pickup/by delivery services (Lalamove, Grab, etc ). Contact us after placed order.etc ).



Material name: ePA12-CF (IMPROVED FROM ePA6-CF)

Recommended printing temperature: 260-300℃

Bed: 60-80℃ (glass/carbon fiber board + solid glue)

Fan: 0%

Printing speed: 40-100mm/s



Note: ePA12-CF are easy to absorb water, so please dry before printing (70℃/12H). It is recommended to use with the eBOX when printing. In addition, ePA6-CF is also easy to grind nozzles and extruder gears. It is recommended to use hardened steel nozzles or ruby nozzles. Hardened steel extruder gears can be selected if possible. If the printing time of the throat is long, it needs to be replaced.

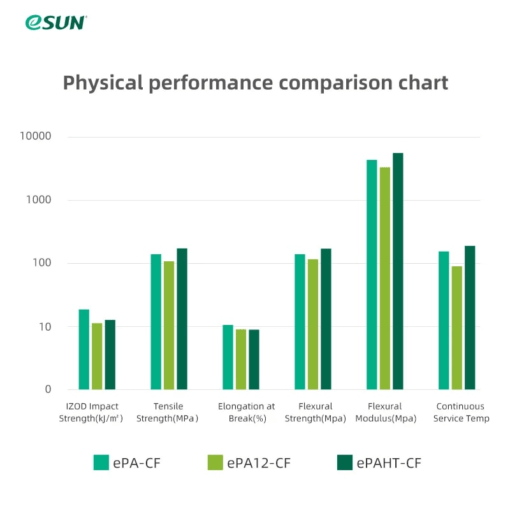

Material :ePA12-CF

Density(g/cm3): 1.24

Heat Distortion Temp(℃,0.45MPa): 94.1

Melt Flow Index(g/10min): 8.91(270℃/2.16kg)

Tensile Strength(MPa): 108.18

Elongation at Break(%): 9.02

Flexural Strength(MPa): 116.58

Flexural Modulus(MPa): 3335

IZOD Impact Strength(kJ/m2): 11.33

Durability: 10/10

Printability: 8/10



Recommended printing parameters

Extruder Temperature(℃) 270 – 300℃

Recommended temperature：280℃

Bed temperature(℃): 45 – 60°C

Fan Speed 0%

Printing Speed 40 – 100mm/s

Heated Bed Optional

Recommended Build Surfaces Masking paper, PVP solid glue, PEI

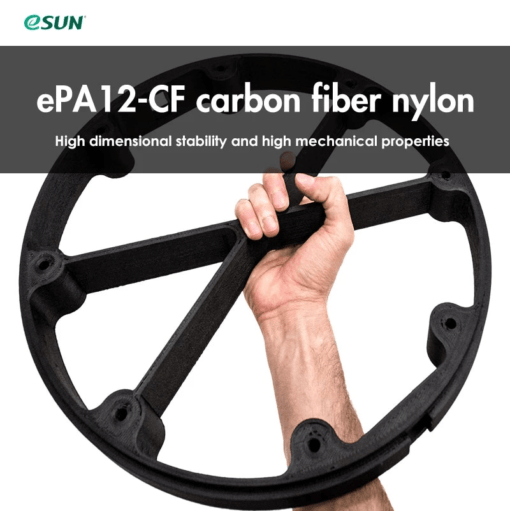

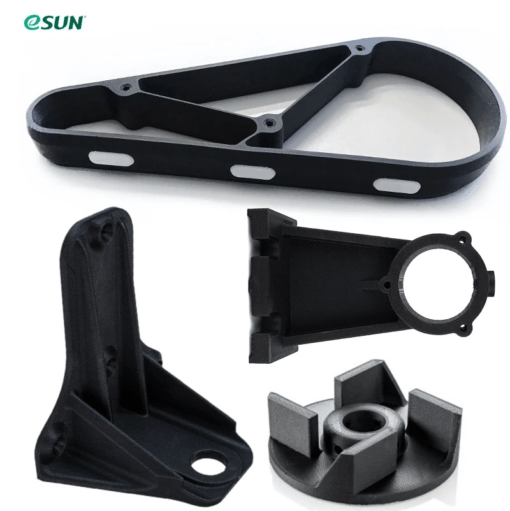

It is a material developed by eSUN and LUVOCOM based on PA12, added with 15% carbon fiber, greatly enhances the strength, rigidity and toughness of nylon, and can be used as a substitute for metal in many occasions; low water absorption rate,less affected by humidity and temperature for printing parts’dimension; self-lubricating and wear-resistant properties make it suitable for printing gears; high temperature resistance, continuous using temperature of parts can reach 120℃, short-term use temperature can reach 160℃; low shrinkage, not easy to warp and crack during printing, and the printing surface is matte and delicate.



Selling points: low moisture absorption; heat resistance; high toughness; high impact resistance; abrasion resistance; high dimensional stability; excellent printability.



Packaging List:

ePA12-CF x 1
