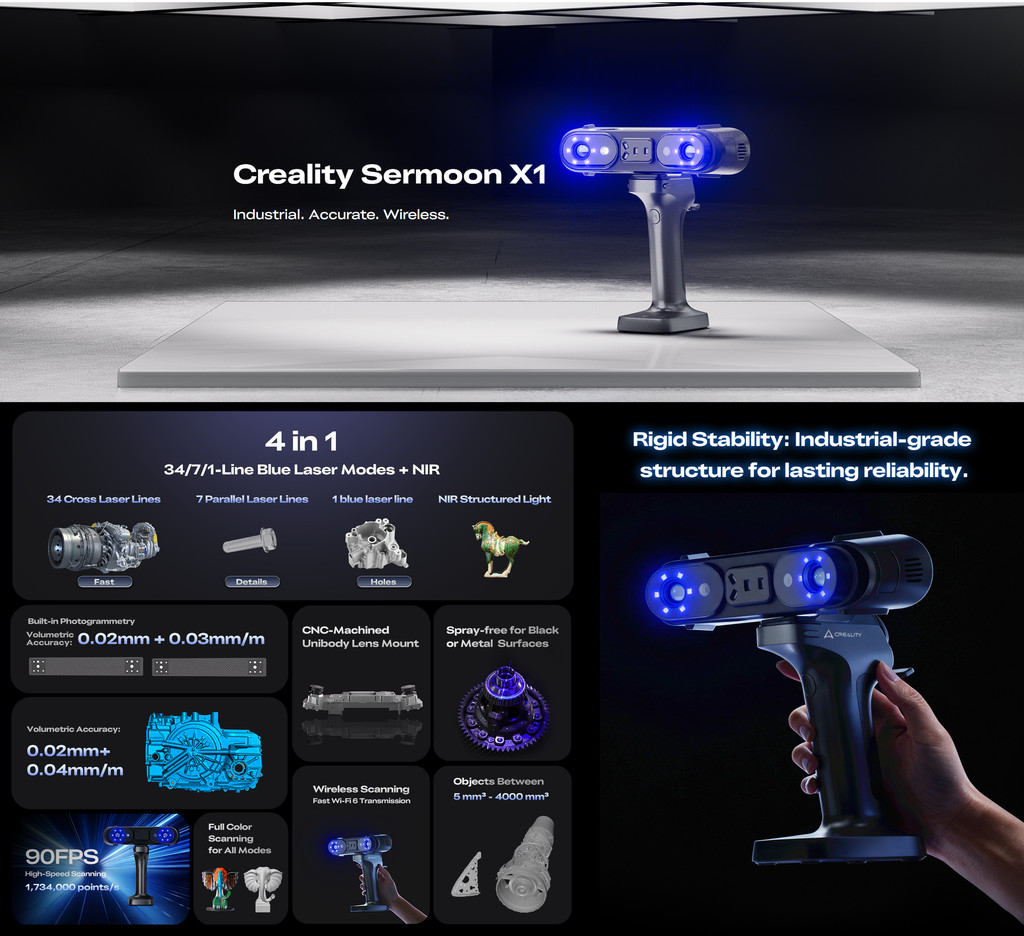

Creality Sermoon X1 3D Scanner - 90 FPS, 5-4000mm³, Full Colour

Creality Sermoon X1 3D Scanner: All-material adaptability for diverse surfaces.

Creality Sermoon X1 3D Scanner: Industrial, Accurate, Wireless 3D Scanner

Creality Sermoon X1 3D Scanner integrates with inspection/design/3D printing software.

Creality Sermoon X1 3D Scanner - Full colour Texture Scanning with Qualcomm ISP and dual-colour LED lights

Creality Sermoon X1 3D Scanner - Larger field scan, faster scanning.

Creality Sermoon X1 3D Scanner: Speed Productivity, faster workflows, high efficiency.

Creality Sermoon X1 3D Scanner - 5-4000 mm³ scanning range, laser & NIR structured light.

Creality Sermoon X1 3D Scanner

RM26,999.00

Multi-Light Scanning System: Capture complex surfaces with a hybrid 1 + 7 + 34 blue-laser array plus NIR light—no spray or markers needed.
Industrial-Level Precision: Achieve up to 0.02 mm accuracy at 90 FPS, delivering clean edges and fine details ideal for modeling, inspection, and reverse engineering.
Versatile Scanning Range: From 5 mm micro-parts to 4000 mm large objects, handles jewelry, mechanical parts, furniture, and automotive components with ease.
AI-Powered Smart Workflow: Automatic alignment, mesh optimization, hole filling, and direct export to major CAD/CAM/3D-printing platforms for a seamless pipeline.
Portable & Wireless Operation: Work freely indoors or outdoors; wireless scanning supported via optional Scan Bridge.

Out of stock

Order Info

Order will be shipped out from our KL warehouse in 1-3 business days once being processed.
If you need Lalamove once purchased, WhatsApp to our phone for quick arrange delivery.

Accepted Payment Methods - Visa, Mastercard, American Express, PayPal, FPX, Atome

SKU: CREALITY-SERMOON-X1 Category: 3D Scanners Tag: Creality

Creality Sermoon X1 Overview

Metrology-Grade, Blue-Laser Precision — Delivering Ultra Accurate 3D scanning for Industrial and Professional Applications.

Versatile
Scanning Modes

Large Scanning
Field of View

Varied Scanning
Ranges

Deep Holes | Narrow Gaps | Recessed Areas

Versatile Laser Scanning Modes

From complex geometry to hard-to-scan surfaces, the MetroY series’ three blue laser scanning modes give you the tools to get the job done.

Single Line Laser : Measuring deep holes and hard-to-reach areas.
15 Parallel Lines : Swift detail capturing of intricate features and complex structures.
34 Cross Laser Lines : Efficient scanning to capture the geometry and dimensions of large parts quickly.
NIR Structured Light : Enables large-area, marker-free scanning for efficient modeling of medium and large objects.

Single-Line Laser (Up to depth-to-diameter ratio 6:1)

Mastering Deep Holes

The X1 single laser deep-hole scanning mode easily captures 3D data from hard-to-reach areas such as deep holes, narrow gaps, and recesses. It supports scanning narrow holes with a depth-to-diameter ratio of up to 6:1, delivering more complete 3D data for applications in design, inspection, analysis, and beyond.

Up to 1,734,000 points per second

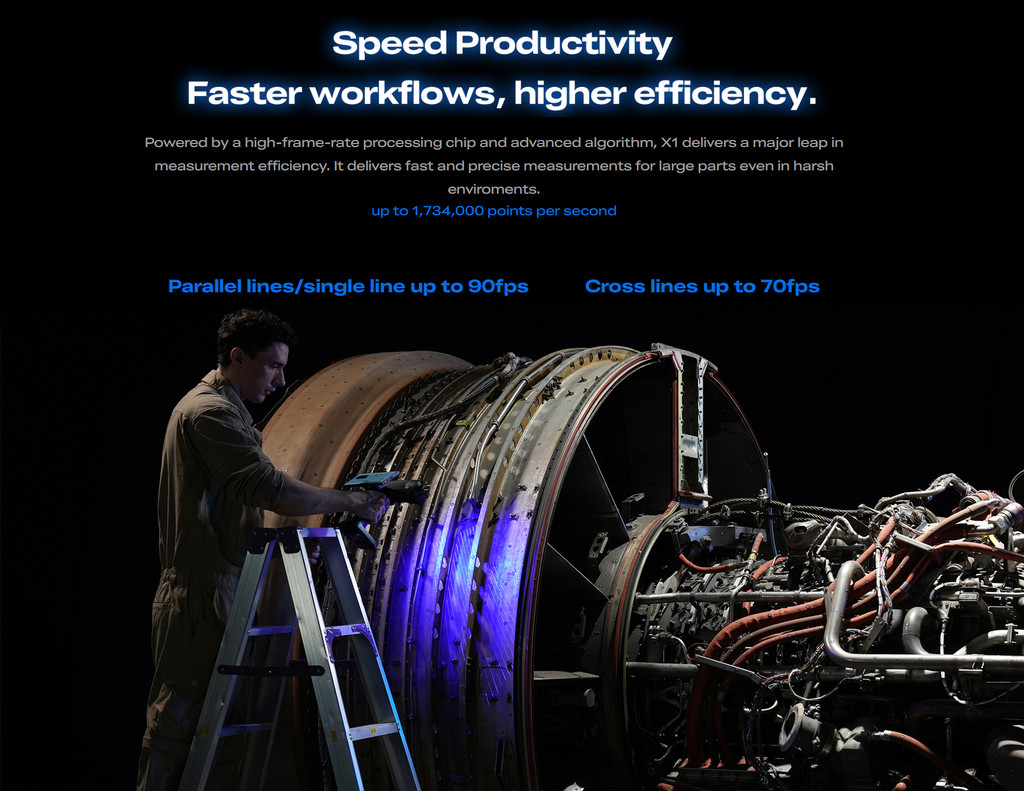

Faster Workflows, Higher Efficiency

Powered by a high-frame-rate processing chip and advanced algorithm, X1 delivers a major leap in measurement efficiency. It delivers fast and precise measurements for large parts even in harsh enviroments.

Up to 90FPS

Parallel/Single Scan Mode

Up to 70FPS

Cross Scan Mode

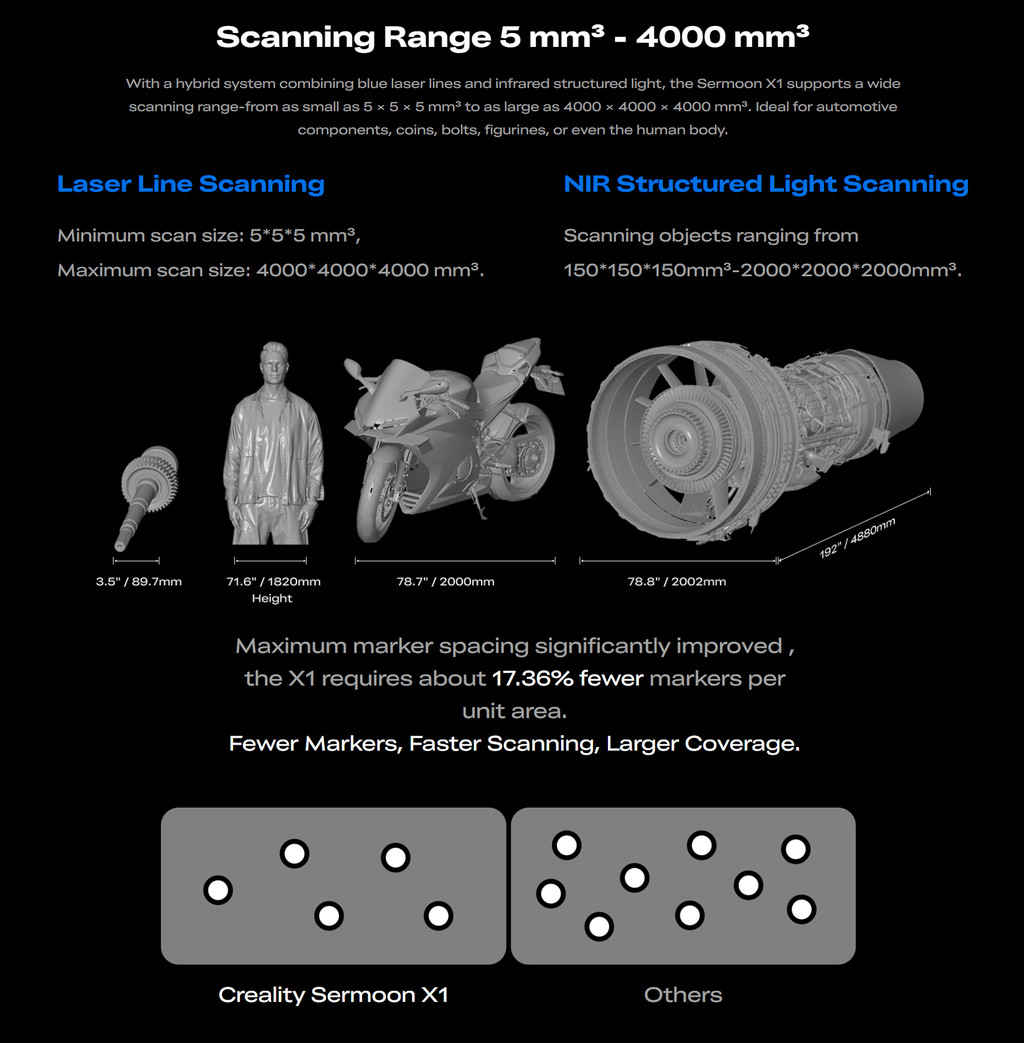

Scanning Range 5 mm³ – 4000 mm³

Great Scanning Range

With a hybrid system combining blue laser lines and infrared structured light, the Sermoon X1 supports a wide scanning range-from as small as 5 × 5 × 5 mm³ to as large as 4000 × 4000 × 4000 mm³. Ideal for automotive components, coins, bolts, figurines, or even the human body.

Laser Line Scanning

5*5*5 mm³ – 4000*4000*4000 mm³.

NIR Structured Light Scanning

150*150*150mm³ – 2000*2000*2000mm³.

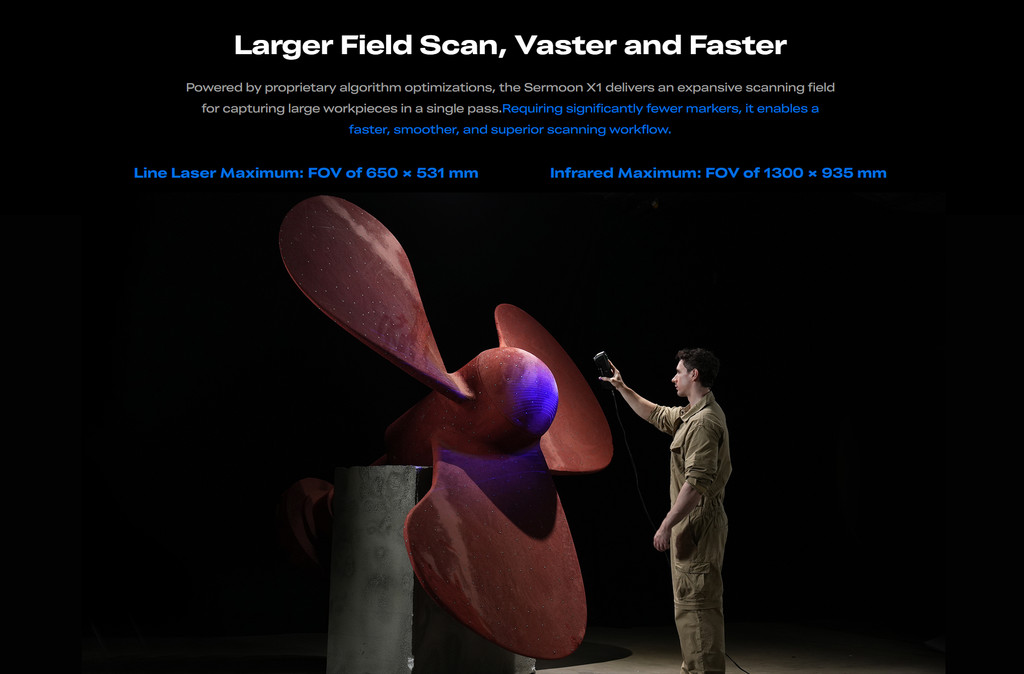

Larger Coverage

Larger Field Scan, Vaster and Faster

Powered by proprietary algorithm optimizations, the Sermoon X1 delivers an expansive scanning field for capturing large workpieces in a single pass.Requiring significantly fewer markers, it enables a faster, smoother, and superior scanning workflow.

650 × 531 mm

Line Laser Maximum

1300 × 935 mm

Infrared Maximum

Realistic Colours & Textures

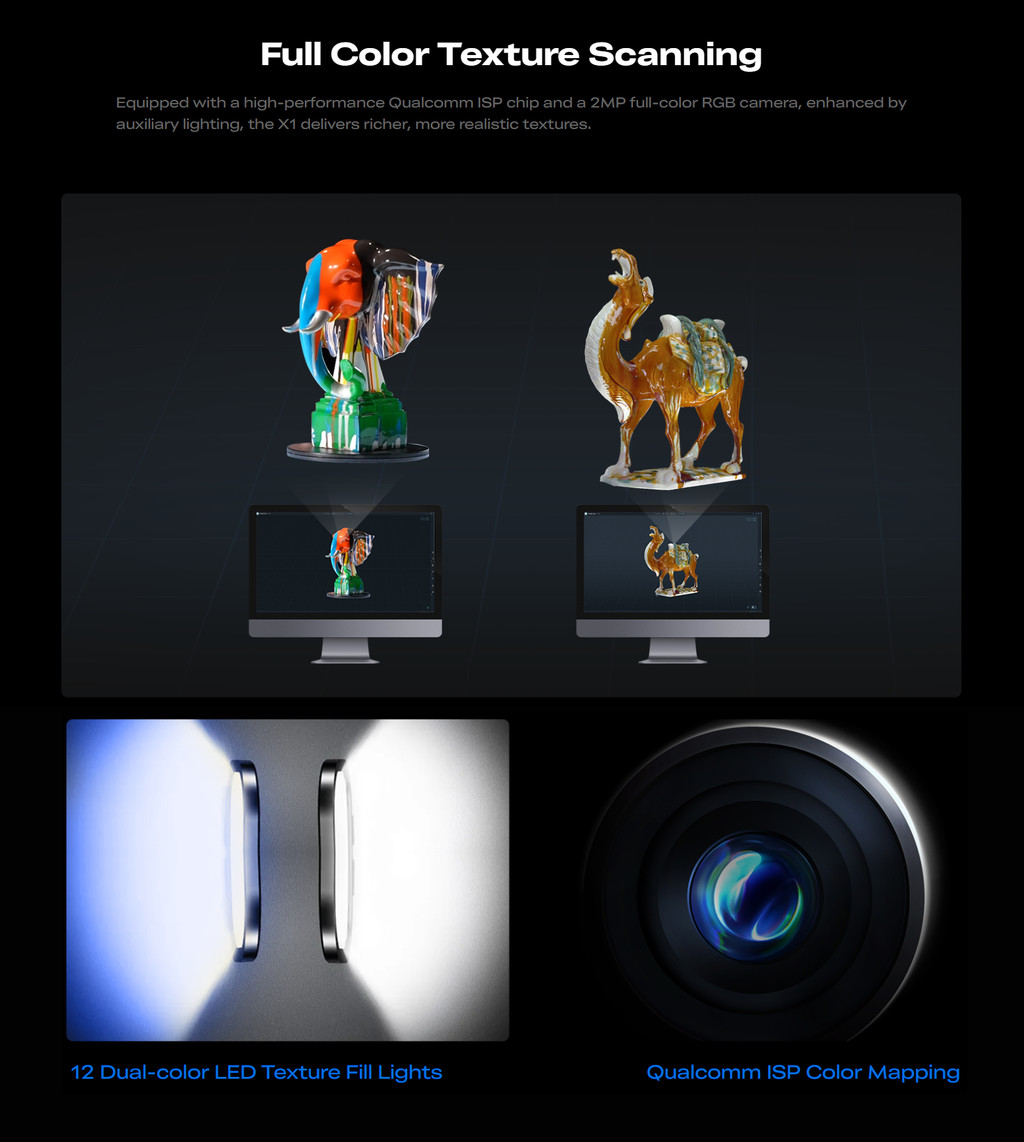

Full Color Texture Scanning

Equipped with a high-performance Qualcomm ISP chip and a 2MP full-color RGB camera, enhanced by
auxiliary lighting, the X1 delivers richer, more realistic textures.

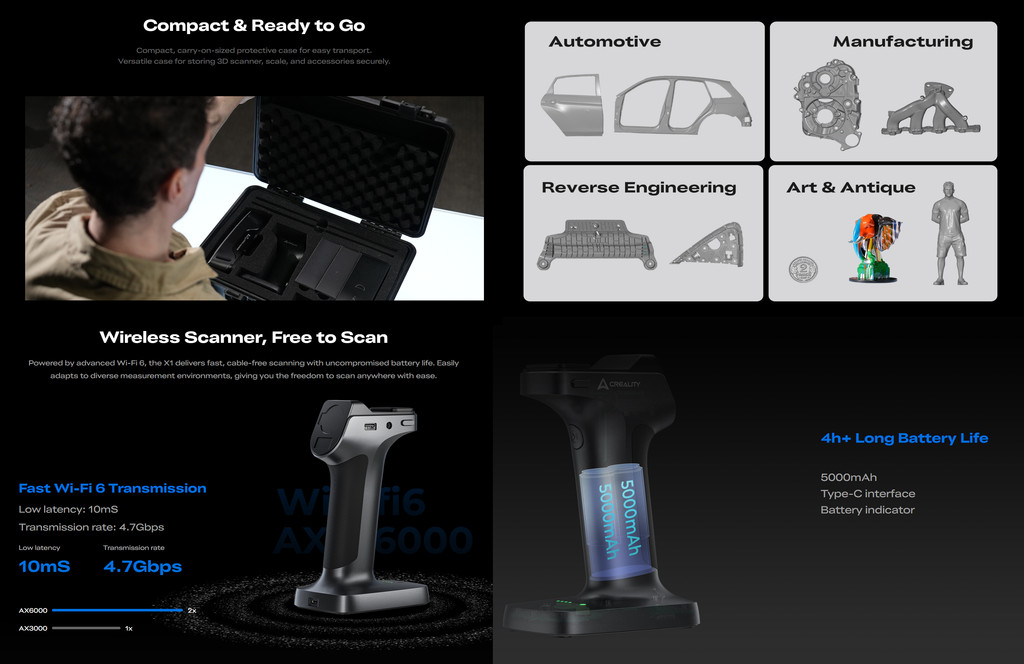

Versatile & Portable

Compact & Ready to Go

Compact, carry-on-sized protective case for easy transport. Versatile case for storing 3D scanner, scale, and accessories securely.

Stable & Shake-Free

Smart Stabilization for a Smoother Scan

Powered by an AI-driven temperature compensation algorithm and an efficient thermal management system, the Sermoon X1 maintains stable output even during prolonged sessions.Combined with One-Shot 3D imaging technology, it enhances tracking stability, reduces frame drops and stitching errors caused by shaking.

Versatile Support

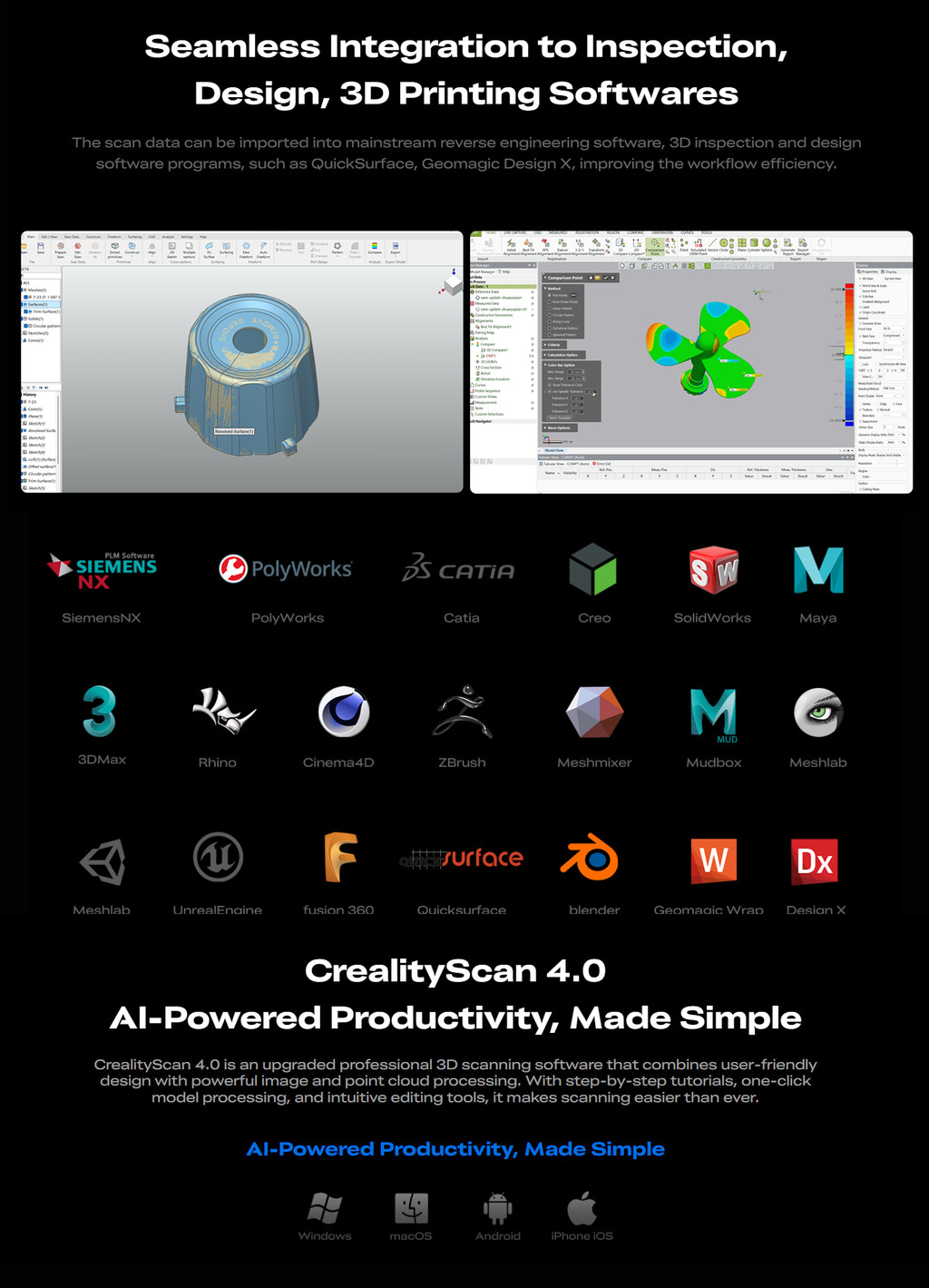

Seamless Integration to 3D Printing Softwares

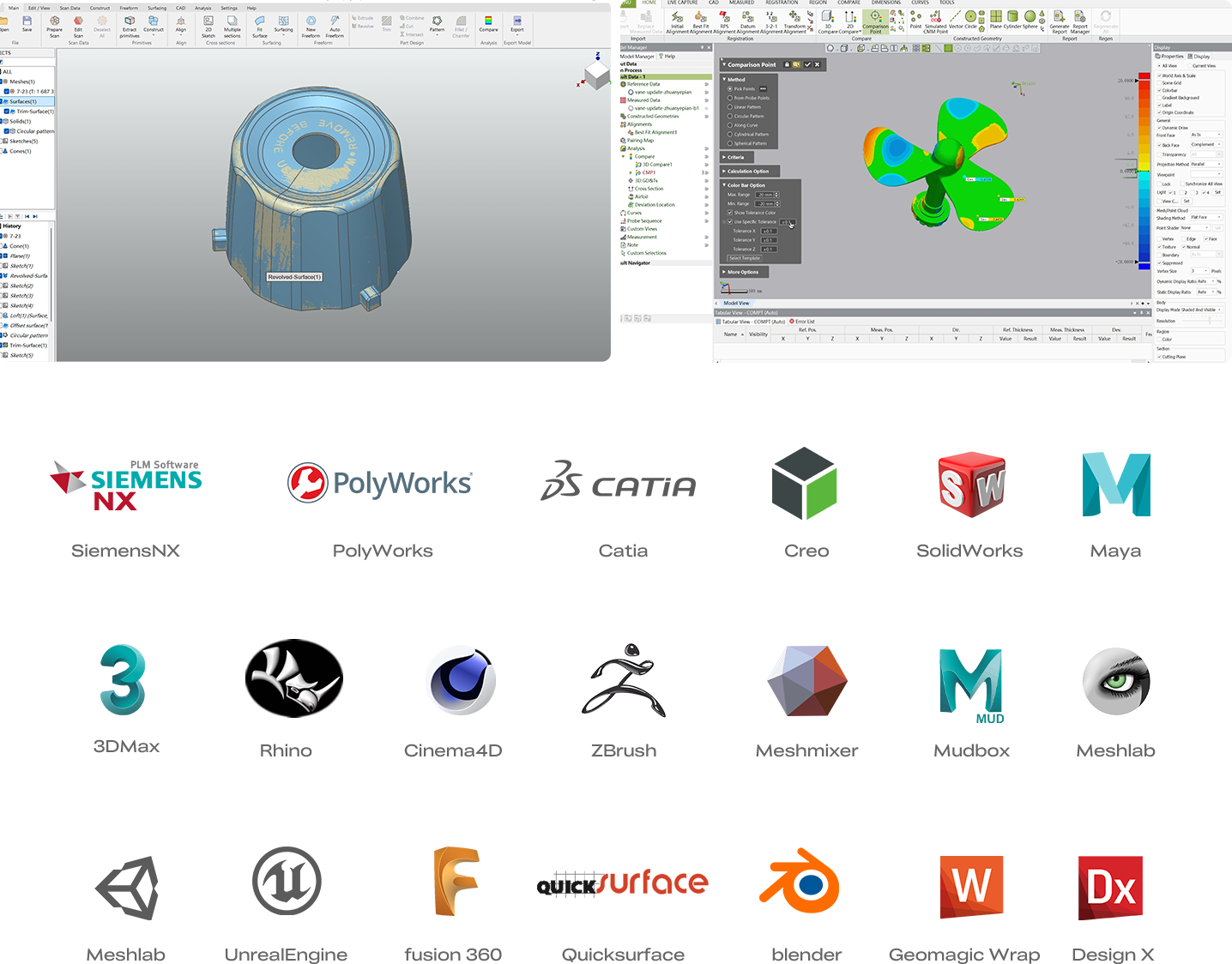

The scan data can be imported into mainstream reverse engineering software, 3D inspection and design software programs, such as QuickSurface, Geomagic Design X, improving the workflow efficiency.

CrealityScan 4.0

AI-Powered Productivity, Made Simple

CrealityScan 4.0 is an upgraded professional 3D scanning software that combines user-friendly design with powerful image and point cloud processing. With step-by-step tutorials, one-click model processing, and intuitive editing tools, it makes scanning easier than ever.

Faster

GPU acceleration enables real-time scanning up to 90 fps; laser line fusion is 2× more efficient

Faster

Easier

Stronger

Smarter

Specification	Creality Sermoon X1	Creality CR-Scan Raptor Pro	Metro Y Pro
Scanning Technology	Blue Laser + NIR Structured Light		Blue Laser Structured Light
Laser Configuration	1 / 7 / 34 laser lines + NIR	7 & 34 cross laser lines + NIR	Multiple blue laser lines
Accuracy	Up to 0.02 mm		Up to 0.05 mm
Volumetric Accuracy	0.02 mm + 0.04 mm/m		≈ 0.05 mm + 0.1 mm/m
Scanning Speed	Up to 90 FPS	Up to 60 FPS	Up to 30 FPS
Measurement Rate	Up to 7,000,000 pts/s	≈ 1,300,000 pts/s	≈ 1,000,000 pts/s
Minimum Scan Size	5 × 5 × 5 mm	10 × 10 × 10 mm	20 × 20 × 20 mm
Maximum Scan Size	Up to 4000 mm (with photogrammetry)	Large objects supported	Medium–large objects
Marker-Free Scanning	Yes (NIR mode)		Limited
Color Scanning	Supported		Optional / Limited
Wireless Scanning	Supported	Optional (Scan Bridge)	No
Device Weight	530 g	≈ 400 g	≈ 1 kg
Target Users	Industrial, reverse engineering, inspection	Professional prosumers, engineering	Entry–mid professional users
