Anycubic Photon Mono 4 Ultra – Advanced Mono LCD Printing for Stunning Results

(21 customer reviews)

Price range: RM1,399.00 through RM2,149.00

Product Features

  • 7″ 10K screen (9024×5120 resolution) with 17×17 µm pixel size
  • Advanced COB Light Source and Fresnel Lens
  • Intelligence Assisted Printing System
  • Faster Printing: 0.1mm at max. 120mm/h with High Speed Resin 2.0

Order Info

  • Order will be shipped out from our KL warehouse in 1-3 business days once being processed.
  • If you need Lalamove once purchased, WhatsApp to our phone for quick arrange delivery.
Accepted Payment Methods - Visa, Mastercard, American Express, PayPal, FPX, Atome
SKU: ANYCUBIC-MONO-4-ULTRA Categories: , Tag: Brand:

Anycubic Photon Mono 4 Ultra Overview

Precision 10K, Smart-Speed, Zero Guesswork.

Why Choose Anycubic Photon Mono 4 Ultra

10K Precision
Almost Detail-Perfect

Great Laser
Great Lens, Great Layer

There’s No Resin
to Print Slow

Intelligent Release
Algorithm

Intelligent
360°Self-Check

Activated Carbon
Air Purifier Compatible

10K Precision, Almost Detail-Perfect.

Photon Mono 4 Ultra boasts an impressive 105% increase in print precision compared to Mono 2. A 7-inch 10K screen with a resolution of 9024×5120, each pixel measures a mere 17×17μm on the XY axes. Using 8mm diameter T-type screw rod and precision guide rails, this enhanced capability allows for creating models with exceptional detail and dynamic richness

Advanced material capability

Advanced COB Light Source

The COB light source system combined with Fresnel lenses can reach the light angle within 3° ,ensuring no stray light interference on the 7” 10K monochrome. By the Light Uniformity Algorithm, the light uniformity rate reaches ≥90%, reducing dimensional errors in each printed layer and ensuring consistent printing

Great Laser, Great Lens, Great Layer

High Precision and Light Uniformity

New Generation of Release Film

Save 40% on print time

Advanced material capability

There’s No Resin to Print Slow.

  • 0.1mm Layer Height Test Standard
  • Standard Resin: Max. 80mm/h
  • High Speed Resin 2.0: Max. 120mm/h

Advanced material capability

Comprehensive Intelligent Detection

Photon Mono 4 resin printer boast 5 intelligent inspections, including Printer auto-inspection, Residual resin detection, Left over resin monitoring, Failed print detection and Intelligent Lifespan Management, these can reduce operational errors and increase printing efficiency.

Failed Print Monitoring

Resin Residue Monitoring

Resin Level Monitoring

Printer Monitoring

Activated Carbon Air Purifier Compatible.

The 18 mm high-density activated carbon filter, weighing 17 grams, is designed to efficiently capture and neutralize odor molecules produced during printing.

Advanced material capability

Explore More Together with Anycubic

  • Multi-Device Sync-up, Whether it’s the website, slicing software, or printer, simply log in with the same account to easily achieve seamless cross-platform connectivity.
  • Cloud Printing, Download the Anycubic App to directly access the Makeronline online model library on your smart phone, initiating print tasks through the cloud. Additionally, a cloud printing parameter library is available, recommending optimal print parameters based on various resins.

The Anycubic APP

The Latest Anycubic Photon WorkShop

Makeronline Creativity Community

Detailed Features and Specification

Photon Mono 4 UltraPhoton Mono 2Photon Mono M3
Build Volume153.4 × 87 × 165 mm165 × 89 × 143 mm163.9 × 102.4 × 180 mm
Printing Speed≤ 80 mm/h (SR), ≤ 120 mm/h (HS)≤ 50 mm/hUp to 50 mm/h
Layer Thickness0.02–0.15 mm0.01–0.15 mm0.01 mm
XY Resolution17 µm~34 µm~23 µm (4K+ screen)
Z‑Axis Accuracy0.02 mm0.01mmNot specified
LCD Screen7″ 10K Mono6.6″ 4K+ Mono7.6″ 4K+ Mono
Light SourceCOB + Fresnel + uniformity algorithm (≥ 90%)Parallel LightTurbo matrixLightTurbo matrix (84 LEDs)
Machine Dimensions231 × 236 × 430 mm390 × 229 × 235 mm269 × 256 × 425 mm
Weight5 kg4 kg~7 kg
Leveling4‑point manual
ConnectivityUSB, Wi‑Fi, LAN (pending)USB onlyUSB‑A 2.0, Wi‑Fi
Operating Screen4.3″ TFT touch2.8″ TFT touch4.3″ TFT touch
Release FilmACFFEPFEP
Air PurifierUSB-poweredOptionalNot included
Slicing SoftwarePhoton Workshop
Other FeaturesUniformity algorithm, intelligent assisted printingLaser‑engraved plateCheckerboard build plate, anti-scratch film

What’s in the box

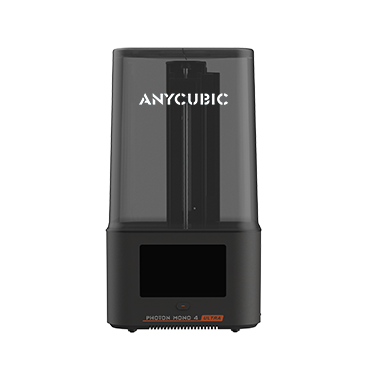

Photon Mono 4 Ultra

Photon Mono 4 Ultra

Print Platform * 1

Print Platform * 1

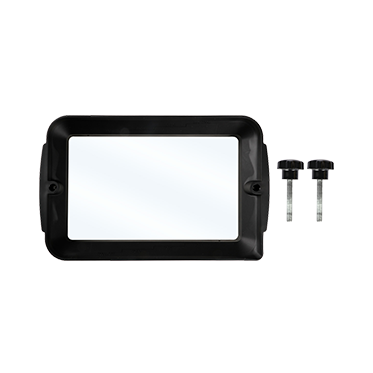

Resin Vat * 1

Resin Vat * 1

Manual * 1

Manual * 1

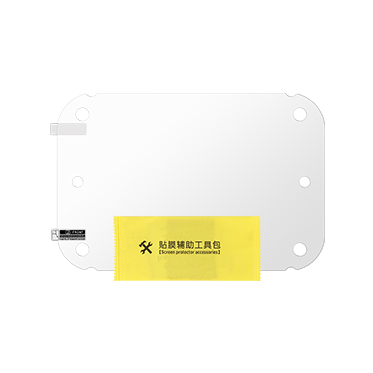

Sreen Protector Kit

Sreen Protector Kit

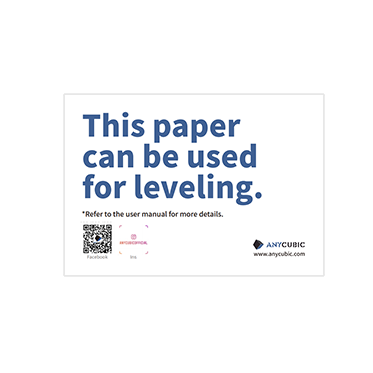

Leveling paper

Leveling paper

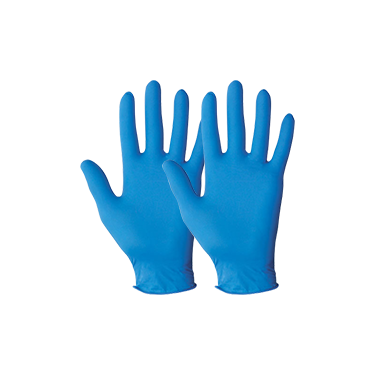

Glove

Glove

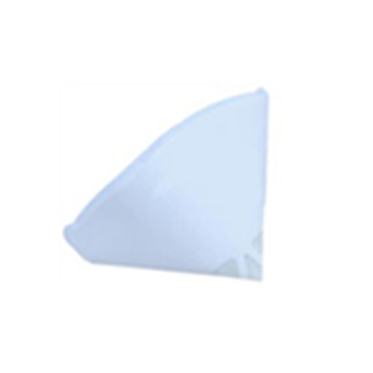

Funnels

Funnels

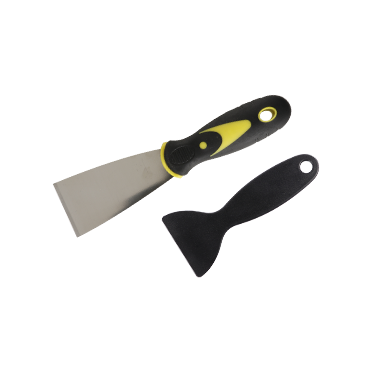

Scrapers

Scrapers

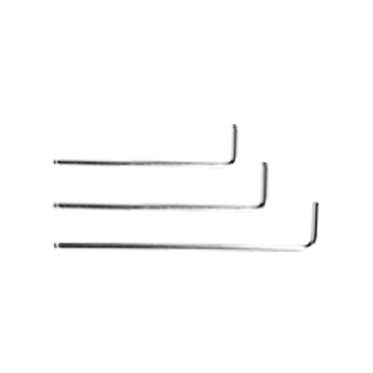

Hex Key Set

Hex Key Set

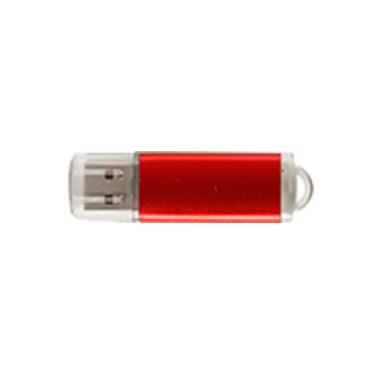

USB Drive

USB Drive

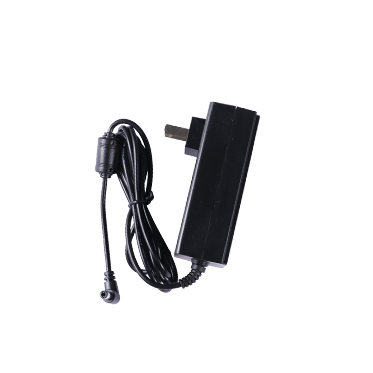

Power Cord

Power Cord

Weight15.00 kg
Dimensions30.00 × 30.00 × 90.00 cm
Variation

Mono 4 Ultra Only, + Free Gift, + Wash & Cure 3, + Wash & Cure 3 Plus, + Mercury Plus 3
