Bambu Lab H2S – Precision Printing with Massive Build Volume

Price range: RM5,999.00 through RM9,999.00

Product Features

Large 340 × 320 × 340 mm³ build volume
Up to 30% faster printing vs X1 Carbon
350 °C nozzle & 65 °C actively heated chamber
23 sensors + 3 cameras for intelligent monitoring
Optional 10W laser engraving & digital cutting
Rigid die-cast aluminum frame
Low-noise operation (40–50 dB)

Variation

Clear

Order Info

Order will be shipped out from our KL warehouse in 1-3 business days once being processed.
If you need Lalamove once purchased, WhatsApp to our phone for quick arrange delivery.

Accepted Payment Methods - Visa, Mastercard, American Express, PayPal, FPX, Atome

SKU: BAMBULAB-H2S Categories: 3D Printers, FDM 3D Printers, Industrial Printer Tag: Bambu Lab

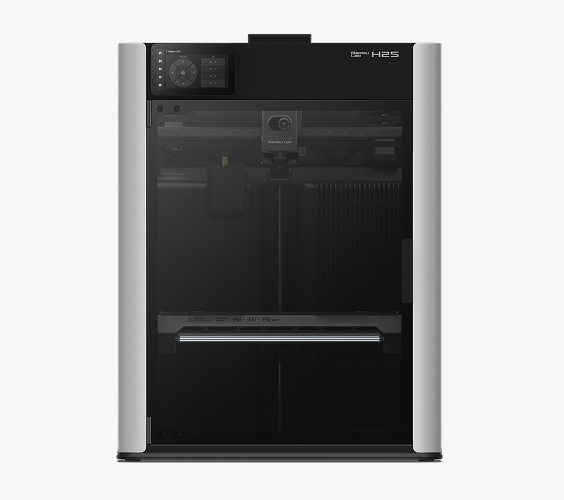

Bambu Lab H2S Overview

Powerful, Precise, and Next-Generation — The Bambu Lab H2S is engineered for creators who demand speed, accuracy, and reliability.

340×320×340mm³
Large Volume

50 μm
Motion Accuracy

Up to 30%
Faster Print Speed

23 Sensors
3 Cameras

AI Checklist

65 °C
Active Heated Chamber

Hardened Steel
Extruder and Nozzle

350 ℃

Quiet by Design

Active Motor
Noise Canceling

King-size
Work Zone

340mm×320mm×340mm

Chamber Temperature

65 ℃

Solving Mechanical Deviations

Mechanical wear and variances over time are inevitable.
With the Vision Encoder, the H2S achieves distance-independent motion accuracy under 50 μm, thinner than a human hair.
During calibration, it automatically compensates for mechanical drift, ensuring consistent precision and peak performance over time.

One Print. Perfect Fit.

Post-print assembly has never been easier.

Bambu Lab’s Auto Hole/Contour Compensation minimizes printing tolerances, delivering machine-shop-level precision for hole dimensions.
Design fit-critical parts with confidence—integrate shafts, bearings, and fasteners without trial and error.

PA-CF

Super rigid but abrasive
carbon-fiber filament

Tough & self-lubricating

High-temp resistance
but prone to warping

Polymers

Multi-material projects
in one print

Ready for Engineering Filaments

Build large, high-performance parts that are as functional as they are strong.

Featuring a 350 °C hotend and a 65 °C actively heated chamber, it supports the entire Bambu filament lineup—from PLA and PETG to PC and PPA
With closed-loop fan control and precise thermal management, the H2S minimizes warping and deformation while improving layer adhesion.

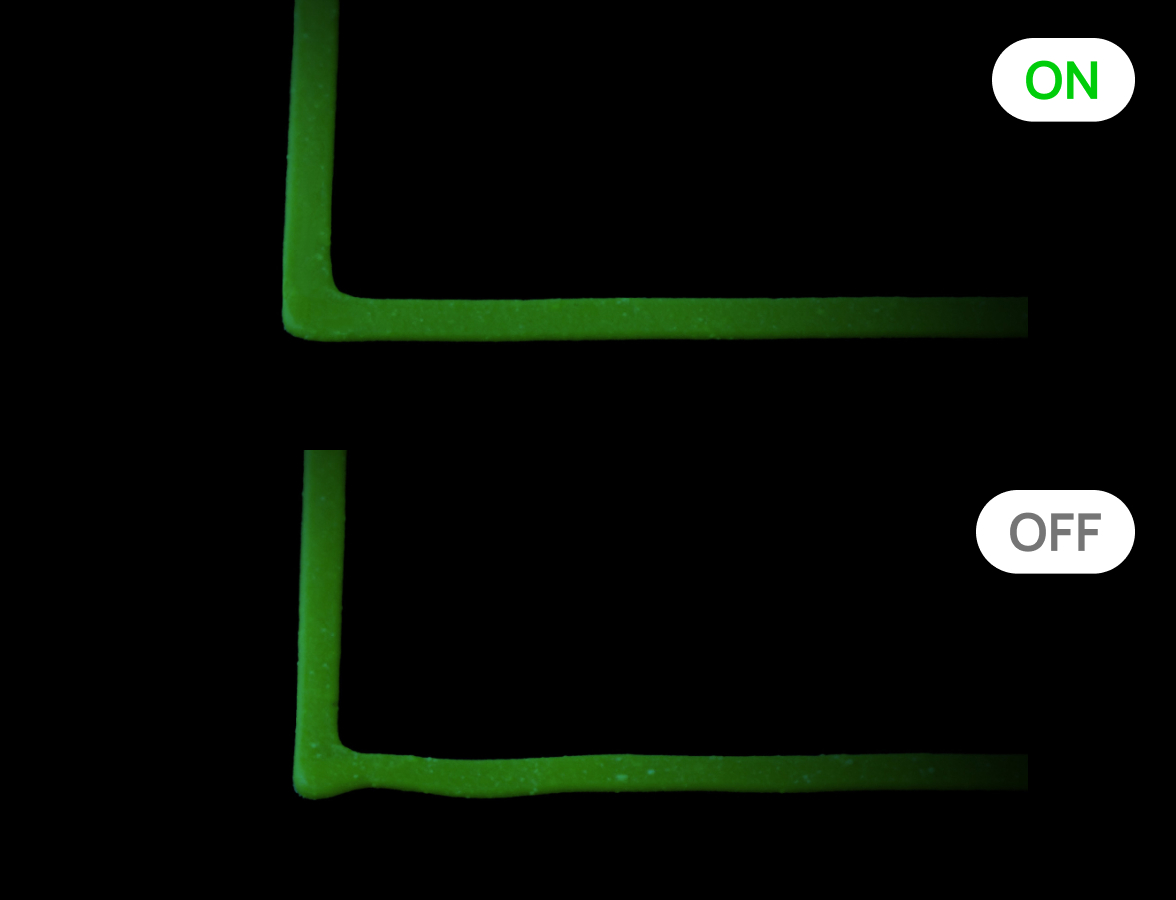

Even Surfaces, Crisp Edges

H2S uses both the sensing capability of its servo motor on the extruder and the high-resolution eddy current sensors on the nozzle to precisely control extrusion by measuring nozzle pressure and calibrating PA parameters for each filament, improving surface smoothness and edge sharpness.

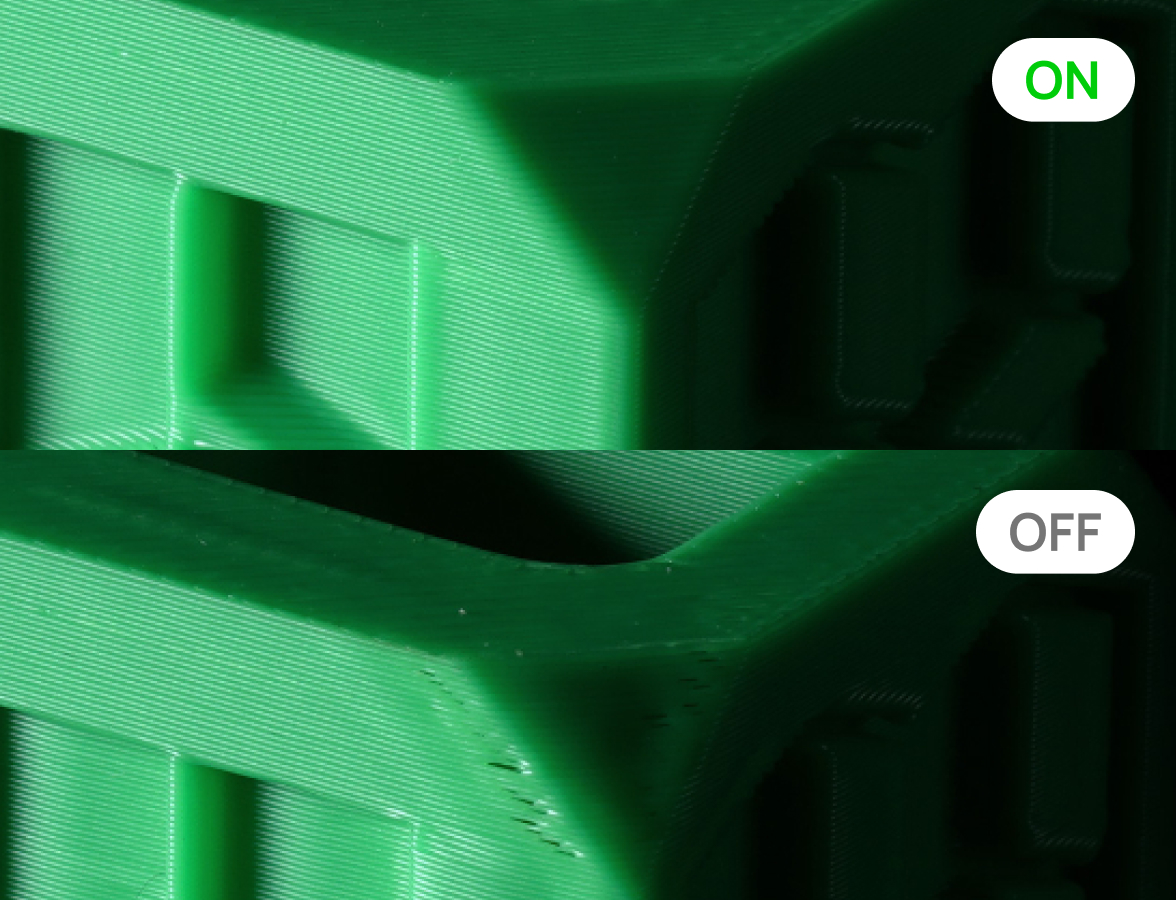

Precision in Motion

Active Vibration Compensation neutralizes micro-vibrations and resonance in real time, enabling premium print quality at higher speeds.

Pre-Flight Checklist by AI

Prior to each operational cycle, the H2S vision system initiates a comprehensive pre-flight checklist:

Chamber Integrity Scan – Detects debris across the entire print surface.
Hardware Configuration Audit – Instantly identifies build plate properties.

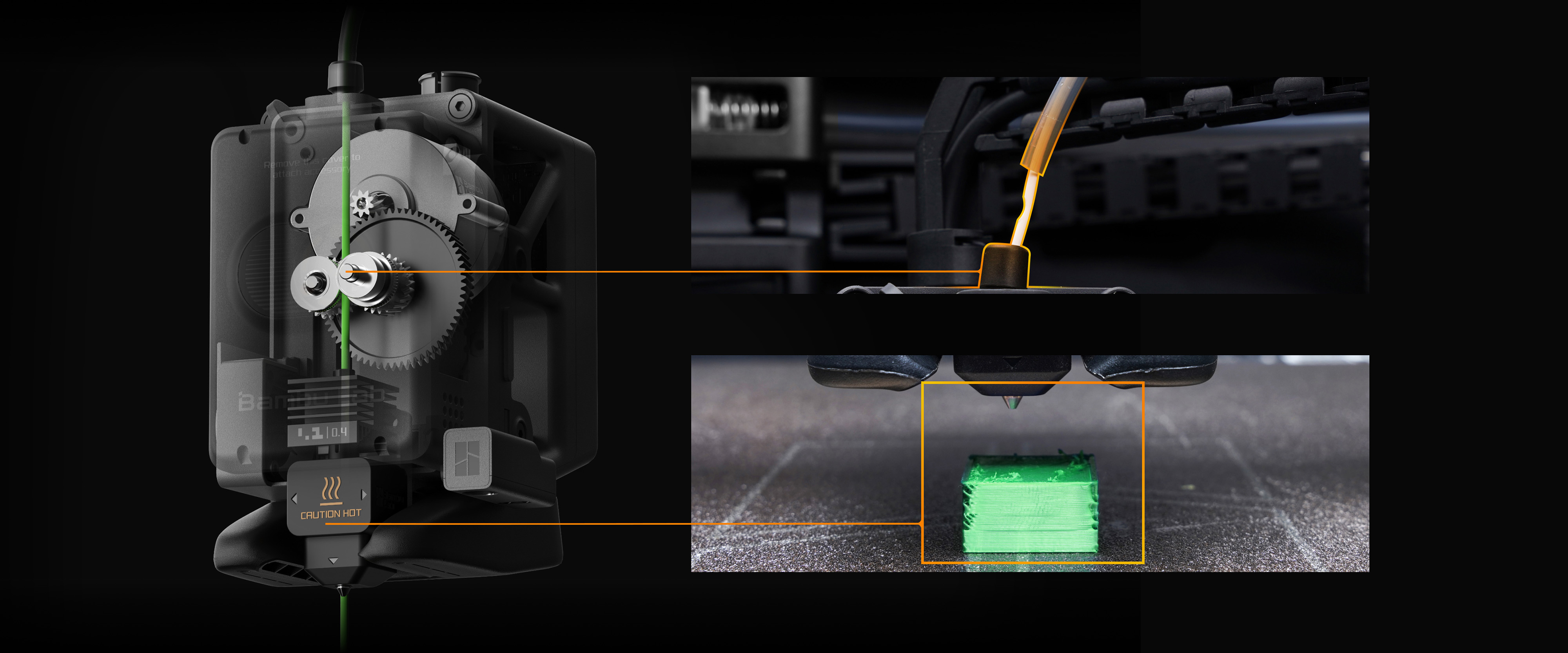

Closed-Loop Feedback, Real-Time Control

Bambu Lab’s proprietary PMSM servo system stabilizes extrusion and actively detects grinding or clogs in real time.

Maximum Volume. Maximum Productivity.

With a build volume of 340×320×340 mm³, the H2S offers the largest print space among all Bambu Lab printers. Your Vision. Fully Realized in One Print.

23 Sensors + 3 Cameras

Each Potential Risk Has Its Own Detector.

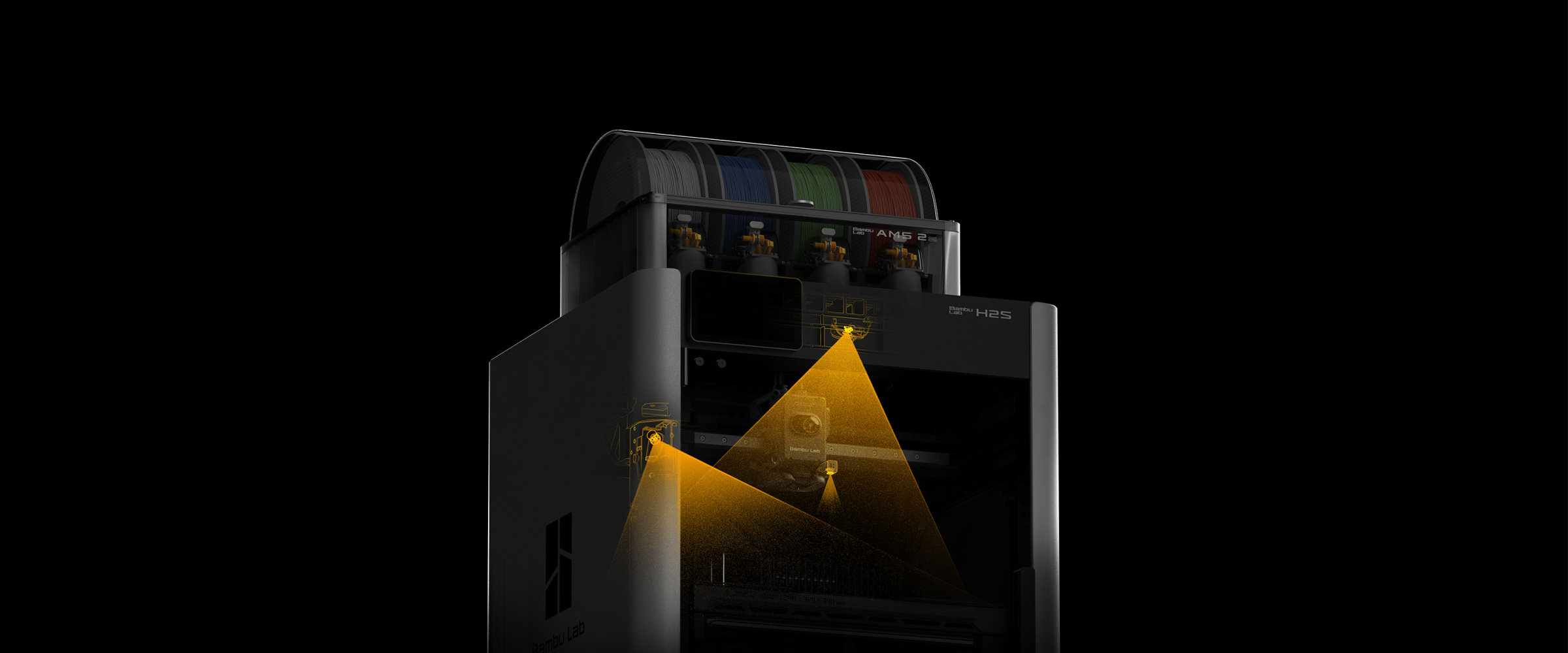

Vision System

With AI-driven real-time monitoring, the vision system detects clumping, spaghetti and purge chute jamming as they happen, helping prevent failed prints before they start. This same vision system powers advanced features like Live Spatial Alignment, allowing precise laser and cutting calibration, and Vision Encoder technology, which enhances positional accuracy.

Vision
System

Feeding

Thermal Control

Safety

Features Table

Detailed Features and Specification

	H2S	H2D	X1 E	X1 Carbon (X1C)	P1 S
Build Volume (W×D×H)	340 × 320 × 340 mm³	325 × 320 × 325 mm³	256 × 256 × 256 mm³
Nozzle (included)	0.4 mm Hardened Steel				0.4 mm Stainless Steel
Max Nozzle Temp	350 ℃		320 ℃	300 ℃
Micro LiDAR	Yes				No
AI Failure Detection	Yes				No
Chamber Camera	1080 p			1080 p (timelapse)	720 p, 0.5 fps
Body Frame	Full-Metal Frame		Carbon Fiber Frame		Plastic & Glass
Filament Diameter	1.75 mm
Supported Filament	PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, PPS, CF/GF variants			PLA, PETG, TPU, ABS, ASA, PC, PA, CF/GF-polymer	PLA, PETG, TPU, PVA, ABS, ASA (PA/PC capable)
Max Bed Temp	120 ℃		110 ℃ @ 220 V / 120 ℃ @ 110 V		100 ℃
Max Toolhead Speed	1000 mm/s		500 mm/s
Max Acceleration	20 m/s²
Physical Dimensions	492 × 514 × 626 mm³ 30 kg	492 × 514 × 626 mm³ 31 kg	389 × 389 × 457 mm³ 16 kg	389 × 389 × 457 mm³ 14.1 kg	389 × 389 × 458 mm³ 12.9 kg
Max Power Draw	2050 W @ 220 V 1170 W @ 110 V	2200 W @ 220 V 1320 W @ 110 V	1400 W @ 220 V 750 W @ 110 V	1000 W @ 220 V 350 W @ 110 V

Package Includes

H2S Only

Bambu Lab H2S

Gold Textured Bed PEI

Spool Holder

Accessory Box

Safety Key

H2S AMS Combo

Bambu Lab H2S

AMS 2 Pro

Gold Textured Bed PEI

Spool Holder

Accessory Box

Safety Key

H2S Laser Full Combo

Bambu Lab H2S Laser Edition	AMS 2 Pro	Gold Textured Bed PEI	Spool Holder
Laser Module 10W	Cutting Module (+ Pen Holder)	Laser Platform	Cutting Platform
Ventilation Pipe	Laser & Cutting Materials	Accessory Box	Safety Key
Emergency Stop Button
