1) Default PLA Filament, adjust printing temperature to 190C+- for better printing quality.
2) For high speed print, optimal temperature is 190C+, if nozzle wear out, is not covered under manufacturing defect warranty.
3) Use USB adapter with 5V 2A and above if can’t power up. Not all USB can be powered due to low ampere.
** iPhone Chargers usually are not supported.
4) While heating, don’t touch the nozzle with your hand, may burn and hurt your finger & children.
3D Print Pen is a perfect gift for kids, helps them to inspire creativity, design, planning, building, and spatial understanding. It has an LCD screen and works by heating up the plastic filament and pushing it through the nozzle at the end of the pen, similar to a hot glue gun.
The tip gets very hot but the body of the pen stays cool. ABS plastic may cause some smoke and a mild odor but cools faster than PLA. PLA is biodegradable and completely safe in enclosed environments. You can even change filament to different colors while you draw!

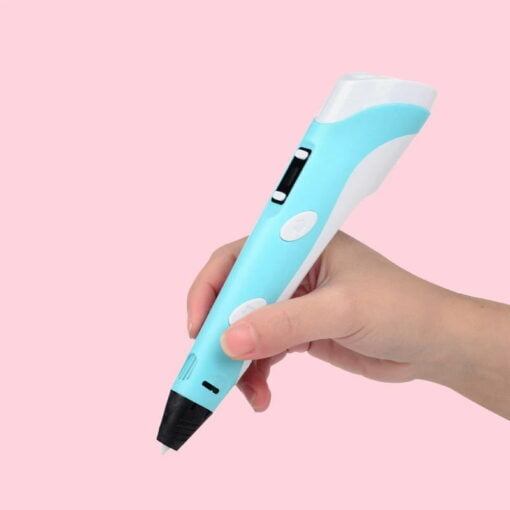

Just hold the pen and draw your shape on paper, let it dry, and peel it off. Or you can layer your drawings to make them 3D in as many colors as you want!
Printing Technology: FDM/FFF (Fused Deposition Modeling/Fused Filament Fabrication)
Build Volume (LWH): Unlimited! You can draw in thin air!
Nozzle Size: 700 microns (0.7mm)
Layer Resolution: 300-600 microns
Filament Diameter: 1.75mm
Filament Compatibility: PLA, ABS , PCL ( Suggested using PLA )
PLA = 180deg+- printing, no gas poison ,suitable for indoor and cheaper price.
ABS = 220deg+- printing, high strength ,not suitable for indoor and kids.
PCL = 60deg+- melting point, low melting point, suitable for indoor and kids, but price expensive.
Mechanical and Electrical
Power: 5V, 2A ( Make sure your Power Bank / Laptop / Charger can provide 2A and above)
Print System: 3D Doodling and Creating in Thin Air
Extruder: Variable Speed Control
Temperature Range: 160-230℃

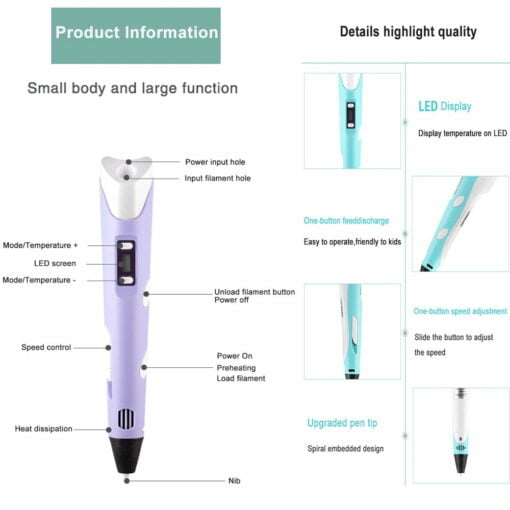

Interface: LCD Screen for Temperature and Switching Modes
Item Included with 3D Pen Set Purchase :
3D Printing Pen – (Choose Colour in Option)
USB Power Cable *1
10m of PLA Filament (Random color)
3D Pen Holder *1
User Manual *1
