Anycubic Photon Mono 4 Ultra Overview
Precision 10K, Smart-Speed, Zero Guesswork.
RM1,399.00 – RM2,149.00
Product Features
Precision 10K, Smart-Speed, Zero Guesswork.

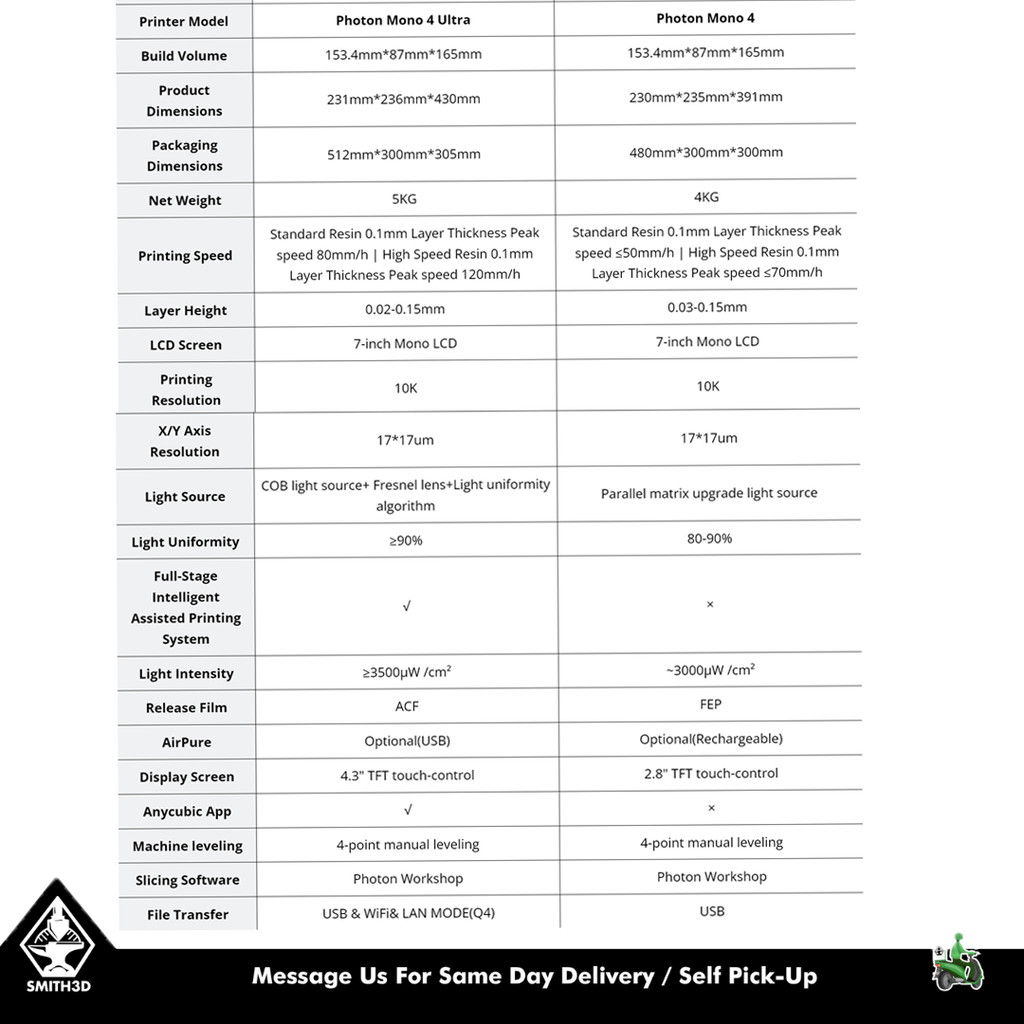

Photon Mono 4 Ultra | Photon Mono 2 | Photon Mono M3 | |

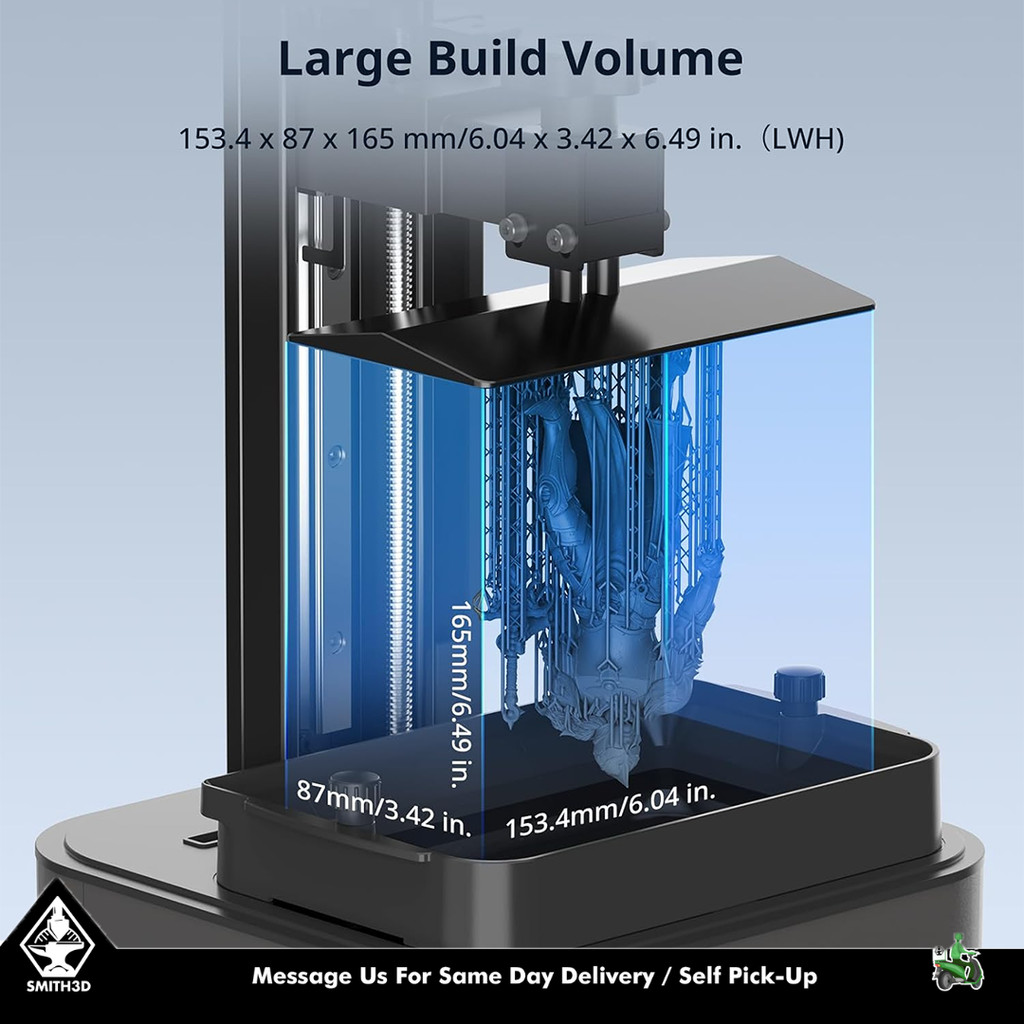

Build Volume | 153.4 × 87 × 165 mm | 165 × 89 × 143 mm | 163.9 × 102.4 × 180 mm |

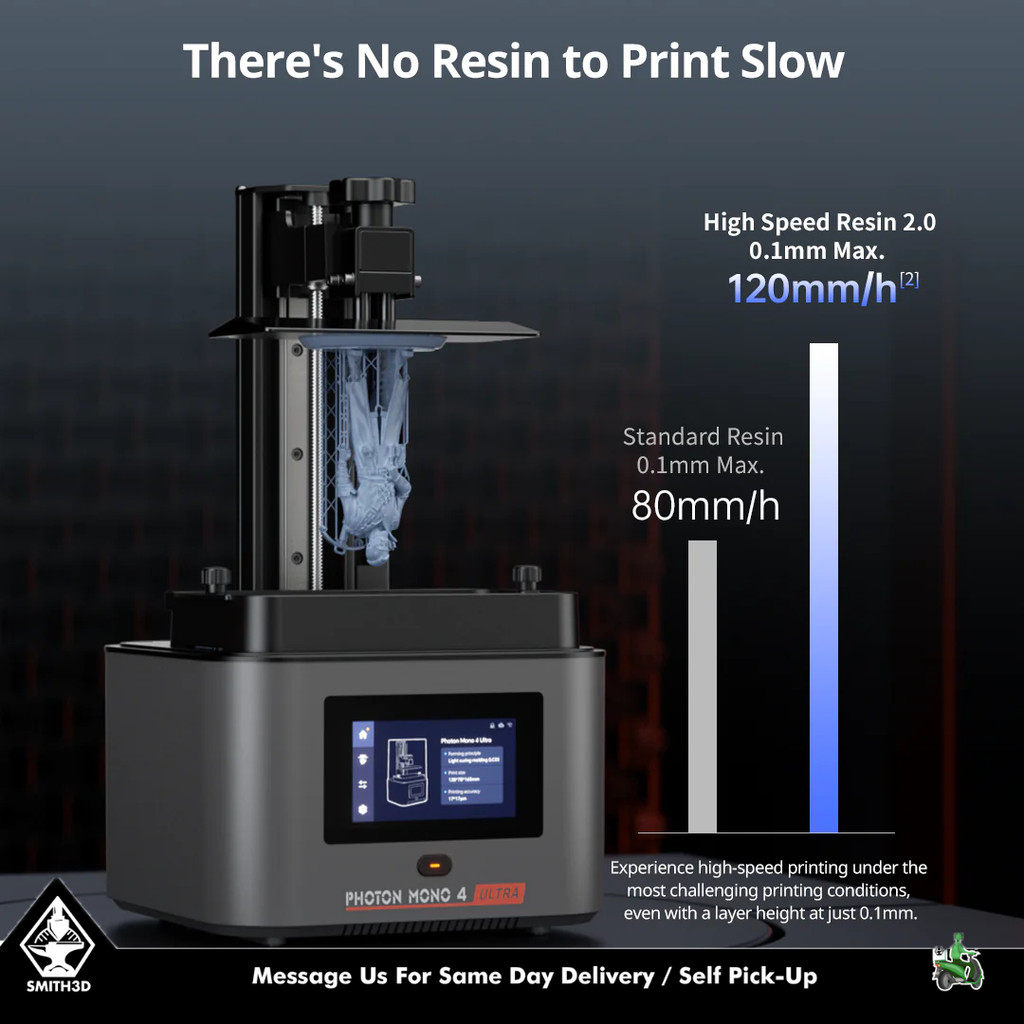

Printing Speed | ≤ 80 mm/h (SR), ≤ 120 mm/h (HS) | ≤ 50 mm/h | Up to 50 mm/h |
Layer Thickness | 0.02–0.15 mm | 0.01–0.15 mm | 0.01 mm |
XY Resolution | 17 µm | ~34 µm | ~23 µm (4K+ screen) |
Z‑Axis Accuracy | 0.02 mm | 0.01mm | Not specified |
LCD Screen | 7″ 10K Mono | 6.6″ 4K+ Mono | 7.6″ 4K+ Mono |

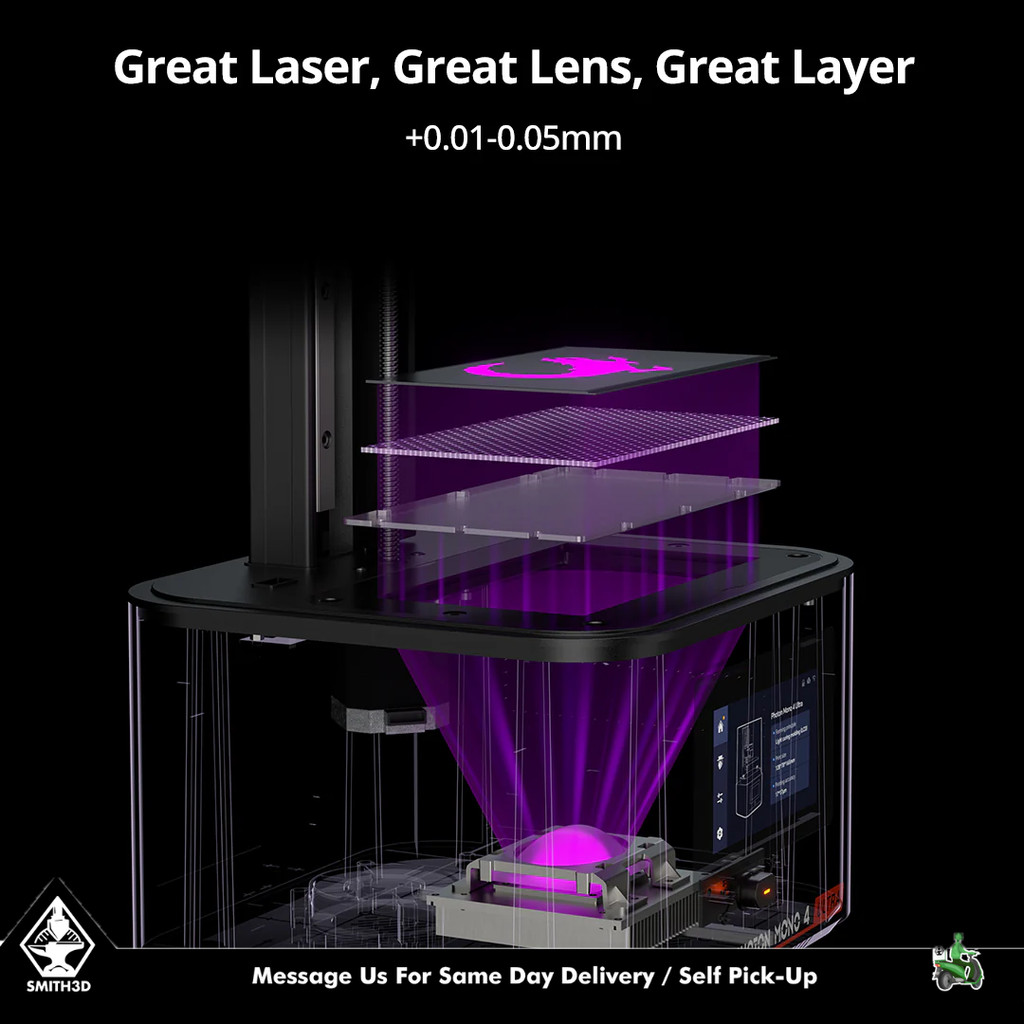

Light Source | COB + Fresnel + uniformity algorithm (≥ 90%) | Parallel LightTurbo matrix | LightTurbo matrix (84 LEDs) |
Machine Dimensions | 231 × 236 × 430 mm | 390 × 229 × 235 mm | 269 × 256 × 425 mm |
Weight | 5 kg | 4 kg | ~7 kg |
Leveling | 4‑point manual | ||
Connectivity | USB, Wi‑Fi, LAN (pending) | USB only | USB‑A 2.0, Wi‑Fi |

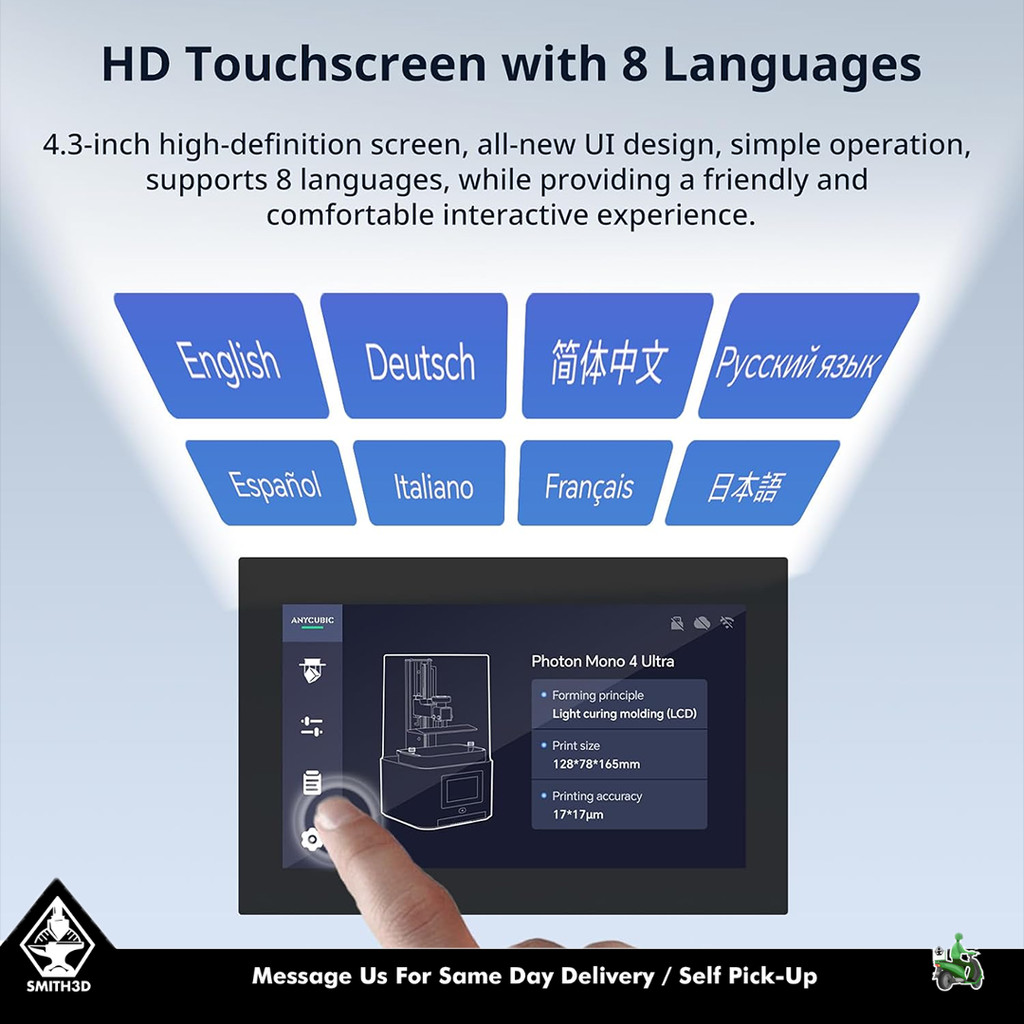

Operating Screen | 4.3″ TFT touch | 2.8″ TFT touch | 4.3″ TFT touch |
Release Film | ACF | FEP | FEP |
Air Purifier | USB-powered | Optional | Not included |
Slicing Software | Photon Workshop | ||
Other Features | Uniformity algorithm, intelligent assisted printing | Laser‑engraved plate | Checkerboard build plate, anti-scratch film |
Weight | 15.00 kg |
---|---|
Dimensions | 30.00 × 30.00 × 90.00 cm |
Variation | Mono 4 Ultra Only, + Free Gift, + Wash & Cure 3, + Wash & Cure 3 Plus, + Mercury Plus 3 |
